CNC Milling Services

What Is CNC Milling Machining?

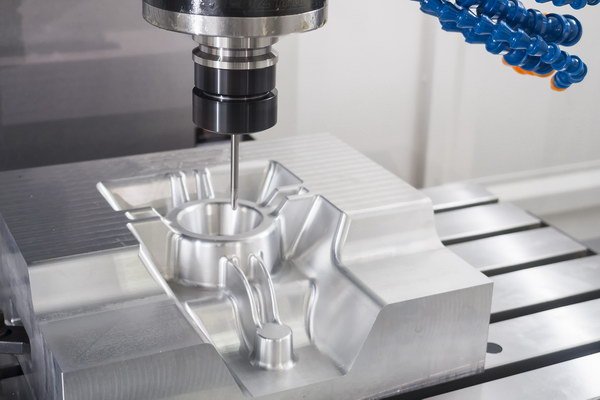

CNC milling is a subtractive manufacturing process in which rotating cutting tools remove material from a workpiece to produce parts with precise geometries, tight tolerances, and controlled surface finishes. The workpiece is secured on the machine table while multi-axis tool paths, programmed from CAD/CAM data, shape features such as pockets, slots, contours, holes, and complex 3D surfaces.

When Is CNC Milling the Right Choice?

CNC milling is ideal when your part design includes prismatic shapes, cavities, flat or contoured surfaces, angled features, or multi-sided machining requirements. It is commonly used for:

• Prototyping and first-article production
• Low-to-high volume manufacturing of metal and plastic components
• Parts requiring tight dimensional tolerances (down to +/-0.003 mm)
• Components with complex geometries that demand multi-axis tool access
• Large structural parts that need rigid, high-travel machining platforms

Why Buyers Choose XCM CNC for Milling?

Buyers and sourcing managers choose XCM CNC as their china cnc milling service partner because of our combination of certified quality, equipment depth, and engineering responsiveness. Our facility holds ISO 9001:2015, ISO 13485:2017, IATF 16949:2016, and GJB9001C certifications, giving you auditable quality assurance for medical, automotive, defense, and general industrial applications. We work directly with your engineering team to optimize tooling strategies, fixturing, and machining sequences before production begins.

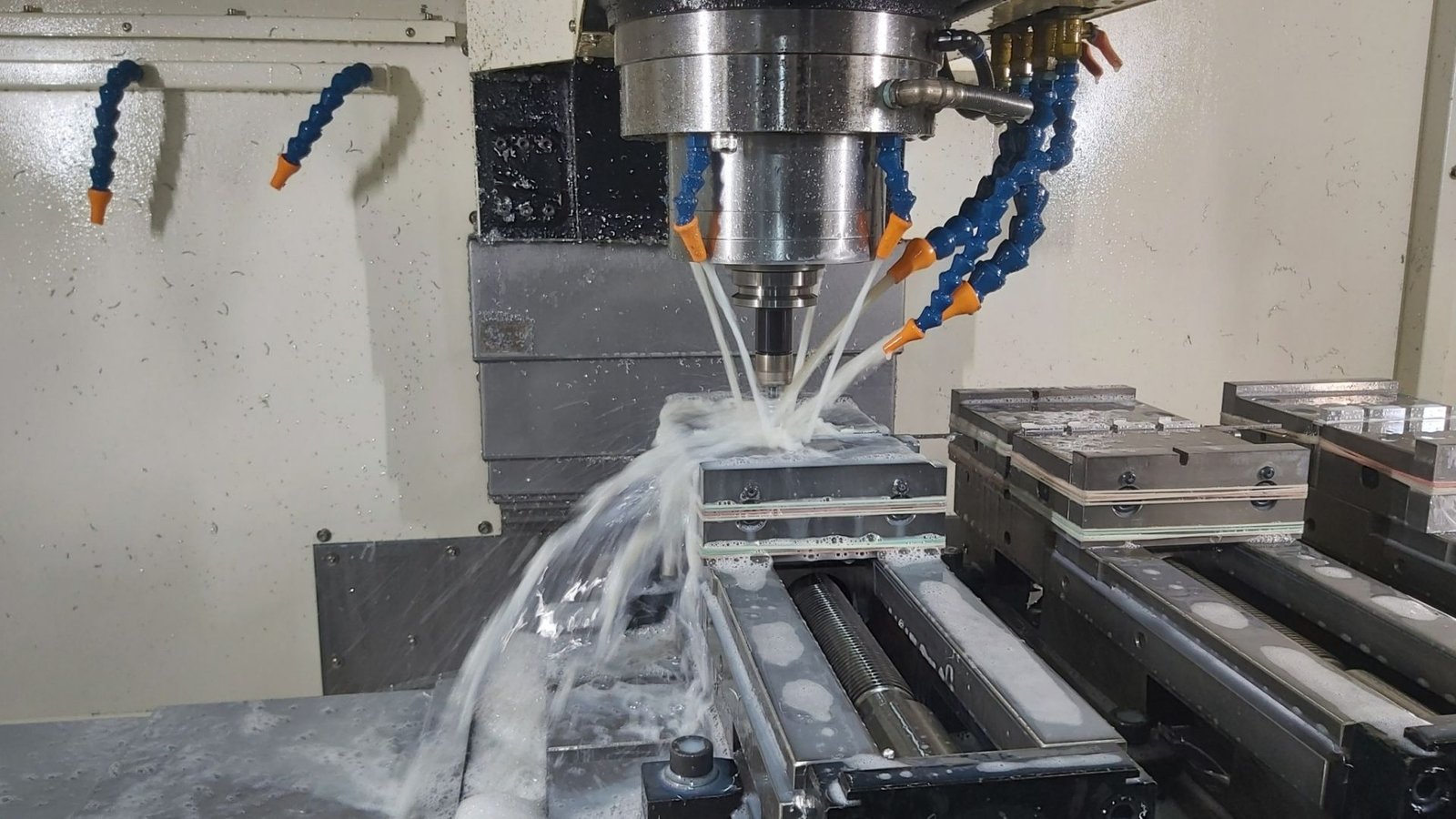

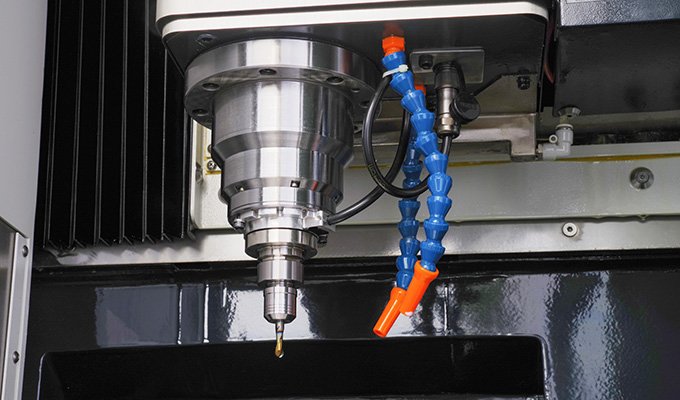

CNC Milling Equipment and Process Strengths

XCM CNC operates a diverse fleet of CNC milling and machining center platforms selected for accuracy, rigidity, and versatility:

• DMG 80mono: High-precision milling for complex, tight-tolerance components
• Mazak I-100S: Versatile machining center for medium-complexity production parts

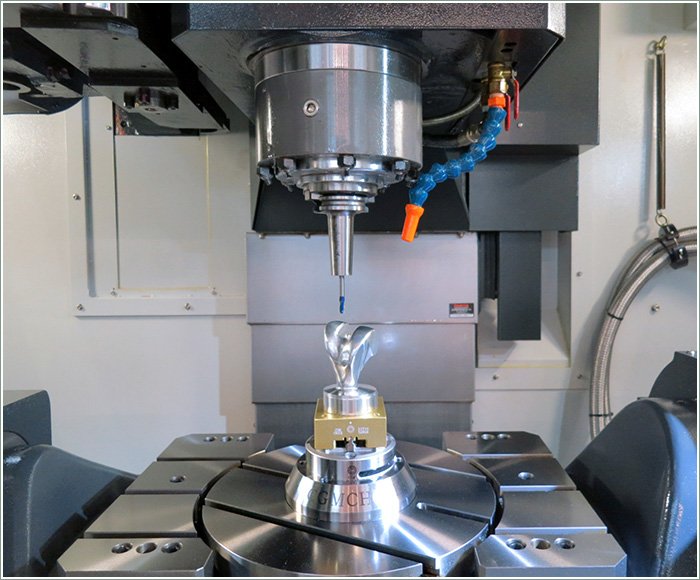

• Matsuura MX-520: 5-axis simultaneous milling capability for intricate 3D geometries, undercuts, and compound-angle features
• Brother machining centers: High-speed milling for smaller precision parts and higher-volume runs
• Taichung and Qiaofeng machining centers: Heavy-duty platforms for large cnc milling services, with the Qiao Feng CNC 3016-4A offering a maximum working travel of 3000 x 1600 x 1400 mm, enabling machining of large parts up to approximately 2600 mm in length depending on fixturing and setup

Geometry and Complexity Handling

Our milling operations cover a wide range of part complexity:

• 3-axis milling for prismatic parts, plates, brackets, and simple enclosures
• 4-axis and 5-axis milling for impellers, turbine components, compound-contour housings, and multi-face machining in a single setup
• Deep-pocket and thin-wall machining for cavities, housings, and enclosures
• Multi-feature parts requiring coordinated drilling, tapping, boring, and contouring in one program

Scalability

XCM CNC supports both prototype quantities and volume production. With Jingshang 80 automatic lathes complementing our milling centers, we can manage combined turning-and-milling workflows under one roof, reducing lead time and simplifying your supply chain as a cnc milling parts factory.

CNC Milling Metal Materials

XCM CNC machines a wide range of metal materials for automotive, aerospace, medical, and industrial applications. Common CNC milling metal materials include:

• Aluminum alloys: 6061, 6063, 7075, 2024, 5052, etc.
• Steels: 304/316 stainless steel, 17-4PH, 4140, 1045, tool steels (such as D2, H13), etc.
• Titanium alloys: Ti-6Al-4V (Grade 5), Ti-6Al-4V ELI (Grade 23)
• Copper and copper alloys: pure copper, brass (C36000), bronze (C93200)
• Other specialty metals: Inconel 718, Hastelloy, nickel-based alloys, etc.

CNC Milling Plastic Materials

For applications requiring lightweight structures, chemical resistance, or electrical insulation, we provide CNC milling services for engineering-grade plastic materials:

• Engineering plastics: POM (Delrin), PEEK, Nylon (PA6/PA66), PTFE, UHMWPE, Polycarbonate (PC), ABS, Acrylic (PMMA), PVC, PPS, PVDF

Surface Finishing & Post-Processing

We offer a variety of surface finishing and post-processing options, including anodizing (clear/black/hard anodizing), powder coating, electroplating (nickel/chrome/zinc), passivation, stainless steel pickling, sandblasting, brushing, polishing (mirror/precision polishing), black oxide, laser marking, and more.

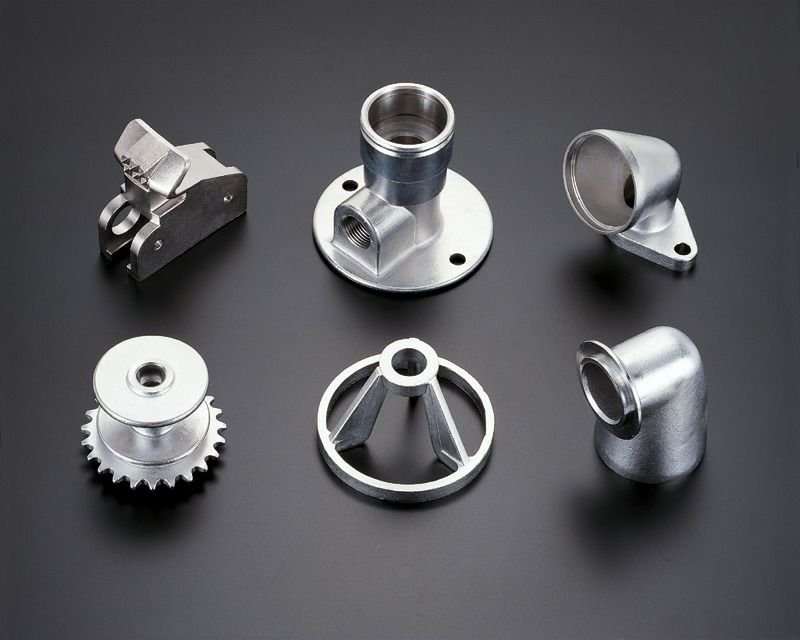

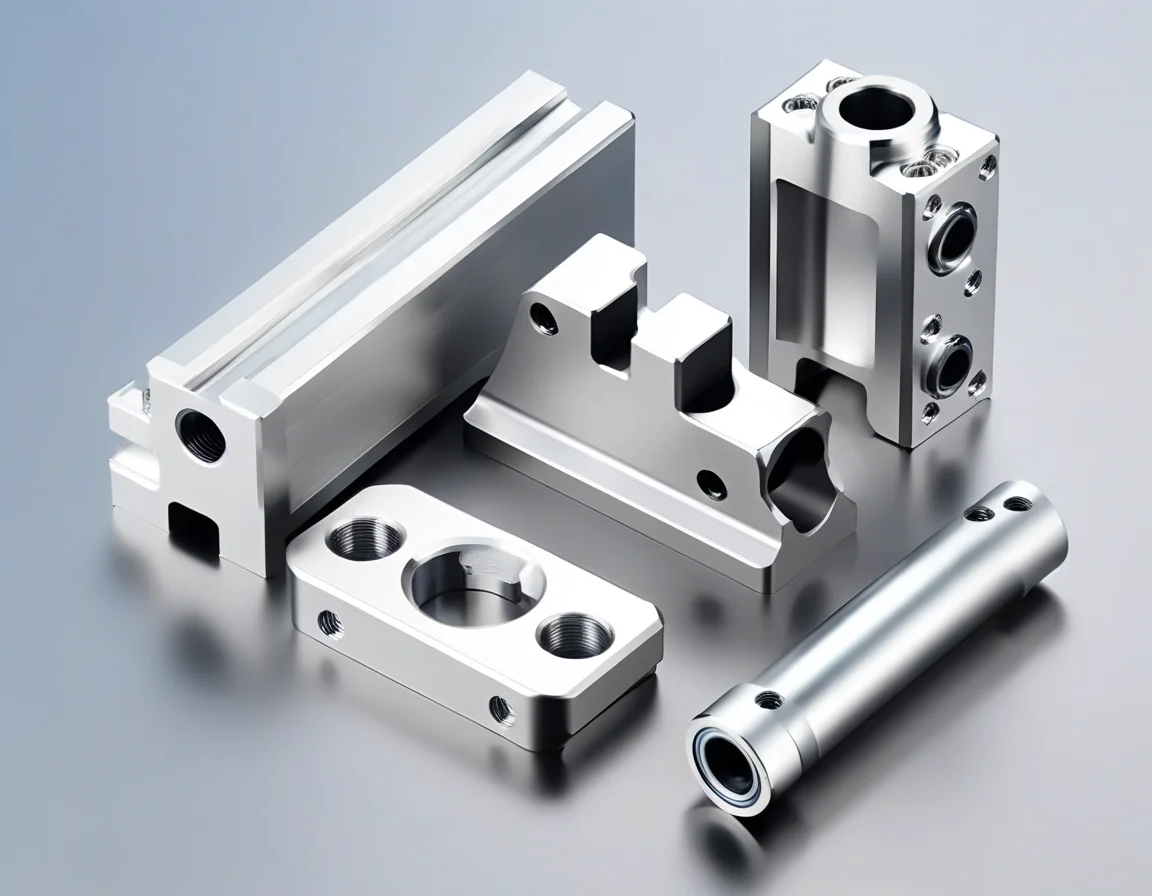

Typical CNC Milled Parts from XCM CNC

The following part types represent our everyday milling production. Each category benefits from the precision, equipment range, and quality systems available at our Shenzhen facility.

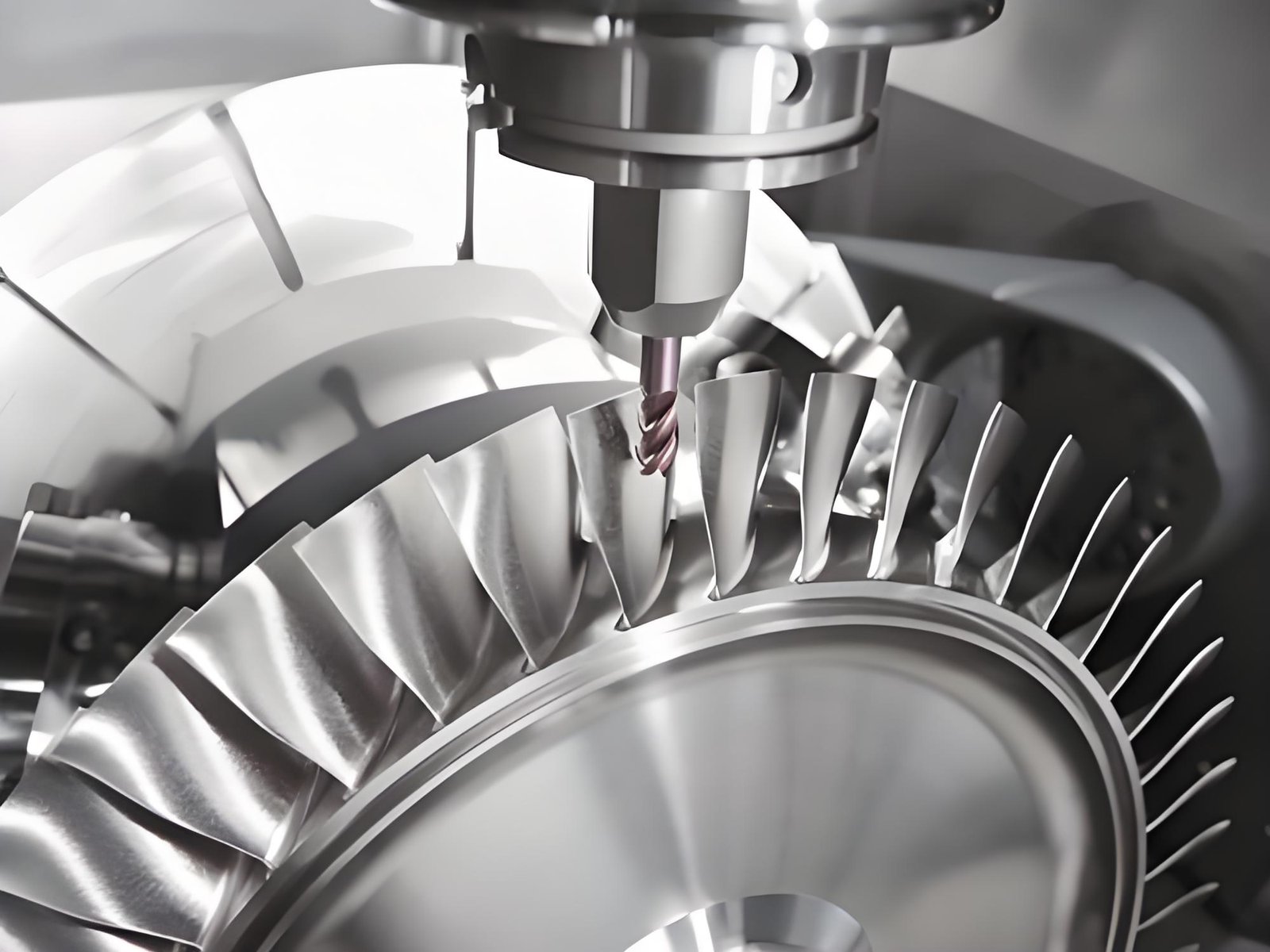

• Impellers and turbine components: Multi-blade, 5-axis-machined flow components with complex curved surfaces and strict balancing requirements
• Housings and enclosures: Aluminum or steel enclosures with deep pockets, thin walls, multiple mounting features, and tight flatness specifications
• Valve and sensor components: Precision-bored bodies, seats, and manifold blocks requiring controlled surface finish on sealing faces
• Connectors and flanges: Multi-hole pattern parts with positional tolerance control across bolt circles and interface surfaces
• Pump components: Volute housings, wear plates, and impeller covers machined to close-clearance specifications

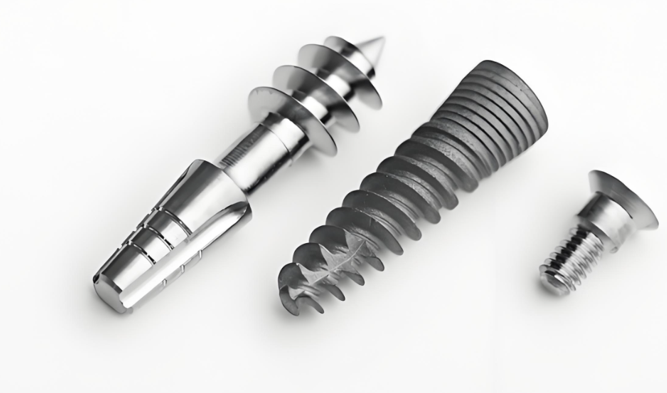

• Medical components: Small, high-accuracy parts for surgical instruments, diagnostic devices, and implant-adjacent assemblies
• Robotic parts: Arm joints, mounting plates, actuator housings, and custom end-effector components for automation systems
• Automotive components: Brackets, sensor mounts, transmission-related parts, and structural elements produced under IATF 16949 controls
• Shafts (combined mill-turn): Keyways, flats, cross-holes, and spline features added via milling on turned shaft blanks

End-Use Scenarios for CNC Milled Parts

XCM CNC’s milling services support a wide spectrum of industries and application types. Our quality certifications align directly with the compliance requirements of the sectors we serve.

Medical Devices and Instruments (ISO 13485:2017)

Precision cnc milling of surgical instrument components, implant-related parts, diagnostic equipment housings, and medical pump components where biocompatibility, surface finish, and dimensional accuracy are critical.

Automotive (IATF 16949:2016)

Production of automotive components including sensor housings, valve bodies, connector blocks, flanges, and structural brackets that require repeatable accuracy across batch quantities.

Defense and Military (GJB9001C)

Machining of mission-critical parts such as enclosures, mounting platforms, and specialized mechanical assemblies subject to military-grade quality control and traceability.

Industrial and Automation

Robotic parts, actuator housings, manifold blocks, fixture plates, and custom tooling for automated production lines.

Energy and Fluid Handling

Impellers, turbine components, pump housings, and valve assemblies requiring complex surface profiles and tight sealing-face tolerances.

Tolerance and Accuracy

XCM CNC maintains machining accuracy to IT5 and IT6 grades across our milling operations. Specific tolerance capabilities include:

• Small feature accuracy: +/-0.003 mm (+/-0.00012 inch)
• Large dimension accuracy: +/-0.02 mm

These tolerances are achievable on appropriately designed features and materials. If your drawing calls for tighter or non-standard tolerances, our engineering team will review feasibility during the DFM stage and recommend process adjustments if needed.

Size Range

Our milling platforms accommodate a wide size range. The Qiao Feng CNC 3016-4A, our largest-travel machine, provides a maximum working envelope of 3000 x 1600 x 1400 mm, supporting large cnc milling services for parts up to approximately 2600 mm in length depending on fixturing and setup. For smaller precision components, our DMG, Brother, and Matsuura centers deliver high accuracy at faster cycle times.

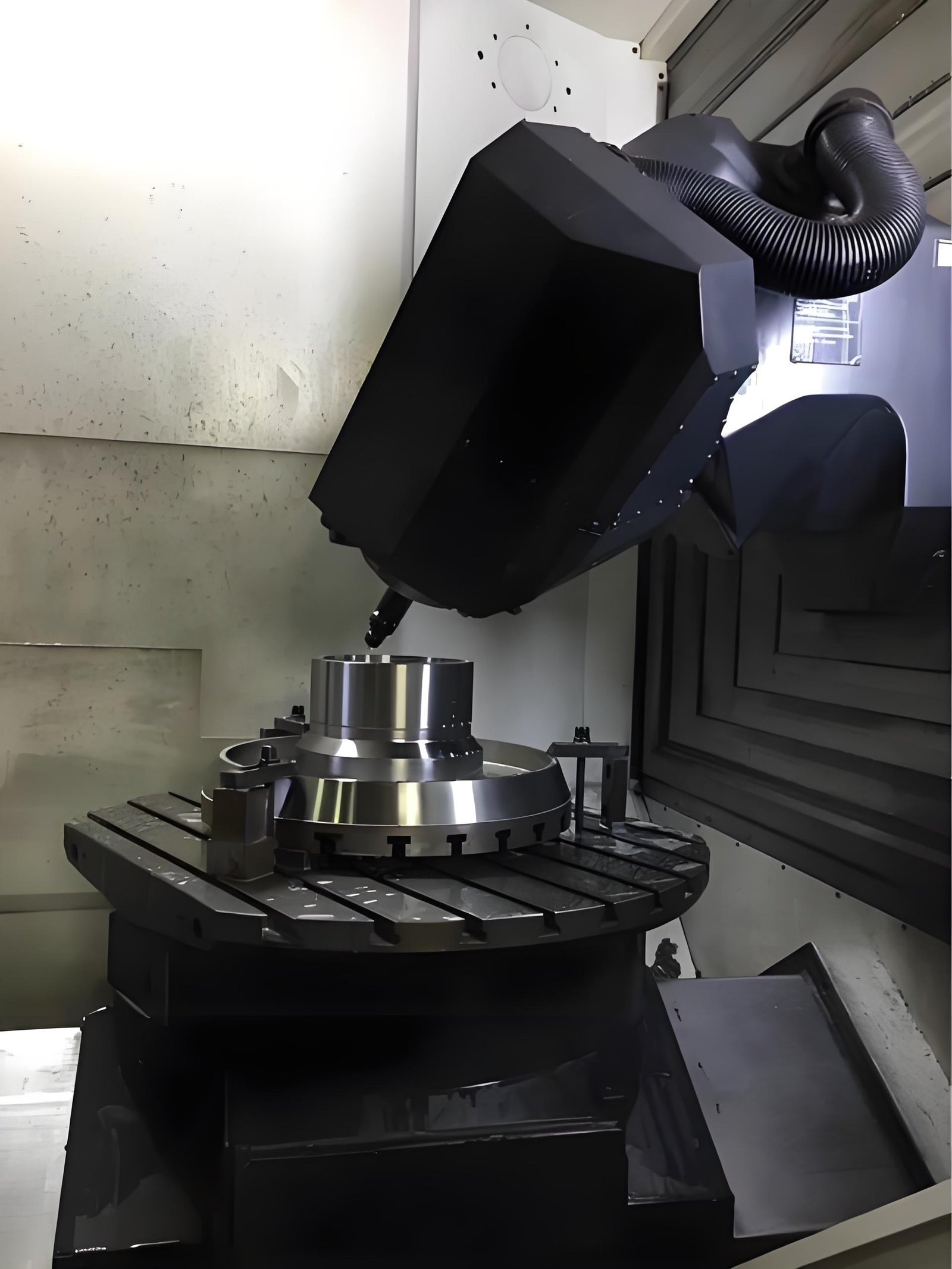

Complexity and Multi-Axis Access

5-axis simultaneous machining on the Matsuura MX-520 allows us to complete complex parts in fewer setups, reducing cumulative positioning error and improving geometric consistency. This is particularly valuable for impellers, turbine blades, and medical components with compound curves or undercut features.

Consistency and Production Considerations

To ensure part-to-part repeatability across production runs, XCM CNC employs:

• First-article inspection (FAI) reports aligned with customer requirements
• Statistical process monitoring for batch production
• Full material and process traceability supported by our ISO 9001:2015 quality management system
