CNC Turning Services

What Is CNC Turning?

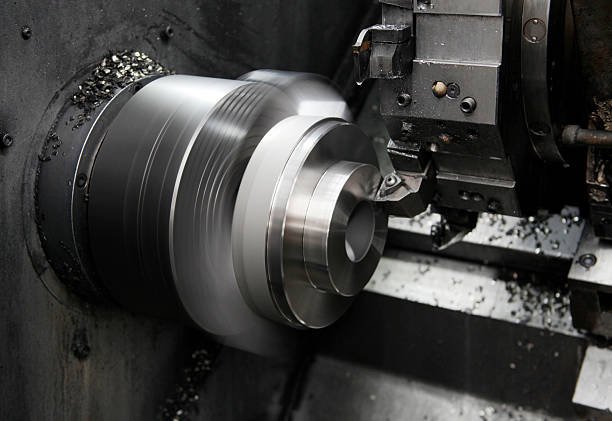

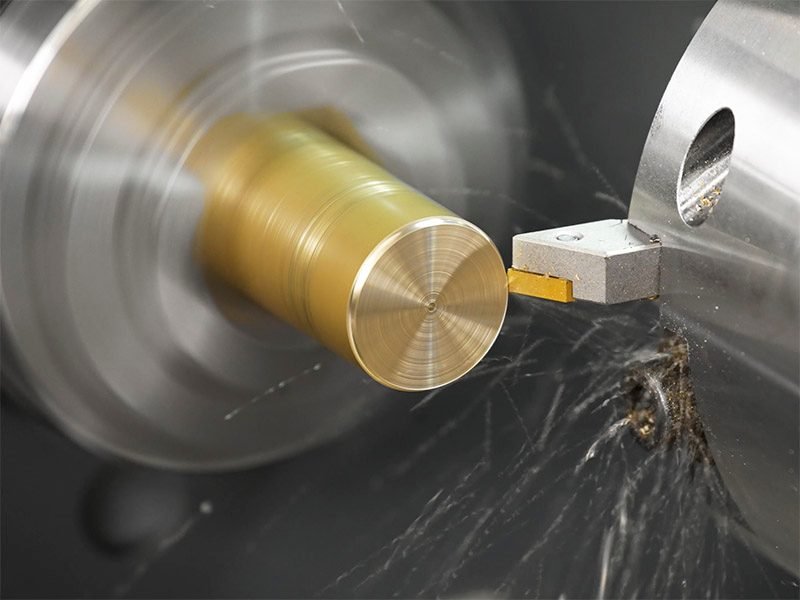

CNC turning is a subtractive manufacturing process in which a workpiece rotates against a stationary cutting tool. The process is ideal for producing cylindrical, conical, and contoured geometries with high dimensional accuracy. Typical features created on a CNC lathe include outer diameters, inner bores, threads, grooves, tapers, and chamfers.

When Do Buyers Choose CNC Turning?

Engineers and sourcing managers specify CNC turning when a part geometry is predominantly rotational. Shafts, bushings, flanges, threaded fittings, and valve stems are common examples. Turning is also selected when surface finish and concentricity are critical, since the single-point cutting process can achieve consistent roundness and surface quality across production batches.

Why Work With XCM CNC for Turning?

XCM CNC combines automatic lathes for small and medium parts with a large-capacity CNC lathe for heavy workpieces, covering the full spectrum of turning requirements under one roof. Our quality management system is certified to four internationally recognized standards, reducing the supplier qualification burden for buyers in automotive, medical, and defense-adjacent industries.

Turning Equipment

• Jingshang 80 automatic lathes: suited for high-efficiency turning of small to medium rotational parts, including connector fittings, sensor pins, and precision bushings.
• TSUGAMI CNC precision automatic lathes (Japan): ideal for high-volume production of small, complex components with excellent dimensional consistency and surface finish. Models such as S206A and SS327 support stable machining of slender shafts and precision parts.

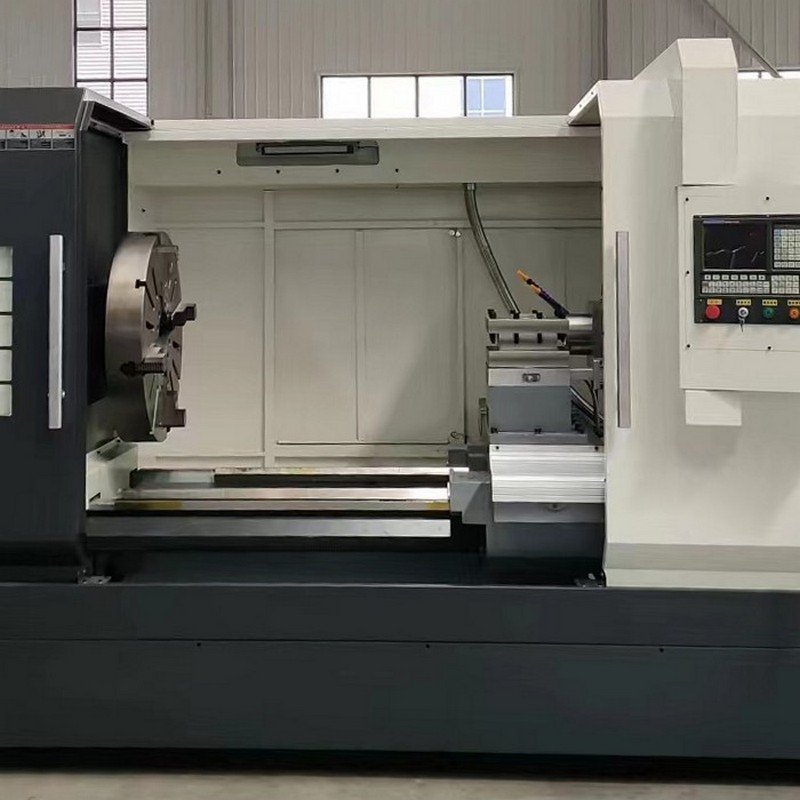

• Shenyang CNC lathe CK61125X2000: heavy-duty lathe capable of handling workpieces up to diameter 1250 x 2000 mm, supporting large CNC turning services for shafts, pump housings, and flanges.

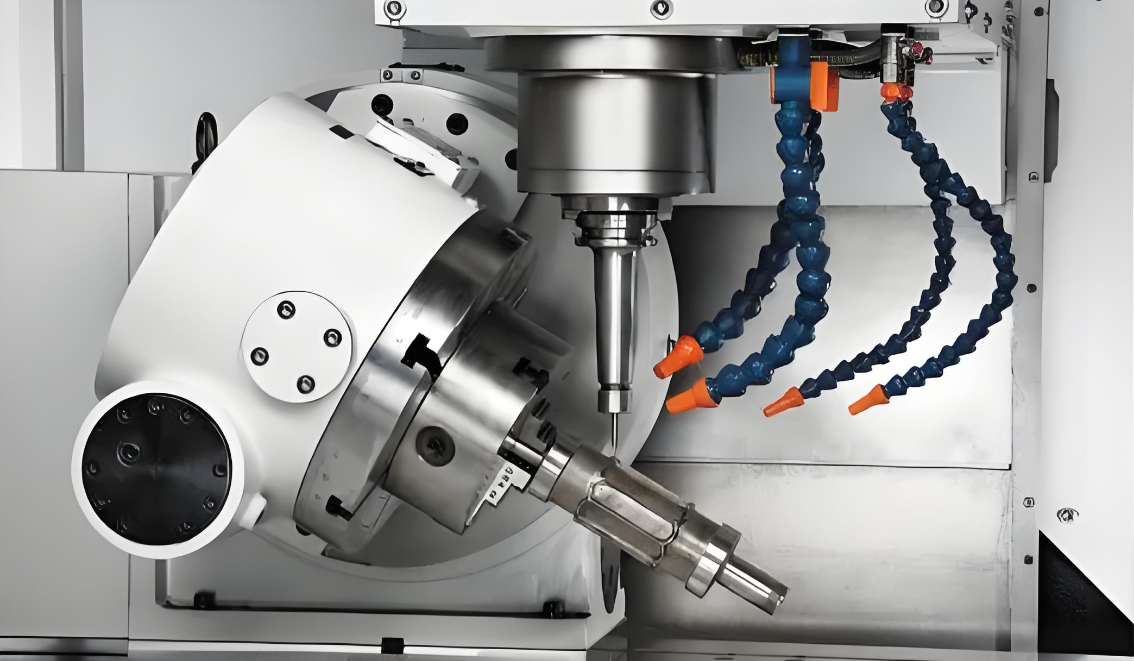

• Mazak milling & turning centers (QTN100MSY/KS): advanced multi-axis machines integrating turning, milling, and drilling in one setup, reducing cycle time and improving accuracy. With capacities up to diameter 550 mm x 1000 mm, they are suitable for complex components requiring high precision.

Together, our TSUGAMI and Mazak equipment enables us to deliver high-precision, low-cost custom CNC turning services tailored to a wide range of industries and part requirements.

Process Strengths

• Machining accuracy grades of IT5 and IT6 on turned features.
• Small-size tolerance capability of +/-0.003 mm (+/-0.00012 inch).
• Large-size tolerance capability of +/-0.02 mm.
• Capacity to handle parts from miniature fittings to large-diameter, heavy components.

Scalability

Automatic lathes enable efficient batch production of repetitive turned components, while the large CNC lathe accommodates single-piece or low-volume orders for oversized parts. This dual capability means XCM CNC can serve both high-volume OEM programs and project-based orders without compromising delivery or quality.

Turned Part Materials

We machine a wide range of materials, including various metals, plastics, tungsten carbide, boron carbide, titanium alloys, and ceramics.

Examples of CNC Turned Parts We Produce

• Shafts: stepped shafts, splined shafts, and motor shafts in various lengths and diameters, including large shafts up to diameter 1250 mm.
• Flanges: weld-neck flanges, slip-on flanges, and custom flange adapters turned from bar stock or forgings.
• Valve components: valve stems, valve seats, and bonnet bodies requiring precise sealing surfaces and thread accuracy.
• Connector fittings: miniature turned pins, sockets, and threaded couplings for electronics and sensor assemblies.
• Pump components: pump shafts, impeller hubs, wear rings, and sleeve bearings demanding tight concentricity and surface finish control.
• Sensor housings: small-diameter cylindrical housings with internal bores, O-ring grooves, and threaded ends.

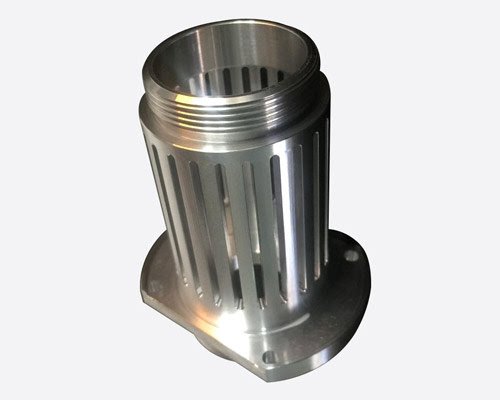

• Automotive components: wheel studs, axle sleeves, and transmission bushings produced to IATF 16949 requirements.
• Medical components: instrument handles, guide pins, and connector bodies turned under ISO 13485 controls.

End-Use Scenarios for CNC Turned Parts

CNC turned components serve a broad range of industries where rotational geometry, tight tolerances, and reliable surface quality are required. XCM CNC supplies turned parts for applications including:

• Automotive: transmission shafts, wheel studs, sensor housings, and threaded fittings produced under IATF 16949 quality controls.
• Medical devices: precision connector bodies, instrument shafts, and implant-adjacent components manufactured in our ISO 13485 certified facility.
• Industrial pumps and valves: valve stems, pump shafts, seal seats, and flanges in corrosion-resistant materials.
• Robotics and automation: spindle components, coupling shafts, and encoder housings requiring high concentricity.
• Electronics and sensors: miniature turned pins, connector shells, and sensor fittings where dimensional consistency across large batches is essential.
• Defense and aerospace: Our ISO 9001:2015 and GJB9001C quality systems ensure we meet the rigorous safety and performance standards demanded by aerospace and defense contractors.

Tolerances and Accuracy

XCM CNC achieves machining accuracy grades of IT5 and IT6 on CNC turned features. For small-dimension turned parts, we hold tolerances to +/-0.003 mm (+/-0.00012 inch). For large-dimension workpieces machined on our Shenyang CNC lathe, tolerances of +/-0.02 mm are maintained across the full turning length.

Size Range

Our turning capability covers a broad size envelope. The Jingshang 80 automatic lathes handle small and medium parts, such as connector fittings, pins, and bushings. The Shenyang CK61125X2000 lathe extends capacity to workpieces up to diameter 1250 x 2000 mm, making it suitable for heavy shafts, large flanges, and pump components that many smaller CNC turning services factories cannot accommodate.

Complexity and Secondary Operations

Beyond basic OD and ID turning, our lathes produce threads (internal and external), grooves, tapers, knurling, and contoured profiles in a single setup where possible. For parts requiring features that combine rotational and prismatic geometry, turned blanks can be transferred to our CNC machining centers for secondary milling, drilling, or tapping operations.

Consistency in Production

Automatic lathes with bar-feed capability allow uninterrupted production of small turned components, reducing cycle time variation and maintaining dimensional consistency across batches. Each production lot is inspected in accordance with our ISO 9001:2015 quality procedures.
