CNC Machining Applications

XCM CNC (Shenzhen Xinchuangmeng Co., Ltd) provides CNC machining capability for buyers and engineering teams that need a practical match between part geometry, machine platform, size range, and quality requirements.

XCM CNC operates under four concurrent management-system certifications, ISO 9001:2015, ISO 13485:2017, GJB9001C, and IATF 16949:2016, so a single manufacturing partner can serve your automotive, medical-device, defense, and general-industrial programs without qualification delays.

This page provides an overview of the industries we support, the technical capabilities behind every application, and direct links to detailed industry pages where you can evaluate fit for your project.

Browse CNC Machining Industries

Select an industry below to view application-specific capabilities, typical part examples, relevant certifications, and quality standards that apply to your project.

CNC Machining Applications

Low-cost CNC solutions for automotive, aerospace, medical, electronics & industrial sectors. ISO-certified factory with DMG 5-axis capability.

Technical Overview

Multi-Axis Equipment for Complex Geometries

Our shop floor combines high-performance machining centers from DMG (80mono), Mazak (I-100S), Matsuura (MX-520), Brother, Taichung, and Qiaofeng with Jingshang 80 automatic lathes and the heavy-duty Shenyang CK61125x2000 CNC lathe. This mix of 3-axis, multi-axis milling, and CNC turning covers everything from small precision connectors to large structural components.

Part Size Range

  • Milling: Maximum working travel of 3000 x 1600 x 1400 mm on the Qiaofeng CNC 3016-4A, enabling machined parts up to approximately 2600 mm in length depending on fixturing and setup.
  • Turning: Diameter capacity up to 1250 mm with 2000 mm between centers on the Shenyang CK61125x2000.

Achievable Tolerances

  • General machining accuracy: IT5 and IT6 grades.
  • Small-dimension tolerance: +/-0.003 mm (+/-0.00012 in.).
  • Large-dimension tolerance: +/-0.02 mm.

In-House Inspection and Metrology

Every critical dimension is verified before shipment using calibrated instruments matched to the tolerance band of the feature:

  • Hexagon Inspector Classic 06.08.06, CMM-level dimensional inspection for complex 3D geometries.
  • Leader NCA8106, precision measurement for turned and milled features.
  • WanHao Rational VMS-3020G, 2.5D video measuring for profile, position, and micro-feature verification.
  • TRIMOS 600L Height Gauge, height and step measurements on larger workpieces.

Process Coverage

Combining CNC milling, CNC turning, and automatic lathe production allows XCM CNC to handle prototypes, low-volume precision lots, and volume production runs within a single facility. We have a stable supply chain that can provide a wide range of surface finishes.

Industry Coverage

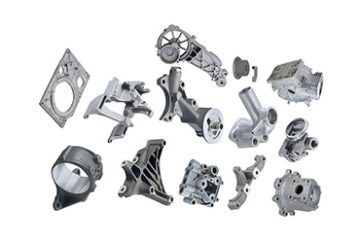

Automotive

Certified to IATF 16949:2016, XCM CNC machines shafts, flanges, housings, sensor components, and other automotive parts that must meet PPAP-level documentation and dimensional repeatability at IT5-IT6 tolerance grades.

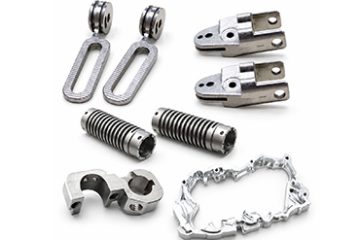

Medical Devices

Under our ISO 13485:2017-certified quality management system, we produce pump components, housings, connectors, and other medical parts where traceability, material certification, and tight tolerances of +/-0.003 mm are non-negotiable.

Defense & Military Applications

GJB9001C certification confirms compliance with Chinese military quality management standards. Our CNC machining capabilities support a range of defense-related components, including structural parts, housings and enclosures, precision connectors, shafts and transmission parts, thermal management components, and assembly parts.

These components typically require strict dimensional control, process consistency, and compliance with certified quality systems for high-reliability applications.

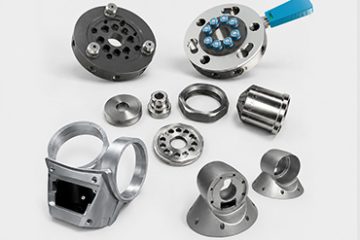

Robotics and Automation

Robotic arms, end-effector housings, and precision mechanical assemblies rely on the positional accuracy and surface consistency that multi-axis CNC milling delivers. XCM CNC machines robotic parts, enclosures, and structural components to the geometric tolerances these systems demand.

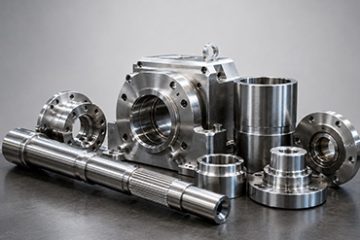

Industrial Equipment and Energy

Impellers, turbine components, valve bodies, cavities, and large structural parts are machined on equipment with working envelopes up to 3000 x 1600 x 1400 mm, giving engineers the freedom to consolidate multi-piece assemblies into single machined components where possible.

Typical Machined Parts Across All Sectors

  • Impellers and turbine components
  • Shafts and flanges
  • Valve and sensor components
  • Connectors
  • Cavities and housings
  • Pump and medical components
  • Enclosures
  • Robotic parts
  • Automotive components

FAQ

What industry certifications does XCM CNC hold?

XCM CNC maintains four concurrent certifications: ISO 9001:2015 (general quality management), ISO 13485:2017 (medical devices), IATF 16949:2016 (automotive), and GJB9001C (Chinese national military standard). These certifications are audited and renewed on their respective cycles, meaning our quality system is designed to satisfy the documentation, traceability, and process-control requirements of multiple regulated industries simultaneously.

What tolerances can you achieve on CNC machined parts?

Our standard machining accuracy reaches IT5 and IT6 tolerance grades. For small-dimension features, we hold +/-0.003 mm (+/-0.00012 in.). For larger dimensions, achievable tolerance is +/-0.02 mm. Actual tolerance capability depends on material, geometry, and feature size, send your drawing and we will confirm feasibility.

What is the largest part you can machine?

For milling, our Qiaofeng CNC 3016-4A provides a maximum working travel of 3000 x 1600 x 1400 mm, accommodating parts up to approximately 2600 mm in length depending on fixturing. For turning, our Shenyang CK61125x2000 handles diameters up to 1250 mm with 2000 mm between centers.

What inspection equipment do you use to verify dimensions?

We use a Hexagon Inspector Classic CMM, a Leader NCA8106 measuring system, a WanHao Rational VMS-3020G 2.5D video measuring machine. Instrument selection is matched to the tolerance band and feature type being measured.

Can you handle both prototype and production quantities?

Yes. Our equipment mix, from multi-axis machining centers for complex low-volume work to Jingshang 80 automatic lathes for higher-throughput turned parts, supports prototype, pilot-run, and volume production. Please include your target quantity when requesting a quote so we can recommend the most cost-effective process routing.

What materials can you machine?

XCM CNC can machine a wide range of materials, including aluminum alloys, stainless steels, titanium alloys, brass, copper, engineering plastics (such as PEEK, PTFE, ABS, Nylon), and other metal and plastic materials. Please specify your required material grade when submitting an inquiry so our engineering team can confirm machinability and lead time.

Request a Quote for Your CNC Machining Application

Send us your 2D drawings or 3D CAD files along with material grade, critical tolerances, surface finish requirements, target quantity, and intended application. Our engineering team will review your specifications, confirm manufacturability, and return a detailed quotation, typically within 1 business day.

Email: [email protected] | WhatsApp: +8618638951317
