Overview
XCM CNC balances Acetal and POM machining cost through tolerance grading, material yield, operation consolidation, and grade selection instead of presenting high-precision plastic parts as generic low-cost items. Cheap cnc machining services from a direct factory supplier.
For low-friction self-lubrication, high stiffness, and precision-machining requirements, the engineering review separates functional fit surfaces from standard outer profiles, compresses unnecessary reinspection, and keeps the priority checks on valve cores, clips, and locating surfaces.
Key Capabilities
- Materials: Delrin, Celcon, POM-H, POM-C by drawing review
- Tolerance: +/-0.03 mm standard, +/-0.005 mm selected critical features by drawing review
- Surface Finish: Ra 3.2 um milled, Ra 1.6 um precision, Ra 1.6 um turned or bored
- GD&T: Coaxiality 0.012 mm, runout 0.01 mm, cylindricity 0.011 mm
- Max Size: Milling 3000 x 1600 x 1400 mm, turning diameter 1250 x 2000 mm
- Surface Treatment: Deburring, edge smoothing, anti-burr review, or marking by drawing review
- Thread: M2-M220, NPT, BSP, G, PT
- Cost Note: Standard +/-0.03 mm and Ra 3.2 um are included in base machining cost, while tighter specifications are priced separately
POM Tolerance Grading for Cost Control
POM cost planning can keep standard +/-0.03 mm dimensions in the base route and reserve +/-0.005 mm only for selected critical features. Functional holes can be reviewed around 0.015 mm position tolerance while noncritical outer profiles avoid the same precision process. Standard +/-0.03 mm and Ra 3.2 um stay in the base route, while selected +/-0.005 mm and Ra 1.6 um features are quoted separately.
POM Allowance Planning for Material Yield
POM allowance planning can combine Ra 3.2 um standard milled faces with Ra 1.6 um precision areas to reduce unnecessary finishing time. Gear, valve-core, and micro locator features with 0.3 mm minimum slot widths can evaluate stock allowance, operation consolidation, and reinspection scope together. Proper stock planning reduces tool wear and machining time while keeping fit faces stable.
POM Inspection Scope for Small Batches
POM small-batch parts can focus CMM checks on 0.012 mm coaxiality and 0.01 mm hole position instead of full-field overinspection. Delrin, Celcon, and other POM grade changes can adjust the inspection scope around the drawing datum, consolidated operations, and finishing route. Small-batch work can combine first-article full inspection with critical-dimension tracking instead of part-by-part CMM inspection.
POM Surface Planning for Value Parts
POM value parts can keep edge-smoothed or anti-burr finish only on functional zones while other faces remain at the Ra 3.2 um standard finish. Gear, valve-core, locator-pin, and connector-clip interfaces in samples and repeat orders still keep the standard 10-15 day route and drawing-review reinspection conditions instead of a fixed low-price promise. Separating functional and nonfunctional areas can reduce finishing cost.
Specifications

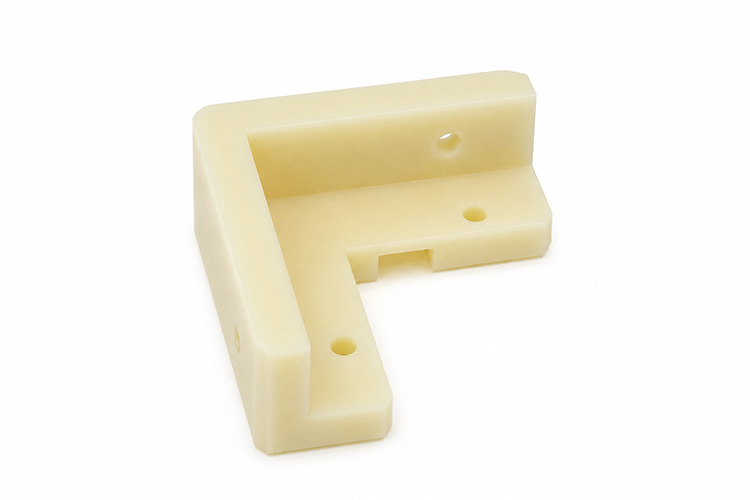

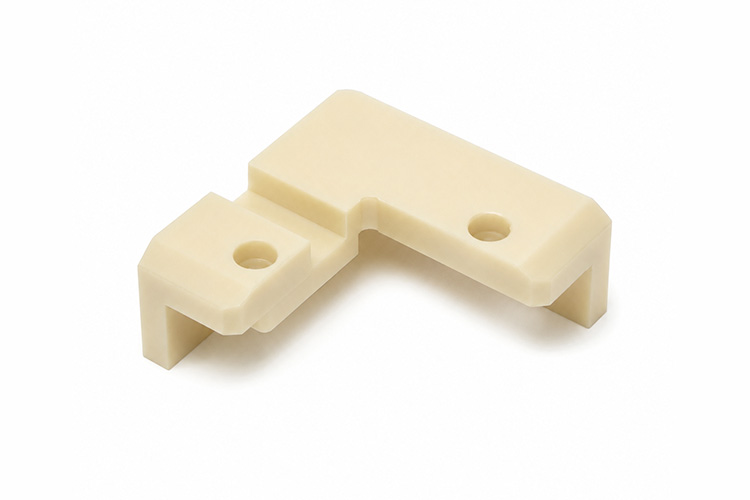

| Product Name | Cheap POM CNC Machined Parts Supplier |
|---|---|
| Manufacturer | XCM CNC |
| Factory Location | Shenzhen, Guangdong, China |
| Quality System | ISO 9001, ISO 13485, IATF 16949, GJB9001C |
| Machining Process | CNC machining |
| Material | POM |
| Material Grade | Delrin, Celcon, POM-H, POM-C by drawing review |
| Tolerance | +/-0.03 mm standard CNC machining tolerance |
| Precision Tolerance | +/-0.005 mm for selected critical features by drawing review |
| Surface Roughness | Ra 3.2 um milled, Ra 1.6 um precision, Ra 1.6 um turned or bored |
| Surface Treatment | Deburring, edge smoothing, anti-burr review, or marking by drawing review |
| Max Part Size | Milling 3000 x 1600 x 1400 mm / Turning diameter 1250 x 2000 mm |
| Inspection | CMM, roundness tester, height gauge, roughness tester, thread gauges |
| Application | Cost-balanced clips, prototype valves, low-friction guide details |
| Typical Application | Cost-controlled acetal precision parts |
| Key Features | Dimensional-stable POM machining, tolerance grading, allowance planning, process consolidation |
| Critical QC Requirements | Material traceability, burr-control review, fit-surface inspection, tooth-profile or datum check, post-process reinspection |
| Batch Range | 1 piece to planned repeat batches |
| MOQ | 1 Piece |
| Typical Lead Time | 10-15 business days after drawing review |
| Drawing Formats | STEP, IGS, DWG, PDF, X_T |
| Secondary Process | Deburring, edge smoothing, anti-burr review, marking, and post-machining reinspection |
| Material Certificate | Material certificate by order requirements |
| Material Feature | Dimensional-stable engineering plastic, low-friction precision motion review, burr-control focus |
| Critical Tolerance Control | Flatness 0.02 mm, position tolerance 0.015 mm, hole position 0.01 mm by drawing review |
Applications
Precision Gears and Cams in Small Batches
Typical Parts: Precision gear, cam, worm wheel
Acetal dimensional stability, low friction, and elastic recovery suit low-noise transmission parts such as gears, cams, and worm wheels. Gear profile and fit bores can keep selected +/-0.005 mm precision while outer profiles and nonfunctional faces stay on standard +/-0.03 mm cost-balanced routes.
Fluid Valve Cores and Valve Seats in Small Batches
Typical Parts: Valve core, valve seat, pump component
Low friction, self-lubrication, and dimensional stability make POM suitable for sliding and sealing fits in valve cores, valve seats, and pump components. Sealing faces and flow holes can keep Ra 1.6 um precision finish while non-contact surfaces stay on the standard Ra 3.2 um route.
Locator Pins and Guides in Small Batches
Typical Parts: Locating pin, guide part, fixture bushing
High stiffness, fatigue resistance, and dimensional stability suit locator pins, guide parts, and fixture bushings used in repeated assembly. Critical holes can use CMM checks for 0.01 mm position tolerance, while noncritical dimensions stay on caliper and height-gauge sampling to control inspection cost.
Connector Insulators and Clips in Small Batches
Typical Parts: Fiber optic adapter housing, BNC connector insulator bracket, fan impeller (non-high-speed)
Acetal spring behavior and low friction suit connector insulators, clips, and elastic latch structures. Slot, latch, and locating-hole cost can be optimized through material-yield planning and burr control so elastic performance and assembly accuracy remain protected without overspecifying the whole part.
Why Choose Us
Certified Quality System and Precision POM Coverage
XCM CNC organizes Acetal and POM projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes, with DMG, Mazak, Matsuura, and Brother equipment covering high-precision turning and milling. Gear, valve-core, locator, and motion-component programs can confirm grade selection, crystallization control, burr management, and mating-surface requirements during drawing review.
Size Range from Small Connectors to Large Precision Structures
The machining range covers small connector-scale parts, gears, valve cores, locator pins, connector precision parts, larger guide plates, low-friction sliders, and weight-reduction structures used as metal alternatives. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, material grade, crystallization behavior, and fit requirements.
Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production
XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.
Cost Grading for POM Features
POM cost reduction starts by separating critical fit faces, low-friction functional areas, and standard structural surfaces instead of quoting every feature at the same tight level. Standard +/-0.03 mm and Ra 3.2 um stay in the base route, while selected +/-0.005 mm and Ra 1.6 um features are reviewed separately. Cost-sensitive programs can first identify which positions actually need transmission and dimensional-stability performance.
Layered Grade and Process Selection
Delrin homopolymer, Celcon copolymer, and standard POM can be graded against precision, fatigue resistance, and machining difficulty instead of assigning the highest specification to every project. The budget can stay focused on positions that actually affect transmission and fit while still meeting stability and low-friction targets.
FAQ
Which features usually add the most cost on Acetal CNC parts?
Micro features, critical fit faces, full-part tight tolerances, Delrin homopolymer grades, and extensive reinspection usually add more cost than standard POM profiles. Separating functional surfaces from general structure usually keeps total cost more manageable.
How do you reduce POM machining cost without losing fit performance?
Cost reduction usually starts with grade selection, tolerance grading, stock planning, and inspection-scope optimization rather than weakening key fit functions. Low-friction behavior, dimensional stability, and fatigue-related requirements still have to meet the drawing and service condition.
What is the cost difference between standard and precision tolerance for POM parts?
Standard +/-0.03 mm and Ra 3.2 um are included in the base machining route. Selected +/-0.005 mm precision, Ra 1.6 um surfaces, and GD&T control add operations and inspection cost, so the exact difference still depends on structure, batch size, and inspection scope.
How does material grade selection affect POM machining cost?
Delrin homopolymer usually offers better machining stability but higher material cost, while Celcon copolymer offers more toughness with different crystallization control needs. The final grade still has to balance dimensional stability, fatigue resistance, and budget.
How do you use DFM review to reduce POM machining cost?
DFM review can separate key fit faces from nonfunctional areas, suggest graded tolerances, and optimize finishing and inspection scope. Reasonable stock planning, operation consolidation, and blank selection reduce waste and machine time while the required fit is protected.
How do you control cost for small-batch Acetal orders?
Small-batch POM orders can combine full first-article inspection with critical-dimension tracking instead of part-by-part CMM checks. Consolidated operations, standard tooling, and coordinated blank purchasing can also reduce unit cost, subject to geometry, quantity, and delivery needs.
Request a CNC Machining Quote from XCM CNC
Send us your drawings. Our team will review the file and reply with a machining quote. MOQ: 1 piece, with competitive low-cost pricing.
