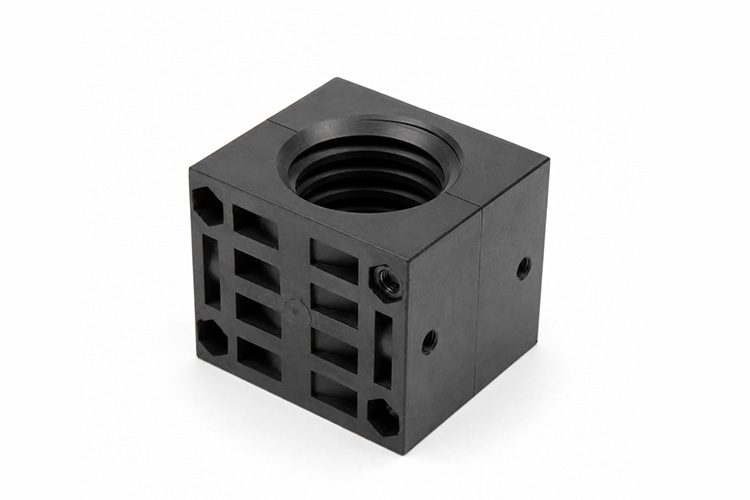

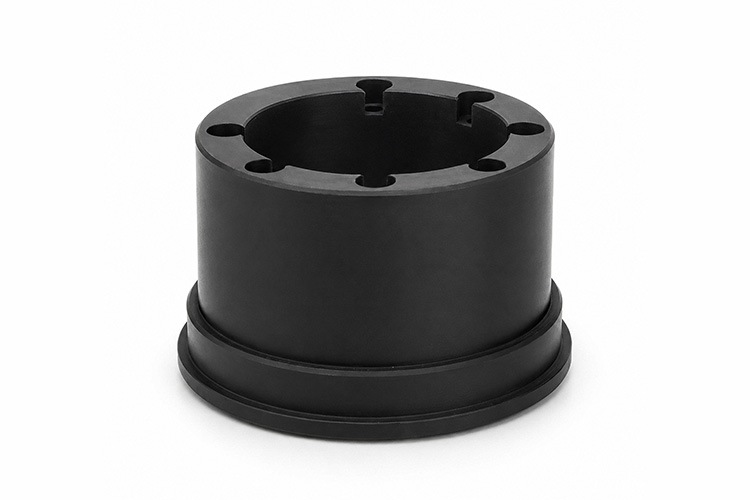

Cost-Effective Acetal (POM) CNC Prototype Machining

XCM CNC provides rapid Acetal and POM prototyping for design validation of precision gears, valve parts, and locator structures. The sample stage can confirm the material direction, critical fits, and inspection priorities from the drawing before the project moves into pilot production.

For dimensional stability, low-friction self-lubrication, and fatigue resistance, the prototype route reviews micro-burrs, fit accuracy, assembly feedback, and the later trial-fit and dimensional recheck points needed for low-volume transition.

Acetal Prototype Lead Time for Sample Runs

POM prototype planning can start from MOQ 1 piece with a 3-7 day sample route before pilot decisions. Selected +/-0.005 mm precision and 0.015 mm position tolerance still need sample-based confirmation instead of jumping straight into production. Prototypes and production use the same tolerance and inspection standards so sample validation can feed directly into batch release.

POM Revision Iteration for Design Validation

POM design updates can recheck 0.012 mm coaxiality and 0.01 mm hole position after each revision loop. When the project changes between Delrin, Celcon, or other POM grades, or when thin-wall recovery and fixturing change, the datum plan, stock allowance, and reinspection items are updated together. Revision records and inspection data can be tied to the exact design change.

POM Fit Verification for Low-Volume Trials

POM pilot samples can verify selected +/-0.005 mm critical features and Ra 1.6 um fit surfaces before low-volume release. Brackets, housings, and interfaces that need assembly confirmation can still review 0.02 mm flatness and 0.015 mm position tolerance feature by feature. Actual feedback on fit faces, locating holes, and fixture datums can then refine the production process.

POM Surface Trials for Pilot Approval

POM pilot approval can compare Ra 1.6 um functional faces with edge-smoothed or anti-burr finish on selected zones before repeat orders. Gear, valve-core, locator-pin, and connector-clip interfaces can also review the transition between the 3-7 day sample route and the 10-15 day standard route. Once the sample is accepted, the finishing and deburring standard can be fixed for production.

Certified Quality System and Precision POM Coverage

XCM CNC organizes Acetal and POM projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes, with DMG, Mazak, Matsuura, and Brother equipment covering high-precision turning and milling. Gear, valve-core, locator, and motion-component programs can confirm grade selection, crystallization control, burr management, and mating-surface requirements during drawing review.

Size Range from Small Connectors to Large Precision Structures

The machining range covers small connector-scale parts, gears, valve cores, locator pins, connector precision parts, larger guide plates, low-friction sliders, and weight-reduction structures used as metal alternatives. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, material grade, crystallization behavior, and fit requirements.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.

Fast Validation for POM Prototypes

POM prototypes are best used to confirm the revision, material grade, fit faces, and critical dimensions before pilot production begins. A 3-7 day prototype route can usually be evaluated first, but the actual lead time still depends on structure, grade, and reinspection scope. Prototype and production follow the same tolerance and inspection standards.

Grade Selection Confirmed During Sampling

The sample stage can compare Delrin homopolymer and Celcon copolymer before the next revision so crystallization stress, burr behavior, and fit dimensions are verified early. Confirming the grade during prototyping reduces rework risk compared with changing material after pilot release.
