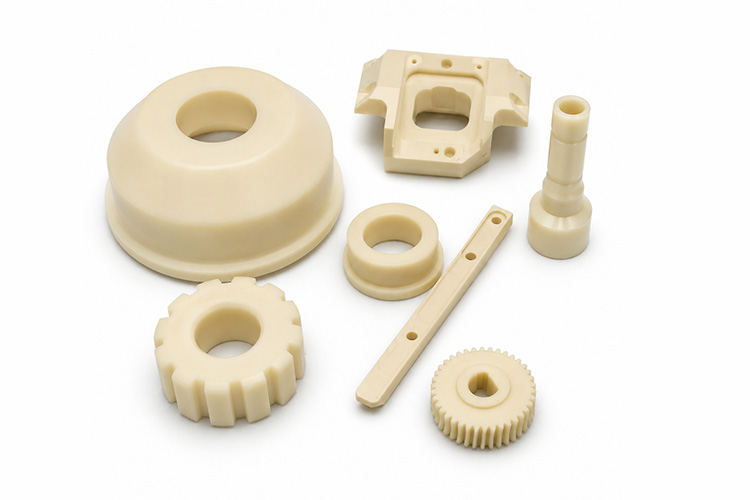

OEM Acetal (POM) CNC Turned and Milled Parts Supplier

XCM CNC provides custom Acetal and POM turned and milled parts for drawing-based high-precision engineering-plastic projects. During drawing and DFM review, the machining team can confirm grade selection, critical fit dimensions, and the burr-control plan.

For dimensional stability, low-friction self-lubrication, and high-stiffness requirements, sample approval also reviews fatigue performance, machining-precision direction, the revision-response path, and assembly fit on valve seats, gears, and clip interfaces before the project moves into low-volume production.

Acetal DFM Review for Critical Fit Features

Acetal OEM parts can achieve selected +/-0.005 mm critical features and 0.015 mm position tolerance through drawing-based DFM review before sample approval. Gear teeth, valve-core fit faces, and 0.01 mm hole-position requirements need machining allowance, fixture datums, and inspection plans confirmed during engineering review. Delrin homopolymer and Celcon copolymer differ in dimensional stability and crystallization stress, so the grade still has to match the drawing tolerance and assembly requirement.

POM Low-Friction Surface Control for Mating Parts

Acetal mating surfaces can reach Ra 1.6 um on functional areas through precision turning or boring. Valve-seat sealing faces, shaft-bore fit surfaces, and sliding guides need roughness targets matched to fit grade and friction requirements. Thin walls around 0.5 mm, H7 holes, or multi-face setups still require sample-stage review of thermal distortion, elastic recovery, and deburring scope.

POM Coaxiality Control for Shaft-Bore Assemblies

Acetal shaft-bore assemblies can maintain 0.012 mm coaxiality and 0.01 mm runout when processed in a single turning setup. If the revision affects fit faces, deep cavities, or long slots, toolpaths, stock allowance, and the reinspection order need reassessment around 0.02 mm flatness and selected +/-0.005 mm precision features. Multi-step outer diameters, internal bores, and flange interfaces also need explicit fixture and inspection datums.

POM Post-Machining Inspection for Precision Gears

Acetal precision parts can keep Ra 3.2 um on standard milled faces while reserving Ra 1.6 um on key functional areas after deburring. Gear, valve-core, locator-pin, and connector-clip interfaces can be reviewed after sampling with CMM, FAI, and material records to confirm 0.015 mm hole position and 0.012 mm coaxial features. Glass-filled POM can reduce surface quality, so roughness on fit faces needs separate confirmation.

Certified Quality System and Precision POM Coverage

XCM CNC organizes Acetal and POM projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes, with DMG, Mazak, Matsuura, and Brother equipment covering high-precision turning and milling. Gear, valve-core, locator, and motion-component programs can confirm grade selection, crystallization control, burr management, and mating-surface requirements during drawing review.

Size Range from Small Connectors to Large Precision Structures

The machining range covers small connector-scale parts, gears, valve cores, locator pins, connector precision parts, larger guide plates, low-friction sliders, and weight-reduction structures used as metal alternatives. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, material grade, crystallization behavior, and fit requirements.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.

Drawing Review Before POM Sampling

Custom POM parts benefit from placing 2D and 3D drawings, mating faces, gear profiles, and grade requirements into DFM review before the sample stage instead of adding the precision strategy later. Valve cores, locator parts, and precision transmission programs can define the drawing revision, machining datum, and sample acceptance priorities up front.

Material Grade Confirmed Before Sampling

Delrin homopolymer, Celcon copolymer, and other POM grades can be evaluated separately for dimensional stability, low-friction behavior, and fatigue resistance before sample approval so a later material change does not create rework. If the design changes, crystallization stress, fit tolerance, and reinspection scope are reviewed again first.
