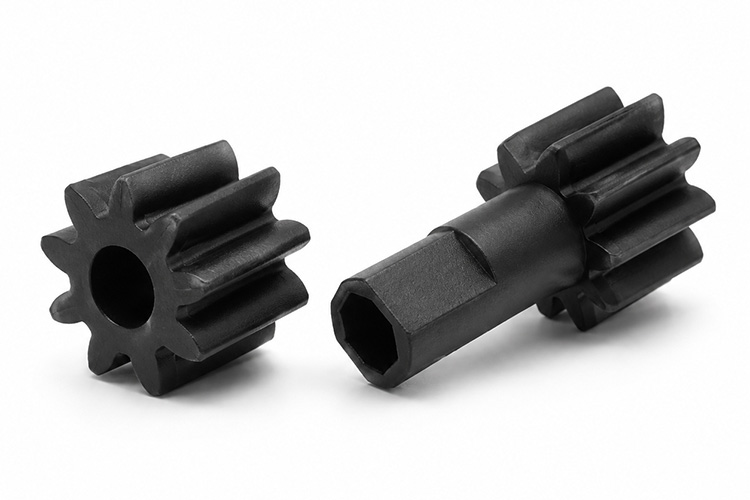

Cost-Effective PEEK CNC Prototype Machining

XCM CNC provides rapid PEEK prototyping for design validation of high-performance polymer parts. The material grade, critical features, and sample inspection priorities are confirmed from the drawing before a pilot-production decision.

For MOQ 1 piece and a 3-7 day sample route, the engineering review covers revision cycles, mating-surface validation, and low-volume transition, including filled-grade differences, overheating risk, and post-processing requirements.

PEEK Rapid Prototypes for Design Validation Cycles

PEEK prototype planning can start from MOQ 1 piece with a 3-7 day sample route before pilot decisions. Selected ±0.005 mm features and 0.02 mm position tolerance are verified with sample data instead of moving directly into production. Complex or multi-face parts can also validate fixturing and datum-transfer feasibility during sampling.

PEEK Revision-Ready Fixturing for Design Iteration

PEEK design updates can recheck 0.02 mm coaxiality and 0.02 mm hole position after each revision loop. When the grade, thin-wall recovery, or fixturing changes, the datum plan and stock allowance are updated together. Inspection items follow the revision, and new critical features are remeasured rather than relying on earlier data.

PEEK Fit Verification for Pilot Assembly Checks

PEEK pilot samples can verify critical hole and mating features, and Ra 1.6 μm turned surfaces on virgin-grade parts before low-volume release. Brackets, housings, and interfaces that require assembly confirmation are checked for fit clearance during sampling. Flatness at 0.02 mm and position tolerance at 0.02 mm are evaluated feature by feature for assembly impact.

PEEK Surface Trials for Production-Ready Approval

PEEK pilot approval can compare Ra 1.6 μm functional faces with clean handling or an edge-polished finish on selected zones before repeat orders. Medical mating faces, high-temperature structures, and metal-replacement interfaces define surface requirements during sampling. The transition from a 3-7 day sample route to the standard 10-15 day production route is agreed before pilot release.

Quality Systems and Equipment Coverage

XCM CNC organizes PEEK projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes, with equipment from brands such as DMG, Mazak, Matsuura, and Brother for turning, milling, and high-temperature precision polymer parts. For virgin, carbon-filled, or glass-filled PEEK, the drawing review can address material grade, overheating risk, and medical or chemical-resistance requirements.

Size Range from Connectors to Structural Parts

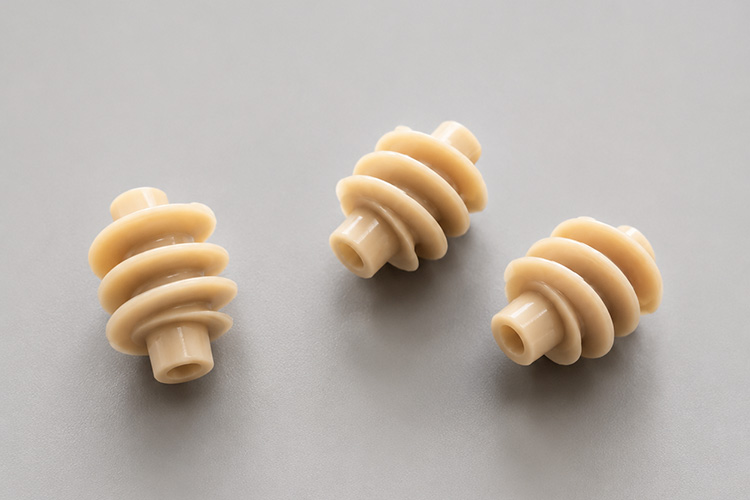

Machining coverage extends from small connectors to larger structural parts, including PEEK insulators, bearing seats, high-temperature precision parts, plates, housings, and metal-replacement structures. Three-axis travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, grade, and thermal-distortion review.

Tiered Equipment Strategy for Cost and Quality

XCM CNC uses a tiered equipment mix from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while high-precision features are assigned to imported machines such as DMG and Mazak. Equipment is matched to the actual tolerance requirement so simple operations do not consume high-hour precision capacity.

Grade Validation Before Pilot Production

If a sample needs to switch among virgin, carbon-filled, and glass-filled PEEK, fixturing, thermal distortion, and critical-face condition can be validated before the next revision. This keeps a high-value prototype from carrying unresolved material changes into pilot production.

Controlled Transition from Prototype to Pilot Run

When a one-piece sample moves into a pilot batch, revision records, critical datums, material grade, and packing requirements can be written back into the order. Medical, aerospace, and UAV prototypes can then transition into the required reinspection plan with fewer repeated confirmations.
