Cost-Effective PTFE CNC Prototype Machining

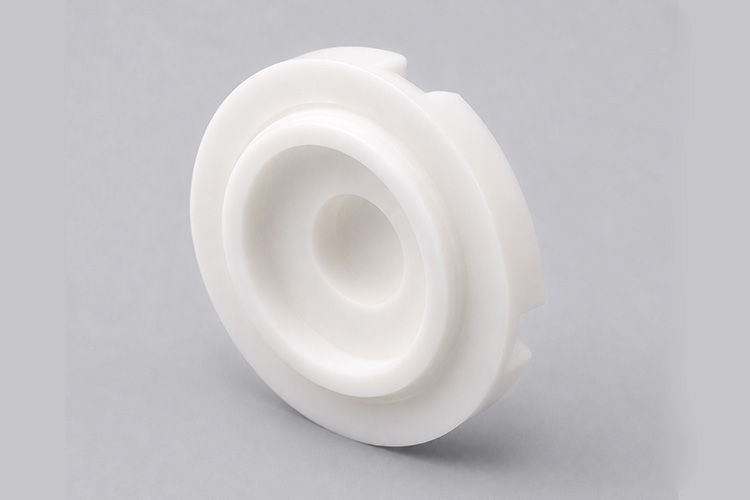

XCM CNC provides rapid PTFE prototyping for design validation of corrosion-resistant sealing parts. The material grade, critical features, and sample inspection priorities are confirmed from the drawing before a pilot-production decision.

PTFE resists most chemical media, provides low friction and self-lubrication, and supports service temperatures from -200 C to 260 C. Prototype planning covers revision cycles, fill-grade differences, creep behavior, and post-processing so sample inspection can establish the production baseline.

PTFE Prototype Lead Time and MOQ

PTFE prototypes start from MOQ 1 piece with a 3-7 day sample route and the same selected ±0.008 mm capability used for production. Sample records identify the drawing revision, fill grade, fixture datums, 0.03 mm hole position, and 0.03 mm coaxiality before a pilot decision.

PTFE Revision Control After Grade or Fixture Changes

Each design revision rechecks 0.03 mm coaxiality and 0.03 mm hole position, with datums and allowance updated to the current version. Grade changes among virgin, glass-filled, carbon-filled, and bronze-filled PTFE trigger renewed springback and fixturing review.

PTFE Pilot Fit Verification

Pilot samples verify critical bores and mating features, Ra 1.6 μm critical-fit surfaces, and 0.03 mm seating-face flatness by drawing review. Assembly-interface dimensions are checked on the physical sample before low-volume release.

PTFE Sample-to-Production Inspection Handoff

Prototype CMM and dimensional records use the same datum plan intended for production. Sample Ra and GD&T results are reviewed with the standard 10-15 day production route so the transition criteria are documented without rebuilding the inspection baseline.

Certified Quality System and PTFE Machining Coverage

XCM CNC organizes PTFE turning, milling, and corrosion-resistant sealing projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes. Equipment from brands such as DMG, Mazak, Matsuura, and Brother supports virgin and filled PTFE parts, with creep risk, fixturing, and chemical-media requirements reviewed from the drawing.

Size Range from Small Seals to Large Liners

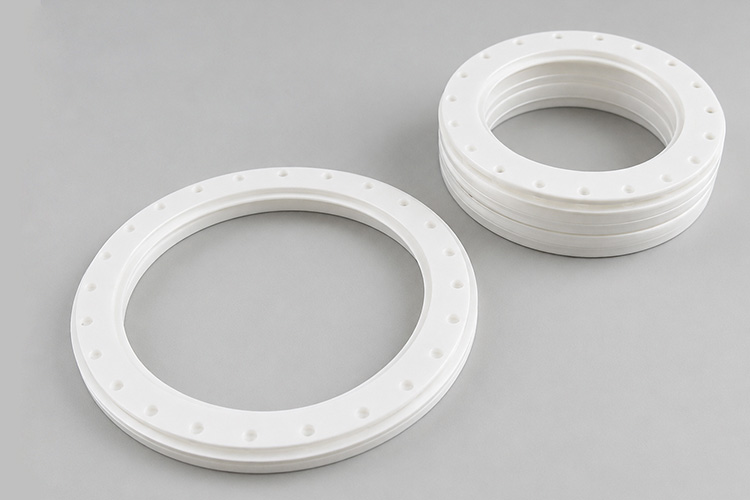

Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm. The range covers PTFE seals, gaskets, low-friction sliding parts, large liners, and corrosion-resistant vessel components, subject to fixturing, creep behavior, and service-media review.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance PTFE operations can run on domestic or Taiwan equipment, while precision sealing faces and high-coaxiality features use imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs to control cost without weakening drawing requirements.

Fill Grade Validated Before Pilot Commitment

Prototype changes among virgin and filled PTFE are used to validate fixturing, creep behavior, and critical-face condition before the next revision. A normal 3-7 day route is evaluated against geometry, grade, and reinspection scope.

Sample Records Carried Into Pilot Runs

When a one-piece sample enters pilot production, revision records, critical datums, grade, inspection reports, and packing requirements are written into the order. Sample CMM and roughness data then establish the reinspection baseline for later batches.
