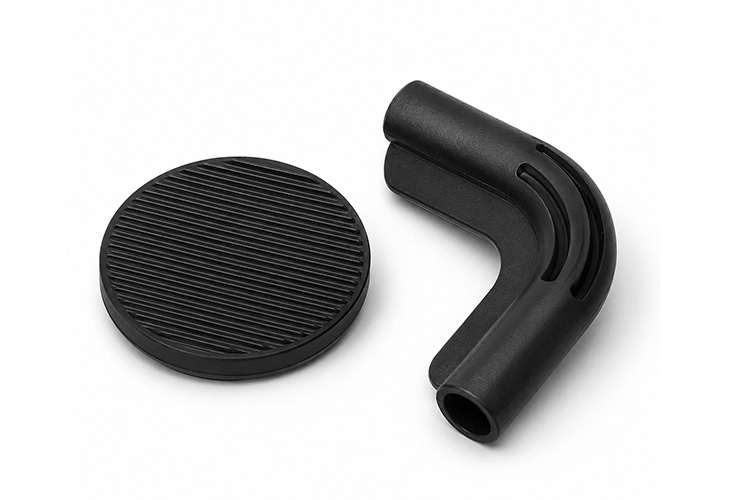

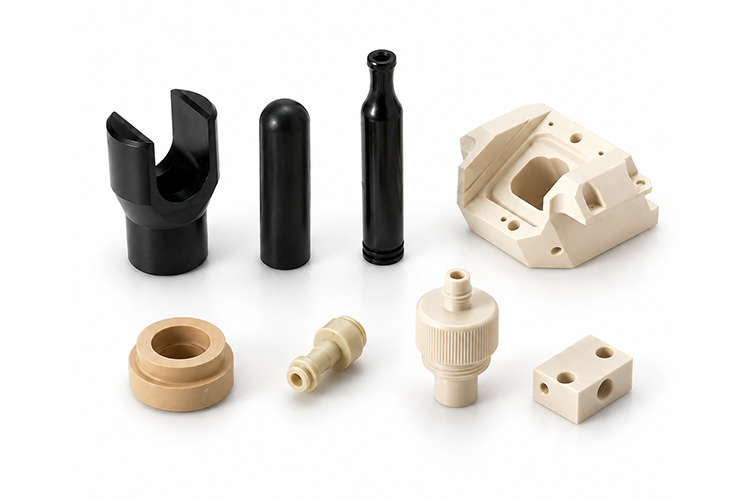

OEM PPS CNC Turned and Milled Parts Supplier

XCM CNC provides custom PPS turning and milling for drawing-based high-temperature engineering plastic projects. DFM review can confirm the material direction, fixturing method, and edge-chipping control before machining starts.

For continuous service around 220 C, V-0 flame-retardant expectations, dimensional stability, and low-creep requirements, sample approval also reviews chemical resistance, metal-replacement direction in heat-zone service, and the response path for design changes.

PPS OEM Drawing Review for 220 C Heat-Zone Features

PPS OEM drawing review can lock selected ±0.005 mm critical features and 0.02 mm position tolerance before sample approval. For virgin, GF40, mineral-filled, and high-temperature PPS used in engine-adjacent parts, insulators, and heat-zone pump or valve structures, stock allowance, fixture datums, and inspection points are reviewed together.

PPS Sample Approval for Thin-Wall and V-0 Parts

PPS sample approval can reserve Ra 1.6 μm turned surfaces on virgin-grade parts and Ra 2.5 μm on GF-filled grades on functional areas. When wall thickness approaches 0.5 mm, critical-fit features are required, or the part needs multi-face fixturing, the first article checks heat buildup, recovery, and the deburring range together.

PPS Revision Control for Stable Low-Creep Fits

PPS revisions should trigger a recheck of 0.02 mm coaxiality and 0.02 mm runout on mating or flange interfaces. When a revision affects deep cavities, long slots, or fit-critical faces, toolpaths, stock allowance, and the reinspection order are reassessed around 0.02 mm flatness and selected ±0.005 mm precision features.

PPS Reinspection After Surface Protection

Protected PPS parts can keep Ra 3.2 μm standard milled faces while selected areas receive edge-smoothed or clean-handled finish review. For high-temperature sensor seats, reflow fixtures, pump or valve impellers, and heat-resistant insulating interfaces, post-sample reinspection can confirm the 0.02 mm position tolerance and 0.02 mm coaxial features recorded in CMM, FAI, and material documentation.

Certified Quality System and PPS Machining Coverage

XCM CNC organizes PPS projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes. Equipment from DMG, Mazak, Matsuura, and Brother supports high-temperature insulators, flame-retardant structures, and pump or valve components, with drawing review used to confirm GF grade, edge-chipping risk, and fixturing requirements.

Size Range from Small Connectors to Large Heat-Zone Structures

The available range covers small connector-scale parts, PPS insulating seats, sensor seats, larger pump or valve components, flame-retardant plates, and metal-replacement structures for high-temperature service. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, brittle-edge risk, GF content, and service temperature review.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision PPS features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so machine cost stays aligned with the drawing.

Responsive Sample-Stage Revision Handling

If sample-stage changes affect wall thickness, mating faces, GF ratio, or service temperature, the quotation range, machining allowance, and reinspection items can be updated against the revised drawing. This supports PPS heat-zone structural parts more effectively than leaving design changes until delivery.

Brittle-Edge Risk Reviewed Before Cutting

PPS projects receive early review of GF-induced tool wear, brittle-edge chipping, and fixture support instead of following a generic plastic-part rhythm. For metal-replacement and engine-bay work, tool selection and reinspection routing are confirmed up front.
