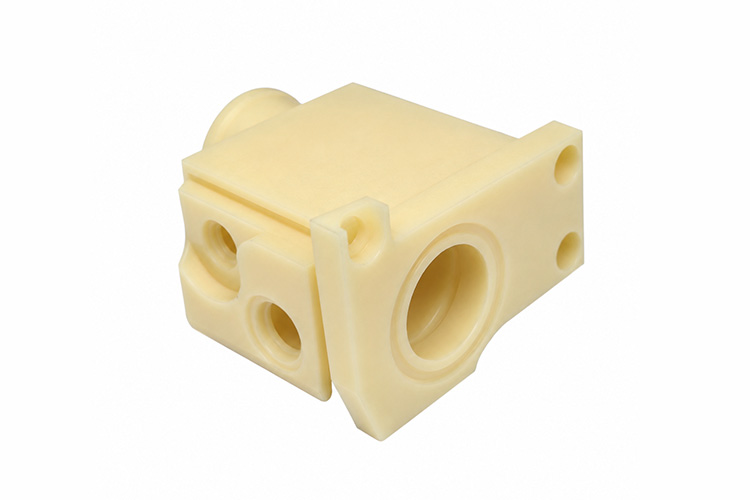

Cost-Effective Nylon (PA) CNC Prototype Machining
Overview
XCM CNC provides rapid Nylon and PA prototyping for design validation of gears, sliders, and guide structures. The sample stage can confirm the PA direction, critical fit features, and inspection priorities from the drawing before the project moves into pilot production.
For wear resistance, self-lubrication, toughness, and precision-machining requirements, the prototype route reviews moisture compensation, gear-fit behavior, and low-noise running validation while the project transitions from rapid samples into low-volume release.
Key Capabilities
- Materials: PA6, PA66, MC Nylon, glass-filled Nylon by drawing review
- Tolerance: +/-0.03 mm standard (non-reinforced PA6/PA66), +/-0.005 mm selected critical features by drawing review
- Surface Finish: Ra 3.2 um milled, Ra 1.6 um precision milled, Ra 1.6-2.5 um turned
- GD&T: Coaxiality 0.012 mm, runout 0.01 mm, cylindricity 0.011 mm for selected features by drawing review
- Max Size: Milling 3000 x 1600 x 1400 mm, turning diameter 1250 x 2000 mm
- Surface Treatment: Deburring, edge smoothing, moisture-conditioning review, or marking by drawing review
- Thread: M2-M220, NPT, BSP, G, PT. M1.4 is not recommended for PA because of edge-breakage risk.
- Prototype: MOQ 1 piece, sample lead time 3-7 days, with the same tolerance standard as production
Nylon Prototype Lead Time Starting from MOQ 1 Piece
Nylon prototype machining can start from MOQ 1 piece with a 3-7 day sample route for design validation before pilot decisions. For PA gears, sliders, guides, and transmission bushings, the sample stage can confirm the grade direction among PA6, PA66, MC Nylon, and glass-filled options, together with moisture-compensation allowance and inspection priorities before committing to the next revision or low-volume trial.
Nylon Revision Iteration for Design Changes
Nylon design revisions can update the fixture setup, stock allowance, and inspection focus after each loop when the drawing changes the datum chain, gear tooth profile, or fit tolerance. Grade switches among PA6, PA66, MC Nylon, and glass-filled PA, together with thin-wall recovery and fit-face changes, also update the datum strategy, moisture compensation, and reinspection scope in the next sample.
PA Fit Verification Before Low-Volume Release
PA pilot samples can verify selected +/-0.005 mm fit features and Ra 1.6 um or Ra 1.6-2.5 um mating surfaces before low-volume release. Gear meshing, slider guidance, and bearing-fit projects can still review 0.02 mm flatness, 0.015 mm position tolerance, and 0.012 mm coaxiality feature by feature against the drawing before the assembly route is approved.
PA Sample-to-Pilot Transition with Consistent Standards
PA sample-to-pilot transition can keep the same tolerance route, the same inspection datum, and the same moisture-compensation plan to avoid rework between prototype and production. For gears, sliders, and guide structures, the sample stage can write the revision record, critical datums, grade decision, and reinspection focus into the order file before volume ramps up.
Specifications
| Product Name | Cost-Effective Nylon (PA) CNC Prototype Machining |
|---|---|
| Manufacturer | XCM CNC |
| Factory Location | Shenzhen, Guangdong, China |
| Quality System | ISO 9001, ISO 13485, IATF 16949, GJB9001C |
| Machining Process | CNC prototype machining |
| Material | Nylon (PA) |
| Material Grade | PA6, PA66, MC Nylon, glass-filled Nylon by drawing review |
| Tolerance | +/-0.03 mm standard (non-reinforced PA6/PA66) |
| Precision Tolerance | +/-0.005 mm selected critical features by drawing review |
| Surface Roughness | Ra 3.2 um milled, Ra 1.6 um precision milled, Ra 1.6-2.5 um turned |
| Surface Treatment | Deburring, edge smoothing, moisture-conditioning review, or marking by drawing review |
| Max Part Size | Milling 3000 x 1600 x 1400 mm / Turning diameter 1250 x 2000 mm |
| Inspection | CMM, roundness tester, height gauge, roughness tester, thread gauges |
| Application | Prototype gears, fit-check sliders, pilot-build nylon motion parts |
| Typical Application | Prototype and pilot-run nylon parts |
| Key Features | Wear-resistant PA machining, rapid sample validation, revision-ready fixturing, low-volume fit checks |
| Critical QC Requirements | Material traceability, moisture-expansion review, tooth-profile inspection, fit-surface check, post-process reinspection |
| Batch Range | MOQ 1 piece prototype to pilot build |
| MOQ | 1 Piece |
| Typical Lead Time | 10-15 business days after drawing review |
| Drawing Formats | STEP, IGS, DWG, PDF, X_T |
| Secondary Process | Deburring, edge smoothing, moisture-conditioning review, marking, and post-machining reinspection |
| Material Certificate | Material certificate by order requirements |
| Material Feature | Wear-resistant polymer, low-noise motion parts, moisture-compensation review |
| Assembly Features | Gears, sliders, bushings, guide rails, and low-noise transmission features by drawing review |
Applications
PA Gear Prototypes and Revision Validation
Typical Parts: Plastic gear, worm gear, transmission bushing
PA gear prototypes can start from MOQ 1 piece and the 3-7 day sample route to validate tooth form, shaft-bore fit, and meshing clearance before pilot production. Sample-stage checks can use the same tolerance standards as production so gear accuracy, hole position, and coaxial features carry directly into the pilot decision.
PA Guide Samples and Fit Adjustment Trials
Typical Parts: Yarn guide, wear slider, cam
PA yarn guides and sliders can use rapid samples to validate guide grooves, sliding faces, and cam profiles against fit-surface roughness and selected +/-0.005 mm features. If the design changes grade or thin-wall behavior, the sample loop can update datums, stock allowance, and reinspection scope before the next version.
Food-Equipment Rail Samples and Pilot Transition
Typical Parts: Wear guide rail, chain plate, guide part
PA rails and chain plates can keep the same tolerance standards, datum plan, and moisture-compensation route from sample to pilot production so approval does not need a new baseline. The sample stage can also write the revision history, critical datums, and reinspection focus into the order file before scale-up.
Conveyor Sprocket Samples and Grade Confirmation
Typical Parts: Conveyor slide rail, guide strip, sprocket
PA sprockets and guide strips can start from MOQ 1 piece so the sample stage confirms PA6, PA66, or MC Nylon direction, moisture-compensation allowance, and fit-surface inspection priorities. Hole arrays, guide edges, and sliding grooves can then adjust stock allowance and reinspection scope through the next revision.
Why Choose Us
Certified Quality System and Nylon Machining Coverage
XCM CNC organizes Nylon and PA projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes, with DMG, Mazak, Matsuura, and Brother equipment supporting turning, milling, and wear-resistant transmission parts. PA6, PA66, MC Nylon, and glass-filled projects can review moisture compensation, gear precision, and wear-surface requirements during drawing review.
Size Range from Small Connectors to Large Wear Structures
The machining range covers small connector-scale parts, PA gears, sliders, bushings, low-noise transmission parts, larger guide rails, conveyor wear parts, and metal-replacement weight-saving structures. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, moisture compensation, material grade, and fit requirements.
Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production
XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.
Prototype and Production Use the Same Standards
PA samples use the same tolerance route, inspection datum, and moisture-compensation approach that later production will follow, which reduces rework after prototype approval. For gears, sliders, and guide parts, the first-article report can also show how the sample baseline maps to later production control.
Revision Response Built Into the Prototype Flow
When the project changes grade, wall thickness, or fit-face geometry, the next sample can update the datum faces, moisture-compensation strategy, and reinspection range together instead of carrying old assumptions into pilot production. The revision record can remain tied to the order file for later traceability.
FAQ
What should be confirmed before starting a Nylon prototype?
A one-piece PA sample usually needs the revision, grade selection such as PA6, PA66, MC Nylon, or glass-filled material, critical dimensions, and service condition confirmed first. If the project also includes gear teeth, fit faces, or reinforced grades, the moisture-compensation plan and reinspection focus should be locked at the same time.
How long does a Nylon prototype take?
The standard PA sample route is usually 3-7 days from MOQ 1 piece. The actual lead time still depends on geometry, material availability, and inspection scope. Glass-filled materials, deep cavities, and multi-face fixturing can require additional process and reinspection time.
Are Nylon prototype tolerances the same as production?
Yes. Samples and production can use the same tolerance standards, inspection datums, and moisture-compensation strategy so approval does not need a different baseline. First-article reports can also identify where the sample and production routes are aligned.
How do you handle Nylon design revisions during prototyping?
When the revision changes grade, thin-wall behavior, or fit faces, the next sample updates the datum plan, moisture-compensation strategy, and critical-dimension reinspection range together. Revision records, change reasons, and reinspection results can stay tied to the order file for traceability.
How do you move from Nylon prototypes to pilot runs?
The prototype-to-pilot transition can keep the same tolerance route, inspection datum, and moisture-compensation strategy so approval does not create a second process baseline. The sample file can also write the revision record, grade decision, and reinspection focus into the pilot order before scale-up.
Can you switch Nylon grades between prototype iterations?
Yes. A prototype loop can compare PA6, PA66, MC Nylon, or glass-filled grades against wear, toughness, and moisture-compensation requirements. When the grade changes, stock allowance and reinspection scope are reviewed again to keep the next sample aligned with the drawing.
