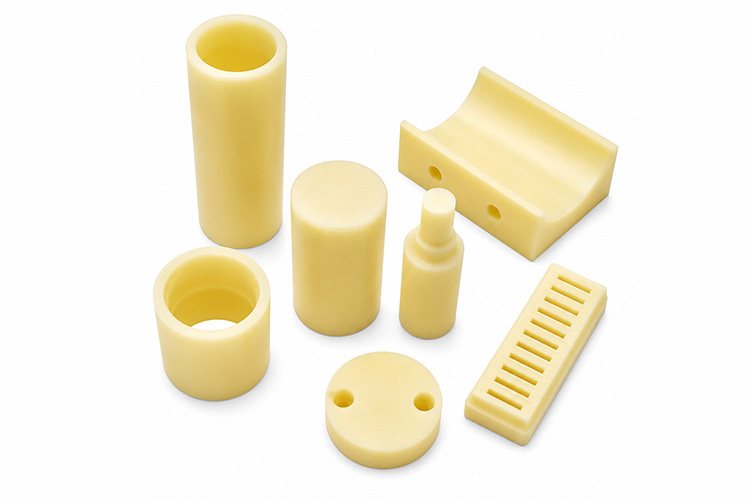

High-Precision Nylon (PA) CNC Machined Parts Supplier

XCM CNC can plan precision Nylon and PA machining around critical tolerances, fixture datums, and CMM inspection for gears, sliders, and wear-resistant guide components defined by the drawing.

For high-precision machining, wear resistance, self-lubrication, and metal-replacement programs used for weight and noise reduction, the process focuses on moisture-expansion compensation, gear-tooth accuracy, and post-process reinspection while sample builds verify position tolerance and fit holes.

Nylon Tolerance Limits for Selected Features

Nylon precision tolerance can reach selected +/-0.005 mm critical features, 0.006 mm roundness on turned diameters, and 0.01 mm hole position on datum-based hole patterns by drawing review. For PA6, PA66, and MC Nylon gears, bushings, and fit-hole projects, the suitability of those limits still depends on moisture behavior, wall thickness, fixturing, and measurement timing rather than acting as a blanket claim.

Nylon Inspection Equipment for GD&T Verification

Nylon GD&T verification can use a Hexagon Inspector Classic CMM for 0.015 mm position tolerance and 0.02 mm flatness, a Leader NCA8106 for 0.006 mm roundness and 0.011 mm cylindricity, and a TRIMOS 600L height gauge for 0.01 mm runout on selected features. Gear teeth, fit holes, and coaxial features still need the measurement method and equipment capability confirmed during drawing review with moisture-compensated dimensions.

PA Surface Roughness Grading for Cost Control

PA roughness grading can separate Ra 3.2 um standard milled faces, Ra 1.6 um precision milled mating surfaces, and Ra 1.6-2.5 um turned bores for selected functional areas. On gear meshing faces, sliding fits, and bearing bores, roughness targets still need to match the tolerance grade, inspection method, and cost budget so the whole part is not forced into unnecessary high-finish machining.

PA In-Process Verification for Moisture-Sensitive Parts

PA in-process verification can check selected +/-0.005 mm critical dimensions and 0.02 mm flatness at stabilization points before final inspection, especially on moisture-sensitive PA6 and PA66 parts with H7 bores or precision gear teeth. Process review still has to define stabilization time, environment, and reinspection nodes so the final CMM datum matches the in-process control plan.

Certified Quality System and Nylon Machining Coverage

XCM CNC organizes Nylon and PA projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes, with DMG, Mazak, Matsuura, and Brother equipment supporting turning, milling, and wear-resistant transmission parts. PA6, PA66, MC Nylon, and glass-filled projects can review moisture compensation, gear precision, and wear-surface requirements during drawing review.

Size Range from Small Connectors to Large Wear Structures

The machining range covers small connector-scale parts, PA gears, sliders, bushings, low-noise transmission parts, larger guide rails, conveyor wear parts, and metal-replacement weight-saving structures. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, subject to fixturing, moisture compensation, material grade, and fit requirements.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.

Inspection Equipment Mapped to Limit Capability

A Hexagon Inspector Classic CMM can support 0.015 mm position tolerance and 0.02 mm flatness verification, a Leader NCA8106 roundness tester can support 0.006 mm roundness and 0.011 mm cylindricity, and a TRIMOS 600L height gauge can support 0.01 mm runout checks. Precision PA projects still need the inspection method, equipment range, and moisture-compensation plan confirmed during process review.

Stabilization and In-Process Control for Precision PA

On moisture-sensitive PA6 and PA66 precision parts, stabilization nodes can be arranged after roughing, before finishing, and before final inspection with the timing defined by grade and environment. In-process reinspection around selected +/-0.005 mm and 0.02 mm flatness helps keep final CMM verification aligned with the real process condition.
