Overview
XCM CNC balances PVDF machining cost through tolerance grading, material yield, process consolidation, and structural simplification instead of presenting a premium chemical-resistant part as a generic low-cost option. Cheap cnc machining services from a direct factory supplier.
For strong-acid and alkali resistance, large-format machining, and fluid-system demand, the process separates functional sealing faces from standard outer profiles and reduces unnecessary reinspection while still protecting the heat-resistance and high-purity requirements of the application.
Key Capabilities
- Materials: Natural PVDF, industrial PVDF, weldable PVDF, high-purity PVDF by drawing review
- Tolerance: ±0.05 mm standard CNC machining tolerance
- Surface Finish: Ra 3.2 μm standard, Ra 1.6 μm precision
- GD&T: Coaxiality 0.03 mm, runout 0.03 mm, cylindricity 0.03 mm
- Max Size: Milling 3000 x 1600 x 1400 mm, turning diameter 1200 x 2500 mm
- Surface Treatment: Deburring, weld-surface preparation, edge smoothing, or clean handling by drawing review
- Thread: M3–M64, NPT/BSP/G/PT (1/8″–2″)
- Cost Note: Standard ±0.05 mm and Ra 3.2 μm are included in base machining cost, while tighter specifications are priced separately
Tolerance Grading for Cost Control on PVDF Parts
PVDF cost planning can keep standard ±0.05 mm dimensions in the base route and reserve selected ±0.008 mm precision only for critical features. Functional holes can be evaluated around 0.03 mm position tolerance, while noncritical outer profiles avoid the same high-precision process and inspection cost.
Allowance Planning for Material Yield on Large PVDF Parts
PVDF allowance planning can combine Ra 3.2 μm standard milled faces with Ra 1.6 μm precision areas to reduce unnecessary finishing time. Large corrosion-resistant tanks, valve parts, piping interfaces, 0.3 mm minimum slot widths, and stock allowance are balanced together with process consolidation and inspection scope.
Inspection Scope Optimization for Small-Batch PVDF Parts
PVDF small-batch parts can focus CMM checks on 0.03 mm coaxiality and 0.03 mm hole position instead of full-field overinspection. Material changes among natural, industrial, weldable, and high-purity PVDF, or deep-cavity mating faces, can adjust the inspection scope to follow the drawing datum, consolidated process, and finishing route.
Surface Finish Zoning for Value PVDF Parts
Value-oriented PVDF parts can keep weld-surface preparation or clean-handled finish only on functional zones while other faces remain at the standard Ra 3.2 μm finish. Samples and repeat orders still keep the normal 10-15 day route and drawing-based reinspection conditions instead of promising a fixed low price.
Specifications
| Product Name | Cheap PVDF CNC Machined Parts Supplier |
|---|---|
| Manufacturer | XCM CNC |
| Factory Location | Shenzhen, Guangdong, China |
| Quality System | ISO 9001, ISO 13485, IATF 16949, GJB9001C |
| Machining Process | CNC machining |
| Material | PVDF |
| Material Grade | Natural PVDF, industrial PVDF, weldable PVDF, high-purity PVDF by drawing review |
| Tolerance | ±0.05 mm standard CNC machining tolerance |
| Precision Tolerance | ±0.008 mm for selected critical features by drawing review |
| Surface Roughness | Ra 3.2 μm standard, Ra 1.6 μm precision |
| Max Part Size | Milling 3000 x 1600 x 1400 mm / Turning diameter 1200 x 2500 mm |
| Inspection | CMM, roundness tester, height gauge, roughness tester, thread gauges |
| Application | Cost-balanced chemical guards, prototype fluid fittings, corrosion-resistant support details |
| Typical Application | Cost-controlled PVDF fluid parts |
| Key Features | Chemical-resistant PVDF machining, tolerance grading, allowance planning, process consolidation |
| Critical QC Requirements | Material traceability, thermal-color-change review, weld-face inspection, large-part distortion control, post-process reinspection |
| Batch Range | 1 piece to planned repeat batches |
| MOQ | 1 Piece |
| Typical Lead Time | 10-15 business days after drawing review |
| Drawing Formats | STEP, IGS, DWG, PDF, X_T |
| Secondary Process | Deburring, weld-surface preparation, edge smoothing, clean handling, and post-machining reinspection |
| Material Certificate | Material certificate by order requirements |
| Material Feature | Strong-acid-and-alkali resistant polymer, high-purity fluid-system review, large-format chemical parts |
| Critical Tolerance Control | Flatness 0.03 mm, position tolerance 0.03 mm, hole position 0.03 mm by drawing review |
Applications
Chemical Valve Parts and Corrosion-Resistant Fittings

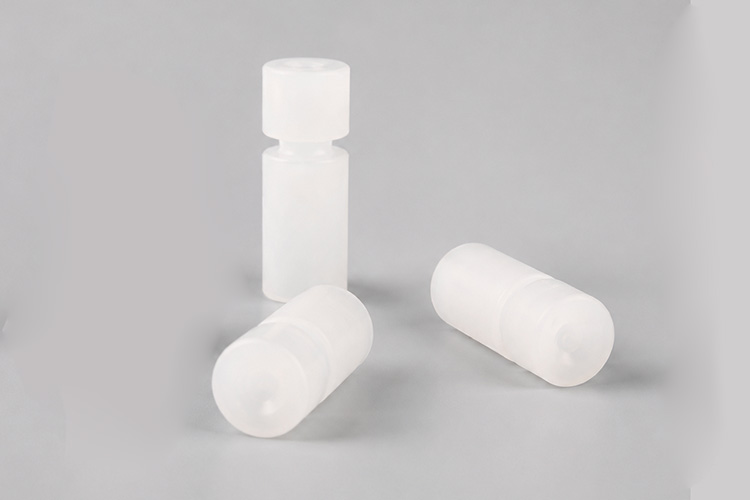

Typical Parts: Corrosion-resistant valve part, fitting, piping part
PVDF resistance to strong acids and alkalis, temperature stability, and low extractables suit valves, fittings, and piping components in corrosion-resistant fluid systems. Sealing faces, flow holes, and connection datums can be graded by function so precision budget stays on sealing and assembly features while noncritical outer profiles remain on standard tolerances.
Corrosion-Resistant Liner Plates and Lining Parts
Typical Parts: Liner plate, tank liner, sealing liner ring
PVDF large-part machining capability and chemical stability suit tank liners, liner plates, and sealing liner rings. Large edges, mounting holes, and sealing transitions can use stock planning and selective inspection to control cost, while critical installation holes keep the required positional accuracy and the rest stays on standard machining routes.
Lithium Chemical Components and Support Parts

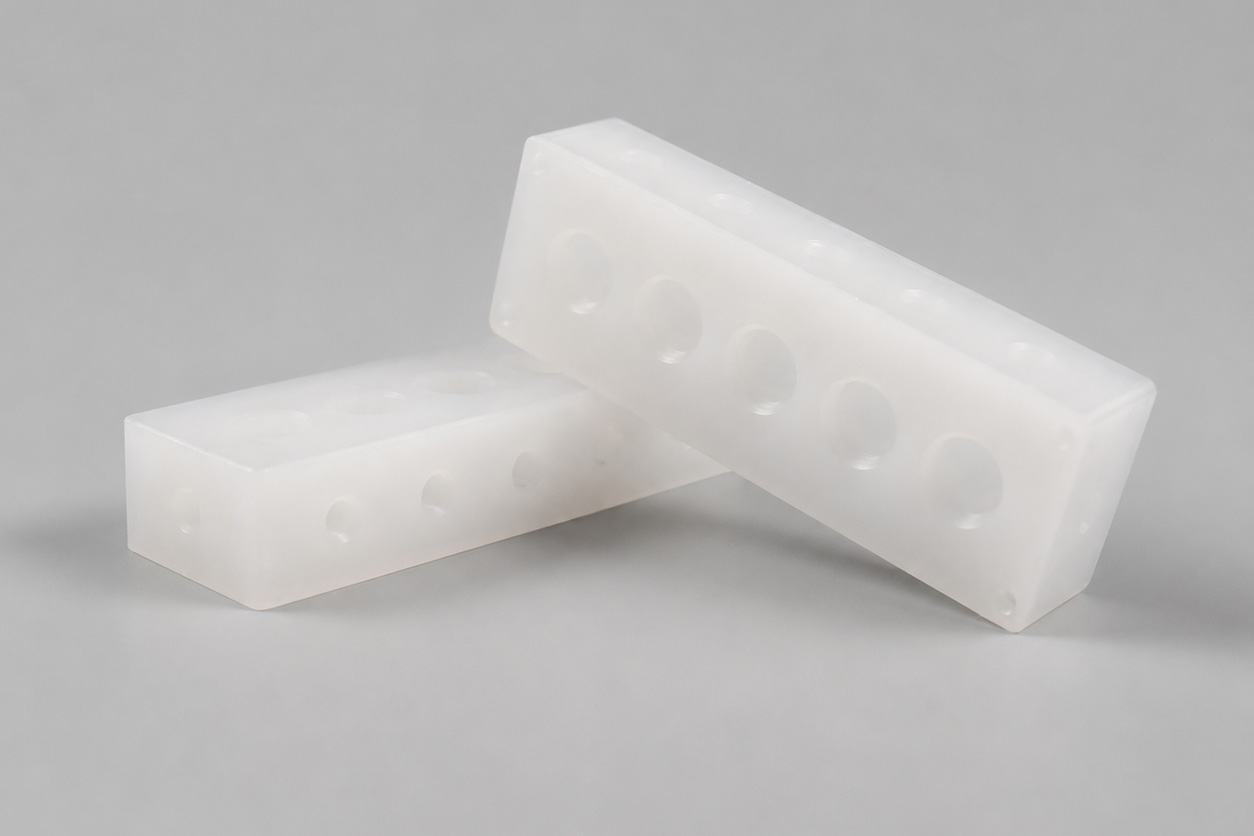

Typical Parts: Electrolyte-resistant part, support part, fluid distribution block
PVDF performance against electrolyte exposure, heat, and purity requirements suits chemical-service components in lithium and photovoltaic equipment. Hole positions, fluid interfaces, and support faces can be processed by function, keeping fluid-contact surfaces on tighter finish requirements while support areas stay on standard roughness.
Ultrapure-Water Parts and Valve Seats
Typical Parts: Piping fitting, valve seat, wetted block
PVDF low extractables and chemical resistance suit wetted blocks, valve seats, and piping fittings in ultrapure-water systems. High-purity handling and precision inspection can stay concentrated on wetted and sealing areas, while non-wetted, non-sealing zones follow standard operations to control total cost.
Why Choose Us
Certified Quality System and PVDF Machining Coverage
XCM CNC organizes PVDF projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes. Equipment from DMG, Mazak, Matsuura, and Brother supports chemical-resistant fluid parts, large liners, and high-purity components, with drawing review used to confirm cutting heat, weld-surface pre-machining, and large-part fixturing requirements.
Size Range from Small Fittings to Large Corrosion-Resistant Structures
The range covers small connector-scale parts, PVDF valves, fittings, piping components, weld-surface pre-machined parts, larger liner plates, corrosion-resistant tank parts, and large chemical-service components for lithium and fluid equipment. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1200 x 2500 mm, subject to fixturing, cutting heat, weld allowance, and media-condition review.
Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production
XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision PVDF features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.
Cost Reduction Starts with Functional Review
The first step in reducing PVDF cost is separating aggressive-chemical functional faces, weld-allowance faces, and standard structural faces instead of quoting every position at the same specification. Cost-sensitive projects can identify which locations actually need high-purity handling and temperature-control requirements.
Layered Operations and Stock Planning
PVDF cost can be managed through layered stock planning, process consolidation, and inspection scope rather than by weakening key functions. Budget stays concentrated on the positions that affect fluid sealing, weld preparation, and media resistance.
FAQ
What affects PVDF machining cost the most?
Large stock size, demanding weld surfaces, full-part tight tolerances, high-purity requirements, and extensive reinspection usually add the most cost to PVDF parts. Functional grading between critical and standard areas usually keeps total cost more manageable.
How do you reduce PVDF machining cost without losing chemical resistance?
Cost reduction usually starts from tolerance grading, stock planning, weld-allowance strategy, process consolidation, and inspection-scope optimization rather than weakening key functions. Strong chemical resistance, temperature performance, and fluid-system requirements still have to meet the drawing and application.
What temperature range is usually considered for PVDF parts?
PVDF projects are usually evaluated first around continuous service near 150 C rather than treating higher-temperature conditions as equivalent to a higher-grade polymer by default. The final range still depends on structure, media, and service condition.
Can PVDF parts be prepared for welding after CNC machining?
PVDF parts can usually be pre-machined around weld-surface allowance, face condition, and assembly requirements. The exact welding method, allowance, and reinspection scope still depend on the drawing and assembly standard.
What is included in the base PVDF machining cost?
Base machining usually includes standard ±0.05 mm dimensional tolerance and Ra 3.2 μm milled surfaces. Tighter precision such as selected ±0.008 mm features, finer roughness such as Ra 1.6 μm precision surfaces, GD&T control, and high-purity handling are quoted separately.
Can small-batch PVDF parts still benefit from cost optimization?
Yes. Small-batch PVDF parts can still reduce unit cost through tolerance grading, selective inspection, and process consolidation. Even at low volume, concentrating precision and inspection on functional areas helps control price without dropping the required performance.
