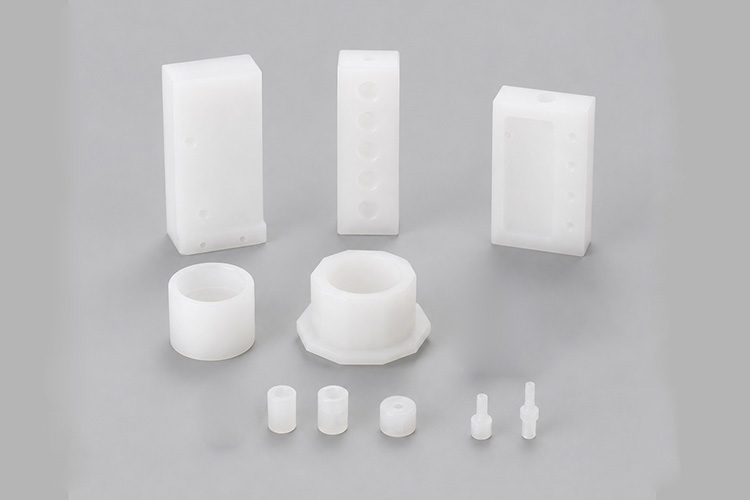

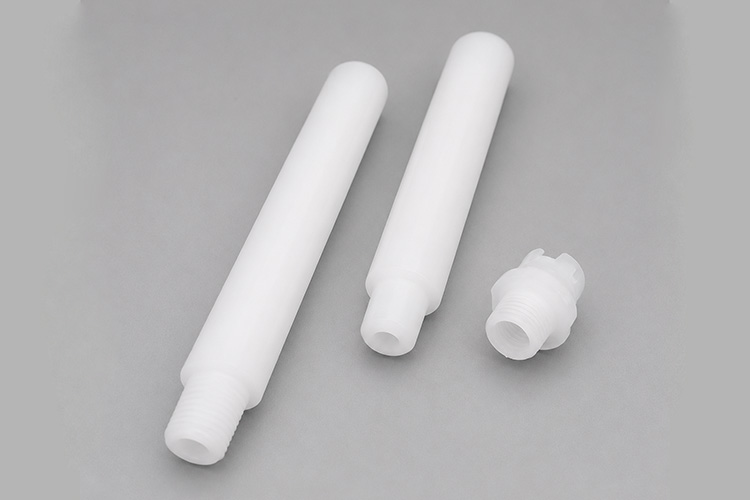

OEM PVDF CNC Turned and Milled Parts Supplier

XCM CNC provides custom PVDF turning and milling for drawing-based chemical-resistant and fluid-system projects. During drawing review, the machining team can confirm the material direction, weld allowance, and thermal-control requirements before cutting.

For strong-acid and alkali resistance, service temperatures around 150 C, and high-purity low-extractables requirements, the sample stage reviews large-part machining capacity, fluid-system interfaces, design changes, and the conditions for later low-volume release.

PVDF Drawing-Based DFM for Corrosion-Resistant Valve Parts

PVDF OEM drawing review can lock selected ±0.008 mm critical features and 0.03 mm position tolerance before sample approval. Changes among natural, industrial, weldable, and high-purity PVDF, together with large corrosion-resistant tanks, valve parts, piping interfaces, and 0.03 mm hole-position requirements, are reviewed with stock allowance, fixture datums, and inspection points during DFM.

PVDF Sample Approval for High-Temperature Thin-Wall Parts

PVDF sample approval can reserve Ra 1.6 μm mating faces and Ra 1.6 μm precision bores on functional areas by drawing review. When wall thickness approaches 0.5 mm, critical-fit features are required, or the part needs multi-face fixturing, first-article approval checks heat buildup, recovery, and the deburring range.

PVDF Revision Control for Coaxiality and Runout

PVDF revisions should trigger a recheck of 0.03 mm coaxiality and 0.03 mm runout on mating or flange interfaces. When the revision affects deep cavities, long slots, or fit-critical faces, toolpaths, stock allowance, and the reinspection order are reassessed around 0.03 mm flatness and selected ±0.008 mm precision features.

PVDF Reinspection After Weld-Surface Preparation

Protected PVDF parts can keep Ra 3.2 μm standard milled faces while selected areas receive weld-surface preparation or clean-handled finish review. Chemical-fluid valve parts, corrosion-resistant liners, lithium-battery components, and ultrapure-water interfaces can be rechecked after sampling with CMM, FAI, and material records for 0.03 mm hole position and 0.03 mm coaxial features.

Certified Quality System and PVDF Machining Coverage

XCM CNC organizes PVDF projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes. Equipment from DMG, Mazak, Matsuura, and Brother supports chemical-resistant fluid parts, large liners, and high-purity components, with drawing review used to confirm cutting heat, weld-surface pre-machining, and large-part fixturing requirements.

Size Range from Small Fittings to Large Corrosion-Resistant Structures

The range covers small connector-scale parts, PVDF valves, fittings, piping components, weld-surface pre-machined parts, larger liner plates, corrosion-resistant tank parts, and large chemical-service components for lithium and fluid equipment. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1200 x 2500 mm, subject to fixturing, cutting heat, weld allowance, and media-condition review.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision PVDF features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.

Responsive Sample-Stage Revision Handling

If the sample stage changes the process media, weld position, fit surface, or large-part structure, the quotation range, stock allowance, and reinspection items can be reviewed again against the revised drawing. That supports PVDF fluid-system parts and large corrosion-resistant components more effectively than leaving design changes until delivery.

Large PVDF Parts Reviewed Early

Large PVDF parts receive early review of fixture support, cutting heat, and weld-surface pre-machining so overheating discoloration and later assembly offset can be reduced. High-purity and aggressive-chemical projects also confirm cutting parameters and the reinspection route at the same stage.
