Overview
XCM CNC provides rapid PVDF prototyping for design validation of corrosion-resistant valves, piping interfaces, and large chemical structures. The sample stage can confirm PVDF direction, key fits, and inspection priorities before the project moves toward pilot production.
For strong-acid and alkali resistance, service temperatures around 150 C, and high-purity low-extractables requirements, the prototype route reviews weld allowance, heat control, design iteration, and assembly feedback across the transition into low-volume production.
Key Capabilities
- Materials: Natural PVDF, industrial PVDF, weldable PVDF, high-purity PVDF by drawing review
- Tolerance: ±0.05 mm standard CNC machining tolerance
- Surface Finish: Ra 3.2 μm standard, Ra 1.6 μm precision
- GD&T: Coaxiality 0.03 mm, runout 0.03 mm, cylindricity 0.03 mm
- Max Size: Milling 3000 x 1600 x 1400 mm, turning diameter 1200 x 2500 mm
- Surface Treatment: Deburring, weld-surface preparation, edge smoothing, or clean handling by drawing review
- Thread: M3–M64, NPT/BSP/G/PT (1/8″–2″)
- Prototype: MOQ 1 piece, sample lead time 3-7 days, with the same tolerance standard as production
Prototype Lead Time for PVDF Sample Runs
PVDF prototype planning can start from MOQ 1 piece with a 3-7 day sample route before pilot decisions. Selected ±0.008 mm precision features and 0.03 mm position tolerance still need sample-based confirmation on critical structures instead of moving directly into production.
Revision Iteration for PVDF Design Validation
PVDF design updates can recheck 0.03 mm coaxiality and 0.03 mm hole position after each revision loop. Changes among natural, industrial, weldable, and high-purity PVDF, thin-wall recovery, and fixturing differences can all update the datum plan, stock allowance, and reinspection items together.
Fit Verification for Low-Volume PVDF Trials
PVDF pilot samples can verify critical hole and mating features, and Ra 1.6 μm precision surfaces before low-volume release. Brackets, housings, and interfaces that need assembly confirmation also keep 0.03 mm flatness and 0.03 mm position tolerance under drawing-based review during the sample stage.
Surface Trials for PVDF Pilot Approval
PVDF pilot approval can compare Ra 1.6 μm functional faces with weld-surface preparation or clean-handled finish on selected zones before repeat orders. Chemical-fluid valve parts, corrosion-resistant liners, lithium components, and ultrapure-water interfaces also review the transition between the 3-7 day sample route and the 10-15 day standard route.
Specifications
| Product Name | Cost-Effective PVDF CNC Prototype Machining |
|---|---|
| Manufacturer | XCM CNC |
| Factory Location | Shenzhen, Guangdong, China |
| Quality System | ISO 9001, ISO 13485, IATF 16949, GJB9001C |
| Machining Process | CNC prototype machining |
| Material | PVDF |
| Material Grade | Natural PVDF, industrial PVDF, weldable PVDF, high-purity PVDF by drawing review |
| Tolerance | ±0.05 mm standard CNC machining tolerance |
| Precision Tolerance | ±0.008 mm for selected critical features by drawing review |
| Surface Roughness | Ra 3.2 μm standard, Ra 1.6 μm precision |
| Surface Treatment | Deburring, weld-surface preparation, edge smoothing, or clean handling by drawing review |
| Max Part Size | Milling 3000 x 1600 x 1400 mm / Turning diameter 1200 x 2500 mm |
| Inspection | CMM, roundness tester, height gauge, roughness tester, thread gauges |
| Application | Prototype valve details, fit-check pipeline parts, pilot-build PVDF interfaces |
| Typical Application | Prototype and pilot-run PVDF parts |
| Key Features | Chemical-resistant PVDF machining, rapid sample validation, revision-ready fixturing, low-volume fit checks |
| Critical QC Requirements | Material traceability, thermal-color-change review, weld-face inspection, large-part distortion control, post-process reinspection |
| Batch Range | MOQ 1 piece prototype to pilot build |
| MOQ | 1 Piece |
| Typical Lead Time | 10-15 business days after drawing review |
| Drawing Formats | STEP, IGS, DWG, PDF, X_T |
| Secondary Process | Deburring, weld-surface preparation, edge smoothing, clean handling, and post-machining reinspection |
| Material Certificate | Material certificate by order requirements |
| Material Feature | Strong-acid-and-alkali resistant polymer, high-purity fluid-system review, large-format chemical parts |
| Assembly Features | Chemical valve parts, pipeline fittings, tank liners, and fluid-system interfaces by drawing review |
| Critical Tolerance Control | Flatness 0.03 mm, position tolerance 0.03 mm, hole position 0.03 mm by drawing review |
Applications
Valve Samples and Pipeline-Fitting Validation Parts

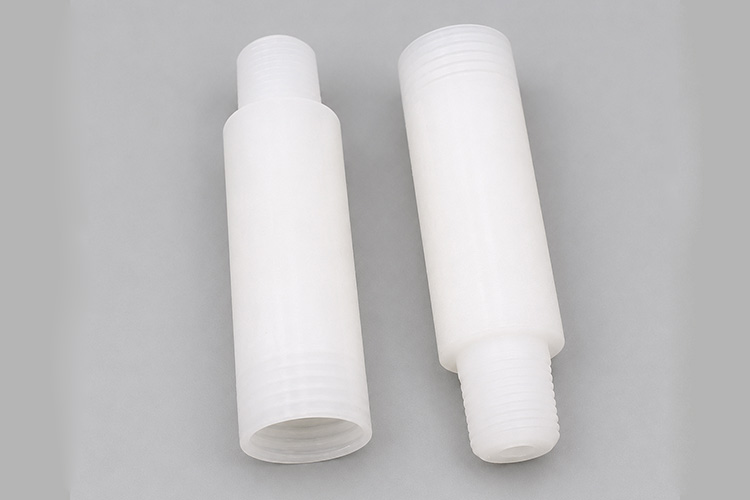

Typical Parts: Corrosion-resistant valve part, fitting, piping part
PVDF resistance to strong acids and alkalis, temperature stability, and low extractables suit corrosion-resistant valves, fittings, and piping parts. Sealing faces, flow holes, and connection datums can start validation from MOQ 1 piece and a 3-7 day sample route, so sealing behavior and assembly interference are checked before the project moves into low volume.
Liner Samples and Tank-Liner Validation Parts

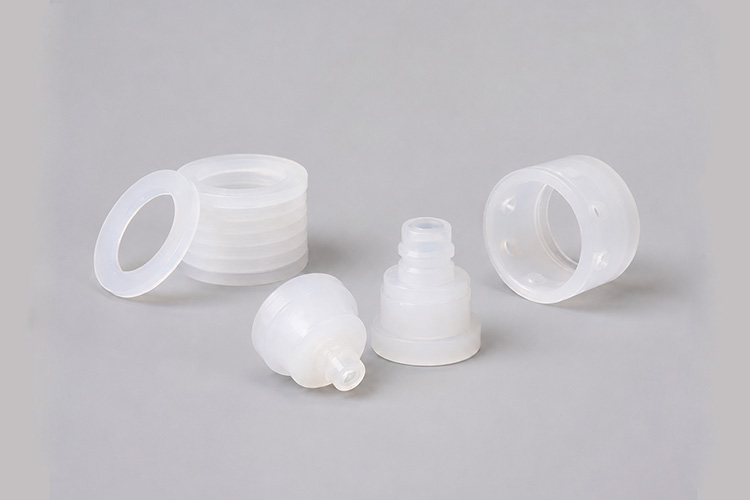

Typical Parts: Liner plate, tank liner, sealing liner ring
PVDF large-part machining capability and chemical stability suit corrosion-resistant liner plates, tank liners, and sealing liner rings. Large edges, mounting holes, and sealing transitions can be tested in the sample stage for distortion control and hole-position accuracy before the fixturing plan and weld allowance are finalized.
Lithium Component Samples and Support-Part Trials
Typical Parts: Electrolyte-resistant part, support part, fluid distribution block
PVDF performance against electrolyte exposure, heat, and purity requirements suits sample validation for chemical-service parts in lithium and photovoltaic equipment. Hole positions, fluid interfaces, and support faces can be checked during sampling for fit precision and surface condition before pilot release.
Ultrapure-Water Samples and Valve-Seat Validation Parts
Typical Parts: Piping fitting, valve seat, wetted block
PVDF low extractables and chemical resistance suit sample validation for wetted blocks, valve seats, and piping fittings in ultrapure-water systems. Wetted holes, valve-seat sealing faces, and connection edges can be checked for roughness and cleanliness during sampling so the finishing method is confirmed from test results.
Why Choose Us
Certified Quality System and PVDF Machining Coverage
XCM CNC organizes PVDF projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes. Equipment from DMG, Mazak, Matsuura, and Brother supports chemical-resistant fluid parts, large liners, and high-purity components, with drawing review used to confirm cutting heat, weld-surface pre-machining, and large-part fixturing requirements.
Size Range from Small Fittings to Large Corrosion-Resistant Structures
The range covers small connector-scale parts, PVDF valves, fittings, piping components, weld-surface pre-machined parts, larger liner plates, corrosion-resistant tank parts, and large chemical-service components for lithium and fluid equipment. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1200 x 2500 mm, subject to fixturing, cutting heat, weld allowance, and media-condition review.
Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production
XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision PVDF features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.
Fast PVDF Prototype Turnaround
PVDF prototype work is best used to confirm the revision, process media, weld surfaces, and critical dimensions before committing to a pilot batch. A 3-7 day prototype route can usually be evaluated first, with the final schedule still depending on size, structure, and reinspection scope.
Clean Handoff from Revision to Pilot Build
When a one-piece sample moves into pilot production, design-validation results, weld changes, and inspection priorities can be written back into the order to reduce repeated confirmation before scale-up. That is especially useful on corrosion-resistant fluid parts and liner components where revision control matters.
FAQ
How do you choose PVDF, PTFE, or PFA for chemical equipment parts?
PVDF is usually the first material to evaluate when the project emphasizes stronger chemical resistance at elevated temperature, weldable machining routes, and large-format machining capability. PTFE or PFA may fit better when media conditions or purity targets are different. The final decision still depends on the drawing, media, temperature, and assembly requirements.
What is the MOQ and lead time for PVDF prototypes?
MOQ starts at 1 piece and sample lead time is usually 3-7 days, depending on size, structure, and reinspection scope. Prototype tolerance follows the same standard as production so design-validation results can carry directly into pilot planning.
What temperature range is usually considered for PVDF parts?
PVDF projects are usually evaluated first around continuous service near 150 C rather than treating higher-temperature conditions as equivalent to a higher-grade polymer by default. The final range still depends on structure, media, and service condition.
How do you handle design revisions during PVDF prototyping?
Each design revision rechecks key features, the datum chain, and reinspection items. If the change affects material choice, thin-wall recovery, or fixturing, the stock allowance and inspection path are updated with the new revision to avoid cumulative error.
Can PVDF parts be prepared for welding after CNC machining?
PVDF parts can usually be pre-machined around weld-surface allowance, face condition, and assembly requirements. The exact welding method, allowance, and reinspection scope still depend on the drawing and assembly standard.
How do you move from PVDF prototypes to small-batch production?
Issues exposed during sampling such as discoloration, weld preparation, and reinspection scope are written back into the drawing before low-volume production starts. Any extra packing or post-processing requirements should also be confirmed before the pilot batch is released.
