High-Precision PVDF CNC Machined Parts Supplier

XCM CNC can plan precision PVDF machining around critical tolerances, fixturing datums, and CMM inspection for valves, fittings, and large fluid structures.

For large-format machining, fluid-system interfaces, and high-purity low-extractables projects, the process controls overheating discoloration, weld-surface allowance, and post-process reinspection while the sample stage verifies position, assembly holes, and sealing-interface stability.

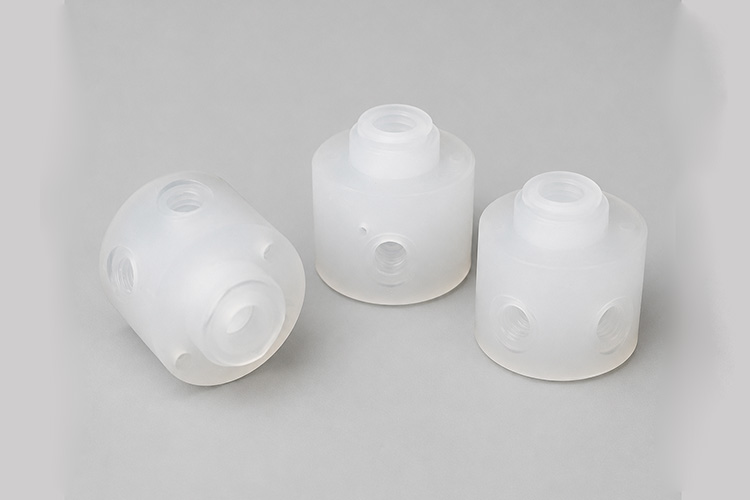

GD&T Control for Precision Datums on PVDF Valve Bodies

PVDF precision datums can be reviewed against 0.03 mm flatness and 0.03 mm position tolerance before fixture release. Critical datum faces, installation holes, and degree-of-freedom sensitive structures can be checked in CMM inspection against the drawing datum within one setup to avoid extra error from re-fixturing.

Single-Setup Datums for PVDF Hole Patterns

PVDF hole patterns can target 0.03 mm hole position and 0.03 mm coaxiality when the datum chain is defined in one setup. On large corrosion-resistant tanks, valve parts, piping interfaces, and fit-critical projects, critical hole and mating features still require recovery and thermal-influence review by drawing.

Surface Roughness Grading for PVDF Mating Features

PVDF mating features can combine Ra 1.6 μm bored faces with Ra 1.6 μm precision diameters for critical-fit evaluation. For holes, end faces, and coaxial features, 0.03 mm cylindricity and 0.03 mm runout need to be confirmed together with the measurement method so the machining datum and inspection datum stay aligned.

Post-Finish Reinspection for PVDF Critical Areas

Selected ±0.008 mm PVDF features can remain after finishing only when reinspection follows the same datum plan. Areas that receive weld-surface preparation or clean-handled finish also require renewed checks of 0.03 mm flatness and 0.03 mm position tolerance to avoid dimensional changes after processing.

Certified Quality System and PVDF Machining Coverage

XCM CNC organizes PVDF projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality processes. Equipment from DMG, Mazak, Matsuura, and Brother supports chemical-resistant fluid parts, large liners, and high-purity components, with drawing review used to confirm cutting heat, weld-surface pre-machining, and large-part fixturing requirements.

Size Range from Small Fittings to Large Corrosion-Resistant Structures

The range covers small connector-scale parts, PVDF valves, fittings, piping components, weld-surface pre-machined parts, larger liner plates, corrosion-resistant tank parts, and large chemical-service components for lithium and fluid equipment. Milling travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1200 x 2500 mm, subject to fixturing, cutting heat, weld allowance, and media-condition review.

Tiered Equipment Strategy for Low-Cost CNC Machining, Quality-Assured Production

XCM CNC uses four equipment tiers from mainland China, Taiwan, Japan, Europe, and the US. Standard-tolerance operations can run on domestic or Taiwan equipment, while higher-precision PVDF features move to imported machines such as DMG and Mazak. Equipment is matched to actual tolerance needs so cost stays aligned with the drawing.

Datums Confirmed Before Inspection Starts

PVDF hole positions, sealing faces, and weld-related datums are defined with one-setup machining and a matching inspection method instead of relying on equipment capability alone. Fluid valves, fittings, and large liners can combine CMM, standard gauges, and dedicated checks to verify critical features.

Inspection Planning Added to the Process Route

Position, flatness, and fit dimensions are graded against the drawing rather than applied uniformly across every PVDF structure. Large parts and weld-surface areas also have measurement timing and reinspection items written into the order requirements.
