Cost-Effective Magnesium CNC Prototype Machining

XCM CNC supports magnesium CNC prototyping with MOQ from 1 piece, sample lead time of 3-7 days, and quality systems aligned with ISO 9001 and IATF 16949 while using machines from brands such as Mazak and DMG.

Prototype parts and later production parts follow the same tolerance standards. AZ31B and AZ91D material choice, thin-wall flame-safe machining, and the protection route are all validated during the first-article stage so the inspection data can move directly into pilot-run planning.

Machining Parameters

• Materials: AZ31B, AZ91D, project grades by drawing review
• Tolerance: +/-0.003 mm (+/-0.00012 inch), IT5 or IT6 accuracy, +/-0.01 mm shaft and bore fits, with h6 and H7 available
• Surface Finish: Ra 3.2 um milled, Ra 1.6 um precision machined, Ra 0.8 um turned or bored
• GD&T: Coaxiality 0.012 mm, runout 0.01 mm, cylindricity 0.011 mm
• Max Size: Milling 3000 x 1600 x 1400 mm, turning diameter 1250 x 2000 mm
• Surface Treatment: Chromate conversion, micro-arc oxidation, e-coat, spray coating by drawing review
• Thread: M1.4-M220, NPT, BSP, G, PT
• Prototype: MOQ 1 piece, sample lead time 3-7 days, and the same tolerance logic used for production

Prototype-to-Production Tolerance Parity

Magnesium prototypes at XCM CNC use the same +/-0.003 mm critical tolerance and 0.015 mm positional control logic as later production parts, verified on the CMM. H7 holes, h6 shaft positions, and Ra 0.8 um functional faces are machined and inspected to the same standard so first-article data can become the later batch baseline.

Revision-Loop Datum Continuity for Design Updates

Magnesium design revisions can keep the same fixture datum and inspection plan across multiple prototype loops, while only the changed features are updated. When a revision affects thin walls or fit-critical faces, we review whether 0.012 mm coaxiality and 0.01 mm runout are still protected by the existing route.

Fit-Surface Validation on Single-Piece Samples

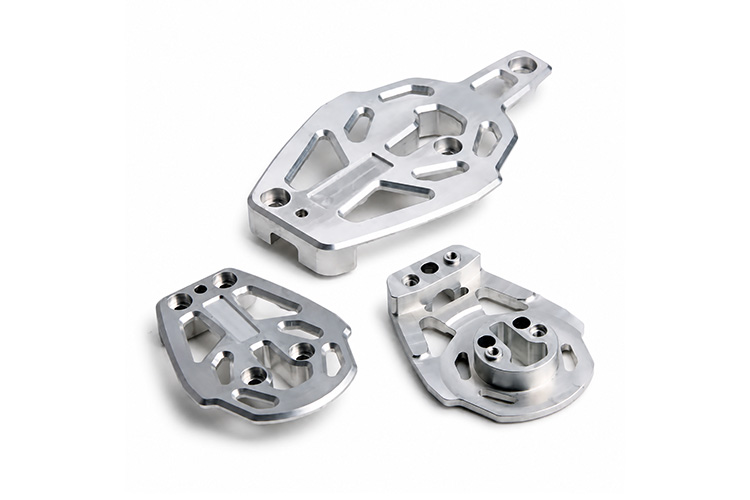

Single-piece magnesium samples can validate Ra 1.6 um mating faces, 0.02 mm flatness on grounding surfaces, and 0.01 mm hole position for assembly trials. Brackets, housings, and interface parts can complete fit-surface inspection in the prototype stage so the customer can compare the measured values directly against the drawing.

Surface-Protection Trials Before Pilot Commitment

Prototype magnesium parts can compare chromate conversion and micro-arc oxidation on selected zones before the pilot run is released. After the trial finish is applied, the relevant appearance and dimensional features are checked again so the real effect of the protection route is known before batch planning.

Qualified Systems and Equipment Coverage

XCM CNC organizes magnesium projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C aligned quality systems, while using equipment from brands such as DMG, Mazak, Matsuura, and Brother to cover housings, brackets, and lightweight structural components. For AZ31B and AZ91D programs, we review flame-safe machining, thin-wall fixturing, and surface protection requirements during the drawing review stage.

Broad Size Range for Lightweight Magnesium Parts

We support magnesium machining from small connector-scale parts to larger structural components, including thin-wall housings, brackets, shielding covers, larger control boxes, and lightweight plates. Three-axis travel reaches 3000 x 1600 x 1400 mm and turning capacity reaches diameter 1250 x 2000 mm, while the final process plan still follows fixturing, flame-safe machining, and surface-protection needs.

Tiered Equipment Strategy for Cost and Quality

XCM CNC uses domestic, Taiwan, Japanese, and Europe or US sourced equipment so prototype magnesium parts can move quickly without placing every face onto the highest-hour imported machine. Standard features can run on fast lower-hour resources, while precision fits and key holes still move to DMG or Mazak class machines when needed.

Multi-Loop Iteration and Version Management

Magnesium development projects often need two or three sample loops before the final route is locked. Each iteration keeps a clear revision ID together with the fixture baseline, toolpath notes, and inspection record so only the changed features need to be updated between revisions. NDA support is available for confidential programs.

Prototype-to-Pilot Continuity

Once the prototype is approved, the same fixture plan, inspection datums, and flame-safe machining parameters can move into the pilot run instead of being rebuilt from the beginning. That reduces repeated validation cost and helps the first sample report become the acceptance baseline for the next stage.
