What Titanium Alloy Systems Are Used in Aerospace?

Titanium-alloy development began in aviation and evolved with the industry’s demand for lighter, stronger, hotter-running structures. Aerospace titanium systems can be organized into four groups: high-strength and high-toughness alloys, high-temperature alloys, burn-resistant alloys, and titanium-matrix composites.

High-Strength, High-Toughness Titanium Alloys

Alloys with tensile strength above 1000 MPa and fracture toughness above 55 MPa·m^1/2 are generally treated here as high-strength, high-toughness titanium alloys. Ti-Al-Mo-V-Cr is a principal system. Ti-1023 has been used in Boeing 777 landing gear and A380 main landing-gear struts; Timetal 555 has been used for Boeing 777 landing gear and bogie beams. Russian BT22 has served in large load-bearing airframe and landing-gear components on aircraft such as the Su-27 and Il-76.

Ti-5Mo-5V-8Cr-3Al uses Mo, V, and Cr to stabilize beta. Increasing these additions can improve ductility; after heat treatment, tensile strength can reach 1100-1200 MPa. It has good cold formability after solution treatment and a useful strength-ductility balance after solution treatment and aging. Ti-5Mo-5V-2Cr-3Al contains less Cr and has beta-stabilizer content near the critical concentration, combining features of alpha-beta and metastable-beta alloys. After heat treatment, it can reach 1110 MPa tensile strength and 70.5 MPa·m^1/2 fracture toughness for aerospace structures.

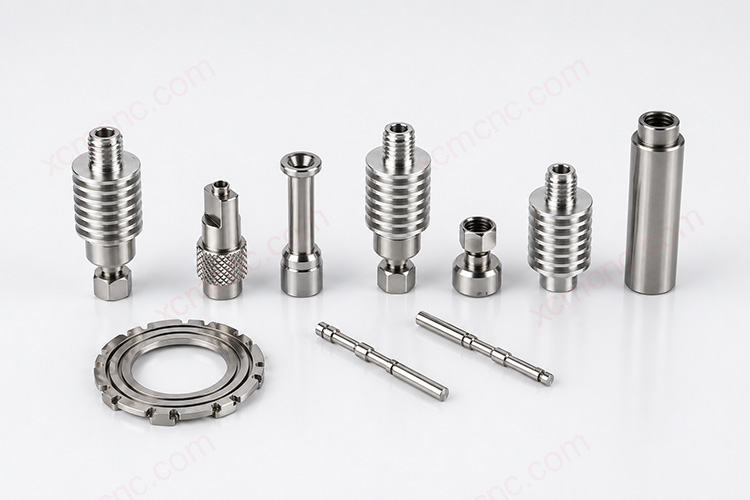

High-Temperature Titanium Alloys

High-temperature titanium alloys are critical aircraft-engine materials. Ti-6Al-4V, the earliest widely used alloy, operates around 300-350°C and combines hot strength, ductility, toughness, formability, and biocompatibility. Later alloys such as IMI550, BT3-1, and IMI685 improved tensile and creep strength and raised service temperature toward 400°C. Silicon additions and Ti-Al-Sn-Zr-Mo-Si development led to IMI834, Ti-1100, BT36, and other alloys strengthened in part by alpha₂. IMI834, widely used in the United Kingdom and in Trent 700 engines, reaches about 600°C.

Representative US Alloys

Representative UK Alloys

Representative Russian and Chinese Alloys

Below 600°C, these alloys can outperform structural steel, aluminum, and nickel superalloys in specific strength, specific creep strength, and specific fatigue strength. Replacing nickel with titanium at equal strength and service capability can reduce mass by a factor of about 1.7. High-thrust-to-weight engines also require blisks, blings, welded structures, Ti₂AlNb, TiAl, and fiber-reinforced titanium composites.

At Mach 6, an aircraft surface can exceed 650°C, increasing demand for heat-resistant skins, frames, engines, and airframe components. Development therefore targets creep resistance, rupture life, fatigue strength, thermodynamic stability, oxidation resistance, and resistance to thermal-stress corrosion.

Long-term service temperature has risen from about 350°C for Ti-6Al-4V to about 600°C. This is often treated as the thermal barrier for conventional titanium alloys, making TiAl and silicon-carbide-fiber-reinforced titanium composites important beyond it. Reported 650°C alloy concepts add Hf, Nb, and Ta to Ti-Al-Sn-Zr-Mo-Si systems. Rare-earth additions should remain below 0.1 at.%; larger additions require rapid-solidification powder metallurgy. A fully lamellar structure requires beta heat treatment.

Burn-Resistant Titanium Alloys

Titanium now accounts for roughly one-third of the structural mass of many modern gas-turbine engines, but ordinary alloys can ignite under combinations of temperature, pressure, airflow, and rubbing. A burn event may progress from local blade-tip or trailing-edge burning to 360° case burn-through in only 4-20 seconds.

Burn-resistant alloys resist ignition or flame propagation. Alloy C (Ti-35V-15Cr) is used in F119 high-pressure compressor stator vanes, inner rings, and nozzle flaps. Alloy C+ adds Si and C for creep resistance. Ti40 (Ti-25V-15Cr-0.2Si) is intended for long-term service around 500°C but loses creep resistance above 510°C and should not exceed 520°C. TF550, based on Ti-35V-15Cr-Si-C, has a density of 5.33 g/cm³ and useful creep and rupture behavior at 550°C.

Ti-V-Cr Systems

V and Cr can form a dense protective oxide before burning, reduce heat release through volatile products, lower melting temperature, and improve heat spreading. Alloy C is a beta alloy with nominal composition 50Ti-35V-15Cr and density about 5.34 g/cm³. Alloy C+ is Ti-35V-15Cr-0.6Si-0.05C. These systems remain expensive, difficult to melt, and not highly conductive below melting; Ti40 thermal conductivity rises only two to three times near or above melting, so rapid heat dissipation alone cannot explain burn resistance.

Ti-Al-Cu Systems

Ti-Cu alloys form a low-melting Ti₂Cu liquid near 990°C. Melting absorbs heat and liquid lubrication reduces friction and heat generation. Russian BTT-1, Ti-13Cu-4Al-4Mo-2Zr, works to about 450°C and hot-forms well for complex parts. BTT-3, Ti-18Cu-2Al-2Mo, has better ductility and burn resistance and suits sheet and foil, but both alloys have limited toughness, crack readily, and can develop shrinkage during melting.

Ti-Nb Systems

Commercial Ti-45Nb is used for autoclaves. In overload tensile ignition testing, it did not burn in pure oxygen at 250°C and 3.1 MPa and also showed good corrosion resistance, although its high density limits use.

TiAl Intermetallics

TiAl intermetallics combine low density, high modulus, oxidation resistance, and burn resistance, with reported maximum service temperature up to 1040°C, but room-temperature brittleness makes processing difficult. The Ti-Al system includes Ti₃Al, TiAl, and TiAl₃. From 700 to 850°C, TiAl has higher specific strength than conventional titanium and nickel superalloys and about 50% higher specific stiffness than common engine structural materials.

Gamma-TiAl blades developed by GE replaced nickel-superalloy blades in stages 6 and 7 of the GEnx low-pressure turbine on the Boeing 787, reducing mass by as much as 72.5 kg. Nb-TiAl has also been applied to automotive turbochargers and is being developed for 700-900°C structures.

Titanium-Matrix Composites

Continuous SiC-fiber-reinforced titanium-matrix composites use tungsten-core or carbon-core SiC fiber in titanium or TiAl matrices. They combine high specific strength and stiffness, low density, creep and fatigue resistance, and service capability of 600-800°C for long periods and 1000°C briefly. An integrally bladed ring can reduce compressor mass by about 70% versus separate blades and disk.

SiC_f/Ti is anisotropic: longitudinal tensile strength can exceed the matrix by more than a factor of two, while transverse strength can be only half that of the matrix. This suits directionally loaded blings, turbine shafts, tie rods, piston rods, skins, and springs.

Hot isostatic pressing or vacuum hot pressing must control interface reaction, precursor-wire densification, and diffusion bonding to the can. Fiber properties, coatings, precursor quality, layup, forming, and machining all affect final behavior. Ti-1100-matrix SiC_f/Ti blings have reportedly reached 700-800°C with about 50% structural mass reduction.

Outlook

Future aerospace systems need higher strength, toughness, damage tolerance, temperature capability, oxidation resistance, and lower cost. Priorities include damage-tolerant alloys, fatigue-resistant structural alloys, advanced TiAl materials, and titanium-matrix composites made by rapid solidification, powder metallurgy, or fiber and particle reinforcement.

Composite development still requires improved stability, statistically reliable property data, bling characterization, failure and life prediction, microscale nondestructive inspection, concentric process control, design criteria, qualification methods, stable fiber and matrix batches, high-temperature coatings, production efficiency, and component specifications.
