CNC Machining Center Fixture Applications and Positioning Design

May 07, 2026 view: 462

This article discusses practical applications and positioning design for CNC machining center fixtures. It covers pneumatic workholding, dedicated fixtures for plunger pump radial hole machining, corn milling cutter fixtures, brake caliper cylinder body workholding, positioning scheme comparison, machining deformation, and fixture development trends. The article is suited for CNC fixture design, automotive parts machining, hydraulic component manufacturing, and precision production environments where repeatable positioning, reliable clamping, and process integration are required. It also addresses automation-oriented fixture development and intelligent workholding.

CNC machining center fixtures do more than hold a workpiece. They affect production efficiency, positioning accuracy, machining stability, and automation capability. For complex parts that require multiple operations in one setup, fixture structure and positioning design are especially important.

Pneumatic Fixtures in Machining Centers

Pneumatic fixtures are effective tools for improving machining center productivity. Positioning and clamping are the core tasks in pneumatic fixture design, and clamping is especially important. Because compressed air is elastic, the fixture designer must compare clamping force with cutting force to ensure that the workpiece remains stable during machining.

The pneumatic fixture must also account for abnormal conditions such as sudden power loss or air supply failure. If these situations are not considered, the result may be tool collision, fixture damage, or workpiece loosening.

For simple parts, one fixture can clamp multiple workpieces at the same time. For complex processes, PLC control can rotate or move the workpiece automatically and work with automatic tool changing to support continuous multi-operation machining. When the fixture, machine tool, and robot communicate and coordinate with each other, unmanned machining becomes more practical and supports intelligent manufacturing.

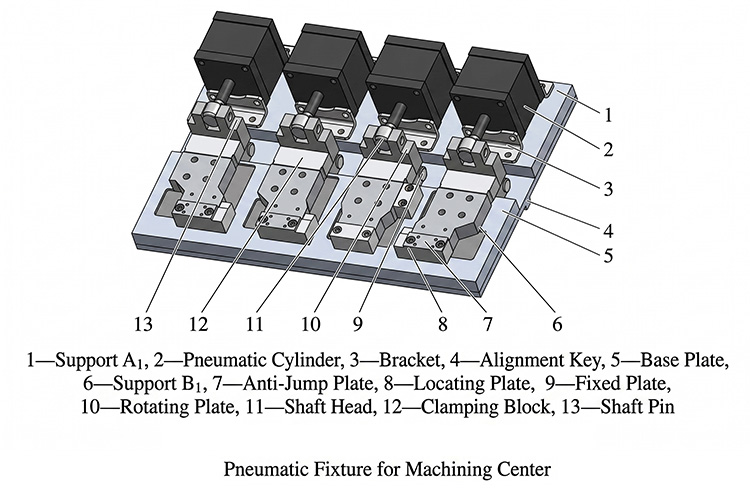

Multi-station pneumatic fixture for CNC machining center workholding

Plunger Pump Radial Hole Machining Fixture

A plunger pump uses reciprocating plungers inside a cylinder body to move oil in and out. Its structure is complex, and machining requirements are high. Radial hole machining usually requires a dedicated fixture to achieve efficient and stable production.

A radial hole machining fixture can use two stations with support from a bridge plate, indexing head, and tailstock. One end of the bridge plate is mounted on the indexing head, while the other end is supported by the tailstock. This arrangement uses machine space efficiently and allows a small worktable to machine a complex part.

After the indexing head rotates the bridge plate, radial holes at different angles can be machined in one setup. Hydraulic clamping, air-tightness detection, floating support, and locating pins can be combined to improve clamping stability and machining accuracy.

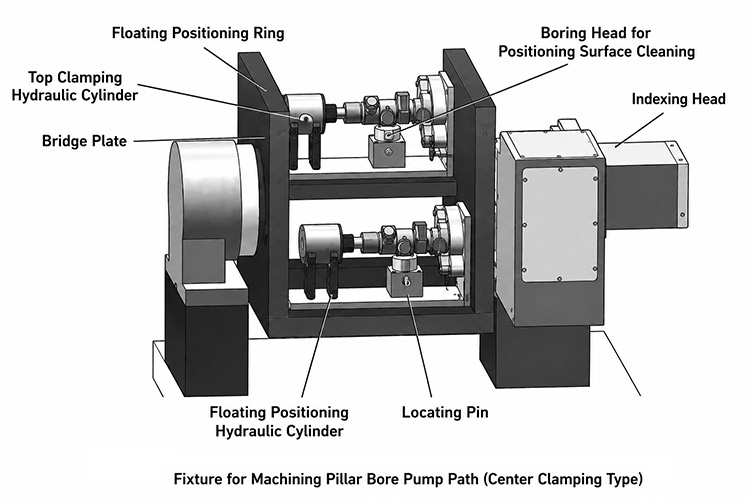

Dedicated CNC fixture for radial hole machining in a plunger pump body

Dedicated Fixtures for Corn Milling Cutters

A corn milling cutter, also known as a scale milling cutter, has dense spiral cutting structures and is suitable for heavy stock removal on CNC machines. It is often used for composites such as carbon fiber, Kevlar, and glass fiber, and it is also useful for large workpieces and rough mold machining.

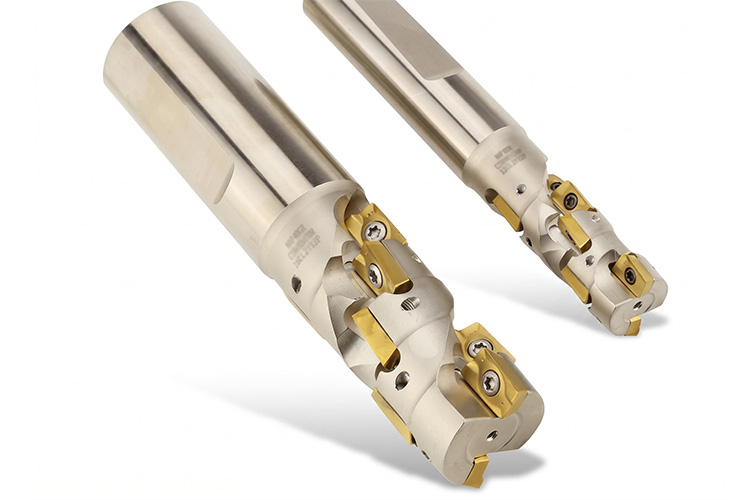

Corn milling cutter for heavy roughing on CNC machines

When designing a dedicated fixture for a corn milling cutter, the locating datum should be selected according to machining accuracy and clamping requirements. The design should follow datum coincidence and datum unification principles. Taper locating blocks, slots, screws, and nuts can be used to restrict workpiece degrees of freedom, provide stable location, and keep installation and removal convenient.

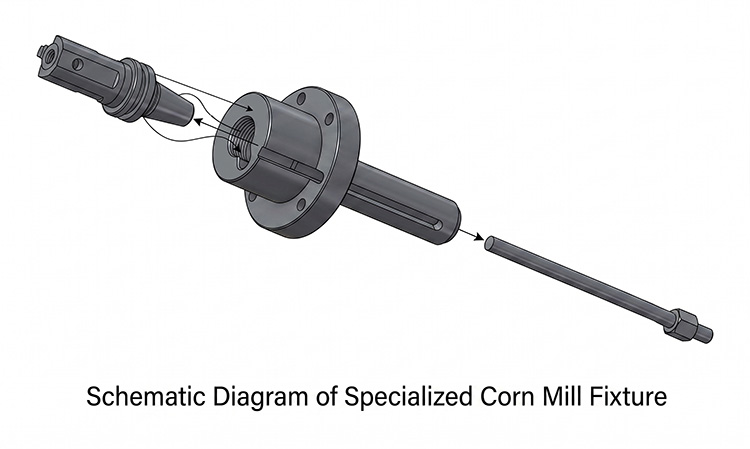

Exploded assembly of a dedicated fixture for a corn milling cutter

Brake Caliper Cylinder Fixture Design

The brake caliper cylinder body used in automotive disc brakes has a complex structure. It may include cylinder bores, ports, mounting surfaces, guide pin holes, vent holes, oil holes, internal threads, and several groove features. The machining process can involve milling, drilling, boring, reaming, and tapping.

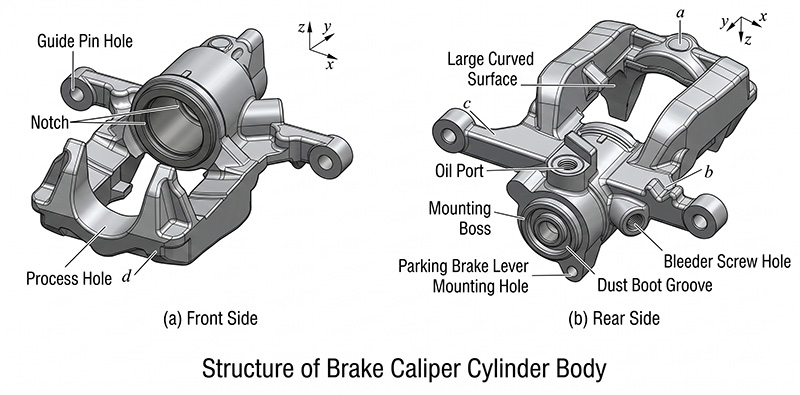

Brake caliper cylinder body structure shown from front and rear views

The machining process for this type of part can be divided between vertical and horizontal machining centers. A vertical machining center may machine the large arc surface, cylinder bore, port, flange face, and mounting holes. A horizontal machining center may machine the reverse-side flat boss, mounting holes, vent holes, and oil holes.

Machining Operations and Process Steps

The brake caliper cylinder body process can include two major machining center operations. Using the vertical machining center as an example, the route may include milling the tail end face, milling the mounting boss, chamfering the boss, milling the boot groove, pre-drilling and reaming sleeve mounting holes, drilling and tapping threaded holes, machining oil hole features, and drilling or tapping vent holes.

These operations show why fixture design must support multiple features, reliable part location, and stable clamping across several cutting methods.

Positioning Scheme Selection

For vertical machining center operations on a brake caliper cylinder body, the positioning scheme should be compared based on locating elements, clamping difficulty, datum mismatch error, datum displacement error, and machining deformation.

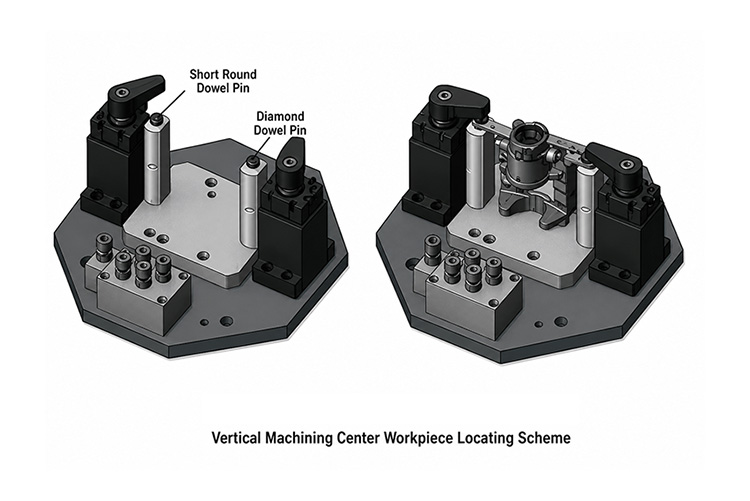

Scheme one can use two small planes to locate the same-side end faces of the guide pin holes, with a short cylindrical pin and a short diamond pin for location. This structure is relatively simple, but the central region may be unsupported. Under cutting force, it can produce larger deformation.

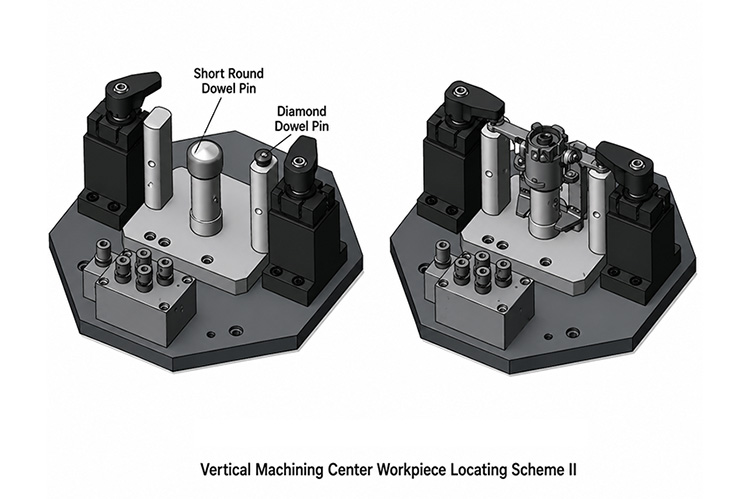

Scheme two can use the cylinder bore as the main locating area, with a larger short cylindrical pin for support and a long diamond pin to restrict another degree of freedom. Although the theoretical accuracy of the two schemes may be similar, scheme two gives better support to the central region of the cylinder body and can reduce machining deformation.

CNC fixture positioning scheme one for a brake caliper cylinder body

CNC fixture positioning scheme one for a brake caliper cylinder body

Fixture Development Trends

CNC machining center fixtures are developing toward flexibility, precision, standardization, and intelligence. Traditional fixtures are more suitable for manual loading and unloading, and they cannot fully meet automation requirements. Robots can complete basic pre-positioning, but the final accurate location still depends on the fixture.

Modern fixtures are gradually moving from hydraulic and pneumatic drive systems toward mechatronic systems. They can integrate clamping force control, compensation, and dynamic monitoring. Zero-point quick-change fixtures, palletized workholding, process-integrated fixtures, and fixture-robot combinations are increasingly used in multi-operation and high-volume manufacturing.

Conclusion

CNC machining center fixture design must balance positioning accuracy, clamping reliability, workpiece deformation, process integration, and automation requirements. A well-designed fixture improves machining accuracy, reduces setup time, and increases overall production efficiency.
