Turn-Mill CNC Machining Process: Programming, Cutting Parameters, and Chip Evacuation
May 07, 2026view: 445
This article explains key programming considerations for turn-mill CNC machining, focusing on machining plane setup, cutting parameter selection, and chip evacuation. It covers how tool axis orientation, powered tool holder rigidity, B-axis configuration, and machine structure affect process stability and machining accuracy. The article is useful for CNC programmers, process engineers, and precision parts manufacturers working with combined turning and milling operations, especially when complex workpieces require stable cutting, controlled chip removal, and reliable multi-axis machining performance. It also supports process planning for precision components.
Turn-mill CNC machining combines turning and milling on the same machine. To maintain machining accuracy and process stability, programmers must consider machining planes, cutting parameters, tool rigidity, and chip evacuation before production. Parameters from a standard CNC machining center should not be copied directly without checking the machine structure and toolholding conditions.
Programming Different Machining Planes

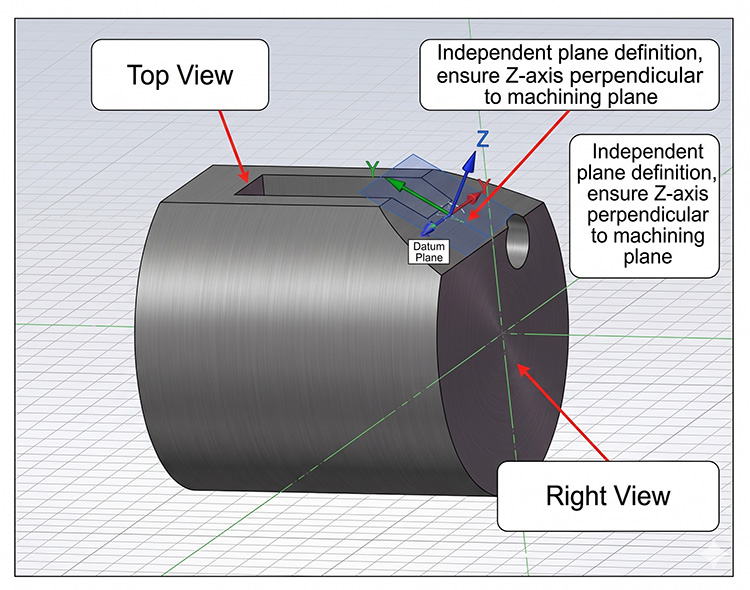

When programming features on different planes, the machining plane or geometric plane must be clearly defined. The purpose is to keep the tool axis perpendicular to the machined surface where required. Common cases include horizontal machining, vertical machining, and 3+2 inclined-plane machining.
Correct plane definition reduces tool orientation errors and improves program reliability. In turn-mill CNC machining, the workpiece, tool axis, and rotary axes may change position across operations, so machining plane setup is especially important.
Selecting Cutting Parameters
In turn-mill machining, milling cutters are usually mounted on powered tool holders. The rigidity and accuracy of the powered tool holder directly affect the cutting parameters that can be used. For this reason, parameters from a CNC machining center are often not suitable for direct use.
Heavy cutting on machines with a B axis requires extra attention. The programmer should evaluate the tool holder specification, B-axis configuration, machine bed structure, tool overhang, and cutting load together. This helps prevent vibration, accelerated tool wear, and reduced machining accuracy.
Chip Evacuation During Machining

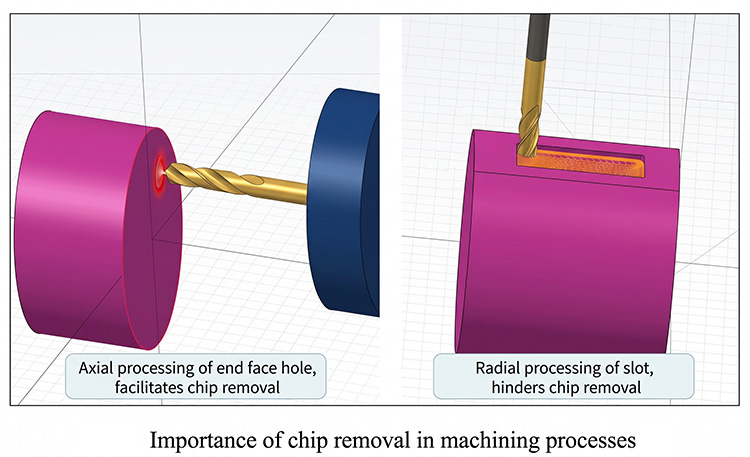

The machining direction may be parallel to the workpiece axis, angled relative to it, or perpendicular to it. Different directions affect how chips leave the cutting zone. Chip evacuation directly influences machining efficiency, surface quality, tool life, and process safety.
When the tool cuts parallel to the workpiece, chips are usually easier to remove. This helps extend tool life and improve machining quality. If chips cannot evacuate smoothly, they may build up in the cutting area, causing heat concentration, tool damage, surface scratches, or unstable cutting.
Conclusion
Turn-mill CNC machining is not simply a combination of turning and milling programs. Reliable results depend on correct machining plane setup, cutting parameters matched to the powered tool holder and machine structure, and a clear plan for chip evacuation. These factors improve process stability, efficiency, and part quality.
