How Does CNC Machining Work? Machine Structure, Process, and Benefits

Computer-assisted machining has become a core foundation of modern metal cutting. For manufacturers that need stable quality, efficient production, and the ability to machine complex geometries, CNC machine tools are suitable not only for one-off parts, but also for small-batch and high-volume production. A digital control system connects the machine, tool motion, process parameters, and quality control into a repeatable, verifiable, and optimizable machining process.

Why Computer-Assisted Machining Has Become Essential in Metal Cutting

Over the past several decades, computer-assisted machining has become a basic requirement for many metalworking companies that need to maintain high-quality production. CNC machine tools offer a wide range of practical uses, from single-part production to small batches and mass production, and they have gradually become a standard method in the machining industry.

Compared with conventional machine tools, CNC machining is not only more automated. It also makes the machining task easier to plan, repeat, and control. With a digital control system, complex operations can be defined through programs, tool paths, and process parameters, reducing the effect of operator variation on part quality.

How CNC Machine Tools Improve Quality and Efficiency

CNC machine tools can machine workpieces with complex geometries faster and more accurately than conventional machines. By optimizing process parameters and combining operations such as turning and milling on one machine, manufacturers can often reduce repeated clamping and alignment, which improves both machining quality and production efficiency.

A programmable machining process is accurate and repeatable. Automatic tool wear compensation, tool life monitoring, and reduced direct operator involvement all help maintain consistent workpiece quality. Modern control systems can also simulate the machining program before production, identify potential errors, and improve process safety.

What CNC Machining Requires from Operators

The CNC machining workflow is clearly different from conventional machining. CNC machine operators usually focus on setup, program confirmation, workholding checks, and process monitoring, while the control system carries out the machining operation. The same system can also handle tool changes, conversational programming, and program editing.

As CNC technology becomes more widely used, the physical workload for machinists decreases, but the need for technical judgment increases. The machining process often has to be fully planned before cutting begins. Rotary axes and multi-axis motion also make machine kinematics more complex. Operators need a solid understanding of conventional cutting processes, along with the ability to operate and program CNC machine tools.

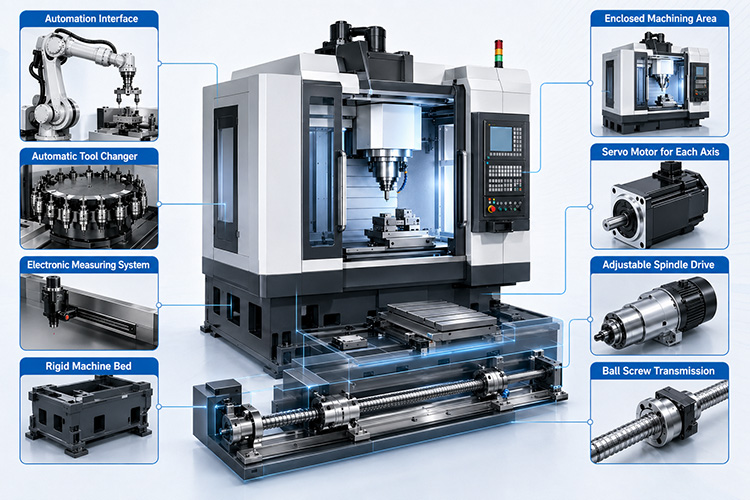

CNC Machine Tool Structure and Working Method

Combining a machine tool with a computer-supported numerical control system can improve machining quality, output, and equipment efficiency. This level of precision also requires structural changes compared with conventional machine tools.

CNC machine tools typically use higher cutting speeds, feed rates, and coolant pressures. For process safety and environmental protection, CNC machines usually have an enclosed machining area. Chips remain inside the machining chamber and are removed by a chip conveyor. The coolant is collected, treated, and returned to circulation inside the machine.

Spindle Drive, Linear Drive, and Multi-Axis Worktables

CNC machine tools often need to maintain a constant cutting speed during operation, and spindle speed changes are usually handled by a continuously variable motor. In modern machines, the drive motor can be integrated directly into the spindle or drive shaft, improving power transmission and making the structure more compact.

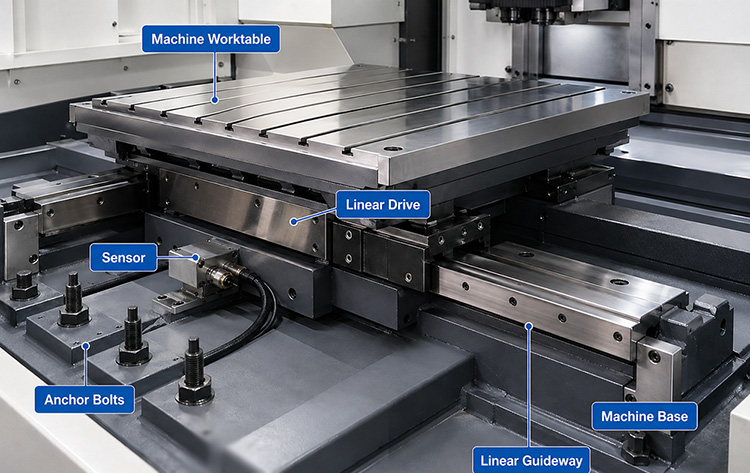

To machine complex workpiece shapes, each axis of a CNC machine is usually driven by its own servo motor. Linear drives are increasingly used because they provide strong acceleration and deceleration performance with minimal wear. They can also maintain high positioning accuracy over long travel distances.

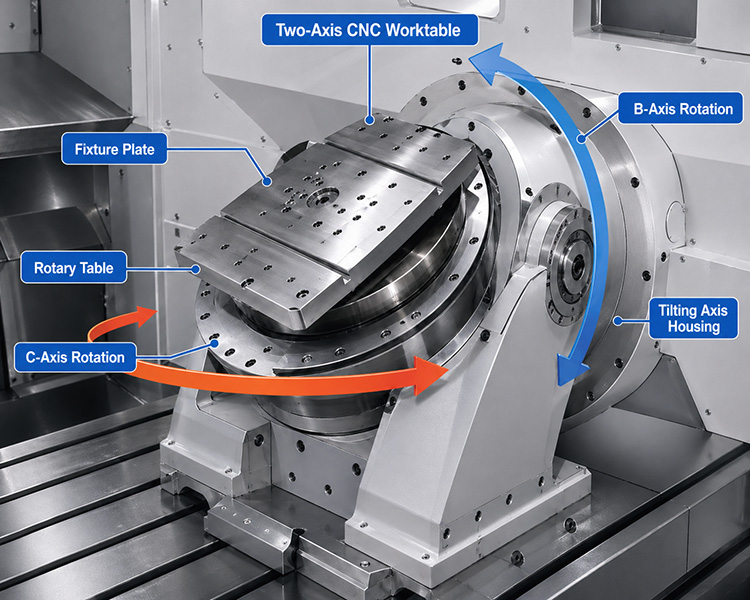

Adding controlled axes, such as a two-axis CNC worktable and a working spindle on a CNC milling machine, expands the range of workpiece shapes that can be produced. Rotary motion can serve as a feed motion or a transverse feed motion, supporting more complex machining paths.

CNC Lathe Machining Area and Ball Screw Transmission

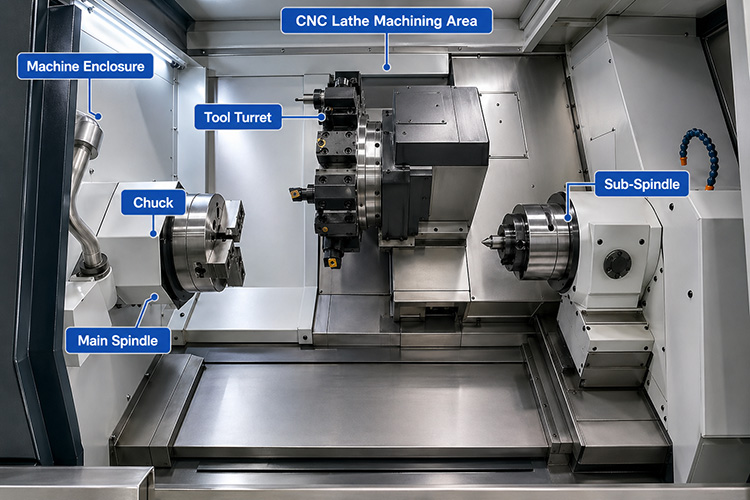

In CNC lathes, structures such as a programmable tailstock, tool turret, driven tools, main spindle, and sub-spindle expand the machine’s ability to complete multiple operations in one setup. The enclosed machining area improves safety and also helps manage chips and coolant more effectively.

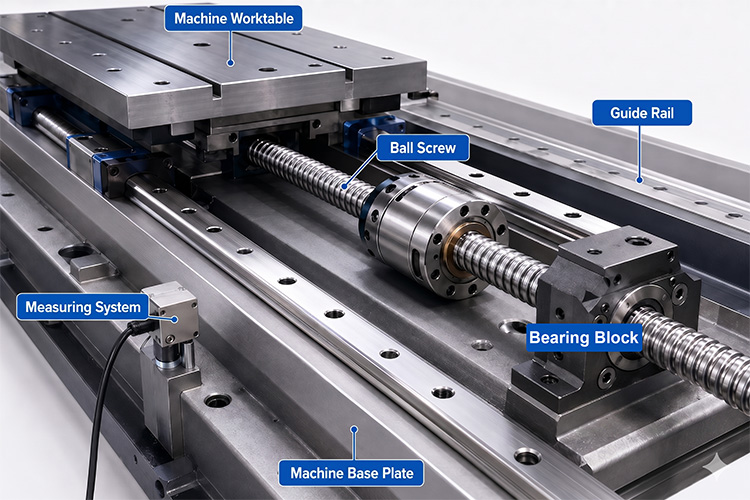

To transfer the calculation accuracy of the control system and the positioning accuracy of the servo motor to the relative motion between the workpiece and the tool, CNC machines often use ball screw transmission. A ball screw has very little backlash and can transmit slow, continuous motion with reduced stick-slip behavior. The matching guideway structure combines the advantages of sliding friction and rolling friction.

Automatic Tool Change and Overall Machine Design

Tool changes on CNC machine tools can be automated in most cases. A CNC lathe is usually equipped with at least one tool turret, while a milling machine uses a tool magazine and a tool changer. In newer machines, tool loading and tool magazines are often driven by servo motors and equipped with detection systems to improve positioning accuracy and tool change speed.

Because CNC machine tools often remove a high volume of material per unit of time, the machine base and structural components must withstand significant mechanical and thermal loads. Modern machine design relies on structural optimization, material selection, lighter moving components, coolant management, and chip evacuation to maintain machining accuracy and long-term stability.

Conclusion

CNC machine tools improve cutting efficiency, accuracy, and stability through digital control, automatic tool changing, multi-axis motion, integrated spindle drives, linear drives, and ball screw transmission. For complex workpieces, batch production, and manufacturing tasks that require consistent quality, CNC technology has become an essential part of modern manufacturing.
