How to Prevent Common Titanium Welding Defects

Prevent titanium welding defects by preparing clean joint edges, using sufficiently pure shielding gas, protecting the hot weld and its root, and cleaning between passes. Check weld color and remove defects before continuing. These practices matter because titanium absorbs oxygen, nitrogen, and hydrogen readily while hot.

Avoid Flame Cutting for Blanking and Groove Preparation

Above 200°C, titanium alloys oxidize and absorb hydrogen readily, causing rapid property deterioration. Flame cutting creates an oxide film and a poor cut surface. Exposure to air at high temperature can also embrittle titanium.

For titanium and titanium-alloy piping work, SH/T 3502-2009, Code for Construction and Acceptance of Titanium and Zirconium Piping (Chinese industry standard), provides the construction and acceptance context. Use mechanical methods such as hand saws, sawing machines, or lathes for cutting, groove preparation, and drilling. If plasma cutting is used, mechanically remove the contaminated layer and any heat-discolored surface.

Use Shielding Gas of Adequate Purity

Titanium welding uses argon, helium, or mixtures of the two. Argon is widely used, but impurities can impair protection of the molten pool, promote porosity, reduce joint quality, and accelerate tungsten-electrode burnoff.

For pressure-vessel welding, NB/T 47015-2011, Welding Procedure for Pressure Vessels (Chinese industry standard), provides the procedure context. Argon purity should be at least 99.99%, its dew point below -40°C, and bottled argon should not be used once cylinder pressure falls below 0.5 MPa. Helium or an argon-helium mixture may also be used where appropriate.

Protect the High-Temperature Weld Zone

Molten droplets and weld metal absorb hydrogen, oxygen, and nitrogen aggressively when shielding is inadequate. Solid titanium at high temperature also absorbs these gases. Hydrogen absorption begins near 250°C, oxygen absorption near 400°C, and nitrogen absorption near 600°C. These gases raise hardness and strength but reduce ductility and toughness, causing embrittlement. Carbon can form hard, brittle titanium carbide and promote cracking.

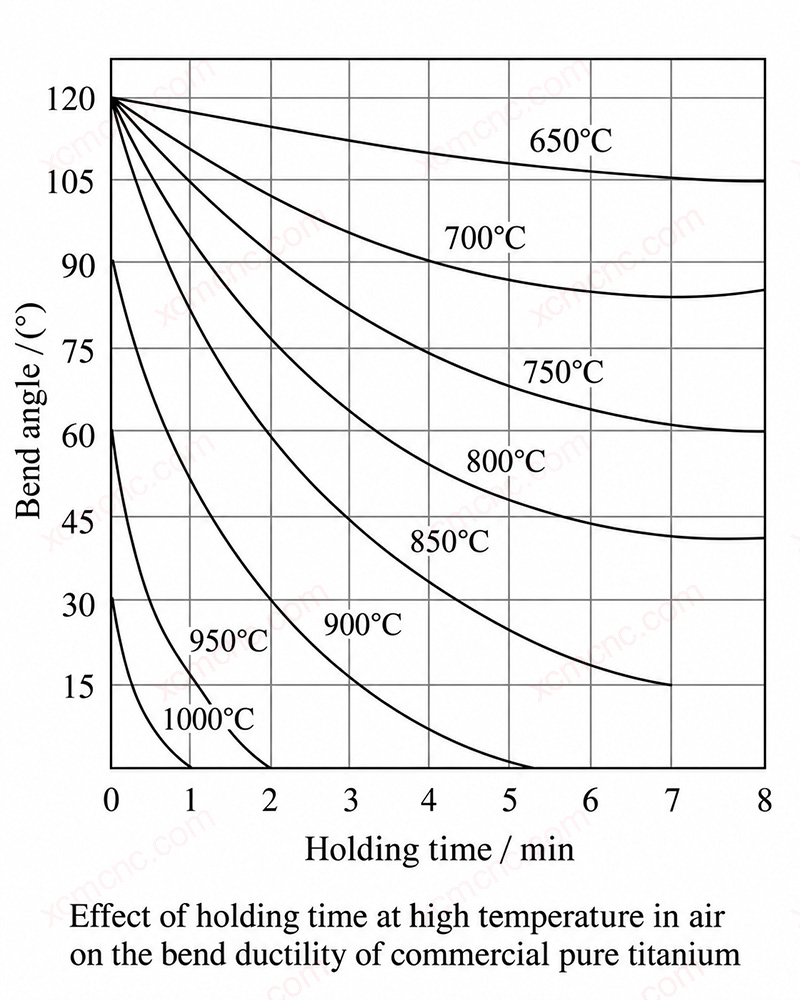

[IMAGE PLACEHOLDER: Effect of High-Temperature Air Exposure on CP Titanium Bend Ductility]

For the titanium piping work addressed by SH/T 3502-2009, use a 12-26 mm torch nozzle and maintain stable laminar argon flow. A trailing shield protects the hot weld and adjacent outer surface, while internal argon purging protects the inner surface. Begin purging before welding and maintain slight positive pressure and continuous flow.

For these piping welds, weld color provides a practical indication of shielding effectiveness:

Clean Filler Wire, Grooves, and Interpass Surfaces Thoroughly

Moisture or contamination on filler wire, grooves, or nearby surfaces can cause hydrogen cracking and porosity. Inadequate interpass cleaning can leave nonmetallic inclusions that form low-melting eutectics, promote cracking, and reduce weld ductility and corrosion resistance.

For titanium piping work under SH/T 3502-2009, degrease filler wire with sulfur-free acetone or ethanol and avoid chlorinated solvents such as trichloroethylene or carbon tetrachloride. Wipe with clean cotton cloth, handle cleaned wire with clean gloves, and keep it dry and uncontaminated. Use dedicated stainless-steel brushes to remove oxides at least 25 mm from both sides of the groove, and remove water and dirt within 75 mm using sulfur-free acetone or ethanol. Clean metallic inclusions between passes with a stainless-steel brush.

Prevent Weld Undercut

Undercut reduces the effective joint area and creates stress concentration, encouraging cracks and reducing fatigue strength and dynamic-load capacity.

In the titanium piping welds addressed here, undercut, depressions, porosity, tungsten inclusions, cracks, and lack of fusion are unacceptable. Select suitable parameters, use a qualified operator, and pause appropriately at both groove sides to ensure fusion and prevent undercut.
