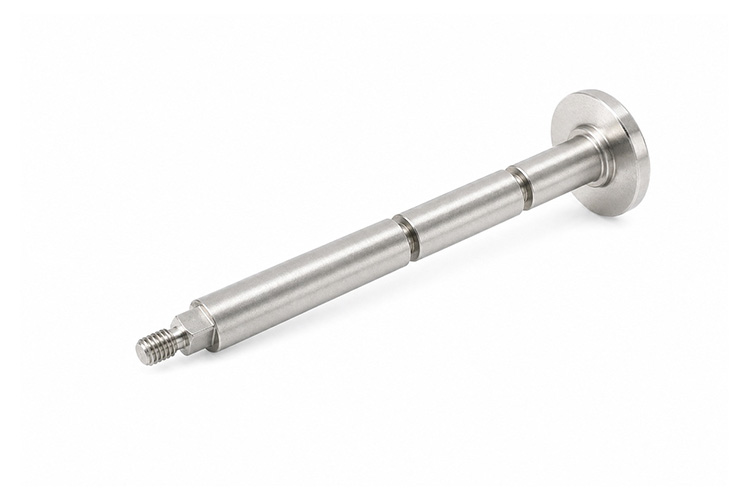

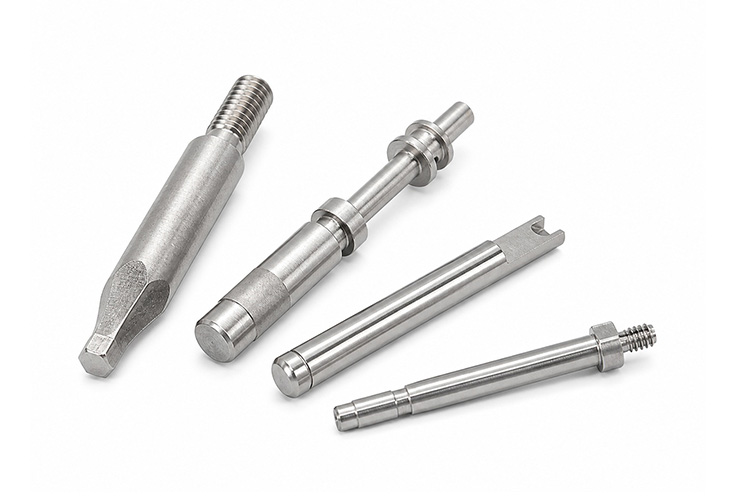

Cost-Effective Stainless Steel CNC Prototype Machining

Before stainless steel parts move into full production, the prototype stage is where grade fit, sealing structures, and surface-treatment results are verified first. XCM CNC supports 304, 316, and 316L prototype parts for structure samples, sealing validation, and pre-pilot confirmation.

The prototype route confirms passivation, polishing, sealing faces, and O-ring groove requirements before production parameters are locked, which helps reduce repeated trial-and-error on corrosion-resistant parts. The factory runs under ISO 9001, ISO 13485, IATF 16949, and GJB9001C systems, with MOQ starting from 1 piece and typical sample lead time reviewed in the 3-7 day range.

Machining Parameters and Tolerances

Prototype Machining Uses Production-Grade Precision

Stainless prototypes are machined on the same equipment and against the same precision targets intended for later production. Selected features can be reviewed around +/-0.003 mm, shaft diameters around h6 at +/-0.005 mm, and bores around H7 at +/-0.006 mm so fit behavior is checked before a volume run begins. Roundness near 0.006 mm and concentricity near 0.012 mm can already be verified at sample stage.

Functional Surface Verification on Stainless Prototypes

Prototype sealing faces can be machined around Ra 0.8 um, while O-ring groove width near 1.0 mm and groove depth around +/-0.01 mm are reviewed together with burr control. Visible faces can be set around Ra 1.6 um with texture expectations, and passivation result can be checked directly on the sample before the finish is accepted for batch use.

Inspection Continuity from Prototype to Pilot Run

The measurement datums and inspection points used on the sample can be carried directly into pilot production and later batch work. Hole-pattern position checks around 0.015 mm, sealing-face flatness methods, and thread gauge types are all better confirmed during sample approval so the same acceptance logic continues into the next stage.

Passivation and Surface-Treatment Validation at Sample Stage

Prototype passivation can follow ISO 15734 and mirror the intended production route, while polishing level or bead-blast texture can also be verified on the sample. Recording surface condition before and after treatment helps later pilot runs follow the same appearance and protection standard with fewer surprises.

Drawing Feedback Is Fast Before Sample Release

Drawings are usually reviewed within 1-2 working days for machinability, grade suggestions, structure risks, and surface-treatment options. On prototype work, finding those issues early keeps the verification cycle shorter and avoids expensive revision loops later.

Sample Revisions Stay Traceable

Each prototype round can keep records of geometry changes, key-dimension comparisons, and surface-treatment updates. If a part takes multiple revision rounds to pass, the confirmed production version still carries a clear trail of what changed and why.

Pilot-Run Handoff Includes a Control Checklist

Once a sample is approved, a handoff checklist can carry the locked cutting parameters, inspection datums, surface-treatment standard, and packaging notes into the pilot stage. This reduces the need to renegotiate technical details that were already approved on the sample.

Prototype Files Can Support Production Quotation Directly

Process sheets, inspection plans, and surface-treatment notes created during the prototype stage can be reused when later production pricing is evaluated. That reduces duplicate technical communication when the customer moves from validation to repeat ordering.

Prototype Lead Time Is Reviewed in the 3-7 Day Range

Regular stainless prototypes are commonly reviewed in the 3-7 day range from drawing confirmation to shipment, depending on geometry complexity, grade sourcing, and surface-treatment scope. Priority scheduling can be evaluated for urgent work, but it is not treated as an unconditional rush promise.
