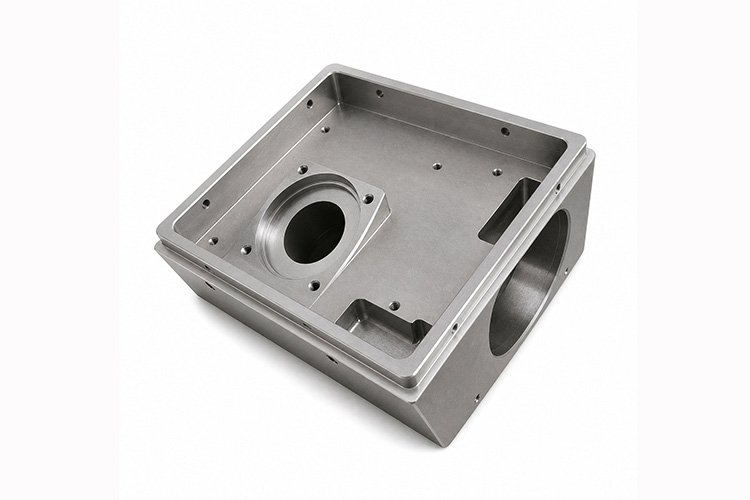

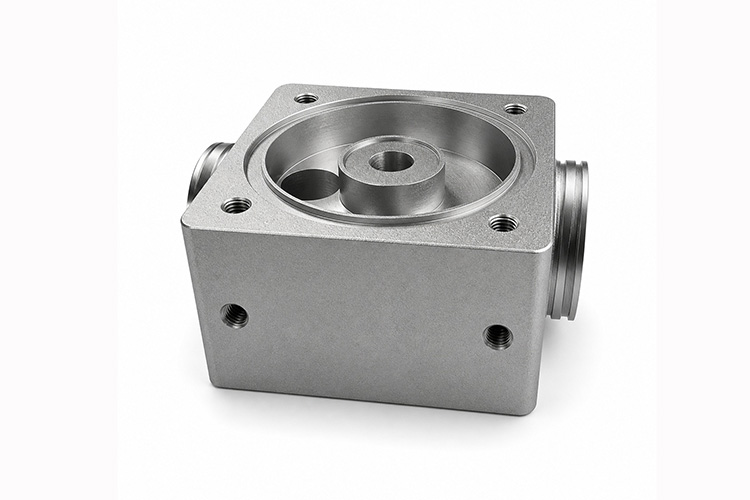

Cost-Effective Alloy Steel CNC Prototype Machining
Overview
XCM CNC supports alloy steel functional samples and low-volume pilot builds under ISO 9001 and IATF 16949 based quality systems, using imported equipment from brands such as DMG and Mazak, with MOQ from 1 piece and sample lead time often reviewed in the 3-7 day range.
Grades such as 40Cr, 42CrMo, and 20CrMnTi can be used to validate load targets, heat treatment routing, and shaft and bore fit before repeat production. For prototype gear blanks, transmission shafts, hydraulic rods, and brackets, the sample stage can confirm stock allowance, chamfers, rust protection, and reinspection checkpoints before design revisions and pilot scheduling are released.
Key Capabilities
Machining Parameters and Tolerances
- Materials: 40Cr, 42CrMo, 20CrMnTi, GCr15
- Tolerance: +/-0.003 mm (+/-0.00012 inch), IT5 or IT6 accuracy, +/-0.01 mm shaft and bore fits, with h6 and H7 available
- Surface Finish: Ra 3.2 um milled, Ra 1.6 um precision machined, Ra 0.8 um turned or bored
- GD&T: Coaxiality 0.012 mm, runout 0.01 mm, cylindricity 0.011 mm
- Max Size: Milling 3000 x 1600 x 1400 mm, turning diameter 1200 x 2500 mm
- Heat Treatment: Quench and temper, carburizing, nitriding
- Thread: M1.4-M220, NPT, BSP, G, PT
- Prototype: MOQ 1 piece, sample lead time 3-7 days, with production-grade tolerance logic
Single-Piece Prototype with Production-Grade Tolerance
Single-piece alloy steel prototypes can follow the same tolerance logic used for later production, with +/-0.03 mm on regular features, +/-0.01 mm on fits, and h6 or H7 shaft and bore classes when the drawing requires them. That allows assembly validation from the prototype stage without having to recheck the fit only because of a different sample precision standard.
Shaft and Gear Blank Prototype Turning Parameters
Prototype shaft and gear blank turning can cover shaft tolerance around +/-0.01 mm or h6 and h7 classes, circular runout around 0.01 mm, and diameters up to 1200 mm. Keyways can start from 1.0 mm width, retaining-ring grooves from 0.5 mm width, and slender shafts up to L/D 15:1 can be reviewed. The sample stage can already verify bearing seats, sealing faces, and transmission fits in real material.
Functional Surface Finish and Thread Verification
Prototype functional surfaces can follow production-oriented finish targets, such as Ra 0.8 um on shaft journals, Ra 1.6 um on precision bores, and Ra 0.8 um on sealing faces. Threads from M1.4 to M220 and pipe threads including NPT, BSP, G, and PT can be checked with go and no-go gauges so roughness and thread engagement are both confirmed before pilot release.
Dimensional Inspection Before Pilot Handoff
Critical sample dimensions can be documented by CMM before the prototype is released, with coaxiality, runout, and position checked on fit-critical features. Inspection can use Hexagon CMM and TRIMOS height gauges, and the report format can follow the customer requirement. After approval, the same inspection logic can continue into the pilot batch.
Specifications
| Product Name | Cost-Effective Alloy Steel CNC Prototype Parts |
|---|---|
| Manufacturer | XCM CNC |
| Factory Location | Shenzhen, Guangdong, China |
| Quality System | ISO 9001, ISO 13485, IATF 16949, GJB9001C |
| Machining Process | CNC turning, CNC milling, drilling, tapping, sample machining review |
| Material | Alloy Steel |
| Material Grade | 40Cr, 42CrMo, 20CrMnTi selected by load target and pilot route |
| Tolerance | +/-0.03 mm standard CNC tolerance, critical dimensions by drawing review |
| Surface Roughness | Ra 1.6 um mating surfaces, general machined surfaces by drawing requirement |
| Surface Treatment | Heat treatment and rust prevention for samples by drawing review |
| Inspection | Dimensional inspection, sample review, and heat treatment report by order requirement |
| Application | Functional prototypes, assembly validation parts, pilot samples, heavy-duty test parts |
| Key Features | Shaft-bore fits, gear blanks, heat treatment route, heavy-load edges, rust protection confirmation |
| Critical QC Requirements | Sample key dimension recheck, post-heat-treatment review, revision records, pilot handoff |
| Batch Range | One-piece functional samples to pilot builds by drawing review |
| MOQ | 1 Piece |
| Typical Lead Time | 10-15 business days after drawing review |
| Drawing Formats | STEP, IGS, DWG, PDF, X_T |
| Heat Treatment | By drawing review |
| Critical Tolerance Control | Key fit features rechecked after sample revisions |
Applications
Functional Prototypes for Drive Shafts, Gear Blanks, and Couplings
Typical Parts: Drive shaft prototype, gear blank sample, coupling prototype
Alloy steel prototypes are useful for validating load path, shaft and bore fit, and the heat treatment route before repeat production starts. CNC samples can preserve critical outer diameters, keyways, and end-face dimensions for assembly checks, design iteration, and later pilot conversion.
Valve Stem, Hydraulic Rod, and Fit-Sleeve Samples
Typical Parts: Valve stem sample, hydraulic rod sample, fitting sleeve sample
Hydraulic samples need early confirmation of surface finish, outer-diameter fit, and size change after heat treatment, and alloy steel is a realistic material for that validation. CNC machining can first cut the sample in a softer or pretreated state, then review finish machining, reinspection, and rust protection according to the drawing.
Validation Samples for Heavy-Duty Pins and Brackets
Typical Parts: Pin prototype, link bracket sample, clevis lug sample
Construction equipment samples are often used to verify assembly space, heavy-load chamfers, and hole spacing, and alloy steel gives a more realistic picture of the later production material behavior. The sample stage should record design changes, heat treatment selection, and critical-dimension reinspection so the project can move into pilot work more cleanly.
Prototype Reducer and Servo Transmission Parts
Typical Parts: Reducer shaft prototype, servo shaft sample, drive sleeve sample
Automation transmission samples need fast confirmation of coaxiality, keyways, and mounting end faces before pilot production. Alloy steel helps test high-precision drive structures in real material. CNC machining can adjust local features from STEP, IGES, or drawing data while keeping the sample approval record for later release.
Why Choose Us
Qualified Systems and Equipment Coverage
XCM CNC can organize projects to ISO 9001, ISO 13485, IATF 16949, and GJB9001C system requirements, while arranging machining routes across DMG, Mazak, Matsuura, Brother, and other equipment brands. For alloy steel prototypes, that helps place heat treatment routing, sample reinspection, and later pilot requirements into one plan.
Broad Size Range for Prototype Validation
We support machining from small connector-scale parts to large structural components, with three-axis travel up to 3000 x 1600 x 1400 mm and turning diameter up to 1250 mm. For transmission shafts, couplings, and heavy-load brackets, this range helps validate size and process route at the prototype stage.
Tiered Equipment Strategy for Cost and Quality
XCM CNC uses a tiered equipment strategy that includes mainland China, Taiwan, Japan, and Europe or US sourced CNC machines. Lower-tolerance operations can run on domestic or Taiwan equipment, while tighter precision work can move to imported machines such as DMG and Mazak. That helps control prototype cost without sacrificing the features that need tighter review.
Fit Risks Reviewed Before Sampling
For shaft and bore fits, gear blanks, and high-load brackets, we confirm key dimensions, chamfers, and the finish-machining route after heat treatment before the sample is made. That pushes the main engineering risks into the prototype stage instead of leaving them for pilot production.
Sample Records Carried into Pilot Builds
The sample-stage record can include grade confirmation, heat treatment state, critical-dimension reinspection, and rust protection details. When the job moves into pilot production, the same approved version can be carried forward to reduce repeated communication, especially on transmission and heavy-load parts that need several revisions.
FAQ
How fast can you deliver alloy steel CNC prototypes?
Standard alloy steel CNC prototypes can often be reviewed in the 3-7 day range. Actual timing still depends on drawing complexity, grade, quantity, and the heat treatment requirement.
Can you machine one-piece alloy steel prototypes before low-volume production?
Yes. MOQ can start from 1 piece, which suits functional samples, assembly checks, and pilot confirmation. Once the sample is approved, moving into a small batch is usually easier and can reduce later rework.
Which alloy steel grade is better for prototype load testing, 40Cr or 42CrMo?
40Cr is often used for general high-strength structures, while 42CrMo is more suitable when the test condition needs higher strength and fatigue performance. The prototype grade should still be confirmed together with the target load case and the later production route.
Can you validate heat treatment results on alloy steel prototypes before committing to production?
Yes. The prototype stage can be used to verify whether dimensional change, hardness, and fit condition after heat treatment match expectations. Once that route is confirmed, the pilot version can lock the process parameters and the reinspection plan.
How do you move from alloy steel prototype machining to small batch production?
After the prototype passes, we can carry the approved version, heat treatment route, rust protection method, inspection points, and assembly requirements into the pilot batch. For high-precision transmission and heavy-load structures, the sample record is especially important.
What file formats do you accept for alloy steel prototype quoting?
We accept STEP, IGES, STP, DWG, or a dimensioned PDF. When the drawing also states the grade, heat treatment requirement, critical tolerances, and quantity, it becomes much easier to review the sample plan and lead time quickly.
