What Makes Automated Machining Equipment Productive, Reliable, and Flexible?

1. High Productivity

The principal purpose of automated production is to increase labor and machine productivity. Automation should be built on an advanced process and should continually reduce non-cutting and auxiliary time. Automating an outdated process delivers only limited gains.

Long-term productivity is lower than the ideal cycle rate because losses also occur outside the machining cycle. Tool replacement, repair, mechanism adjustment, reloading, product changeovers, and organizational stoppages all consume time. These losses can be reduced in six areas:

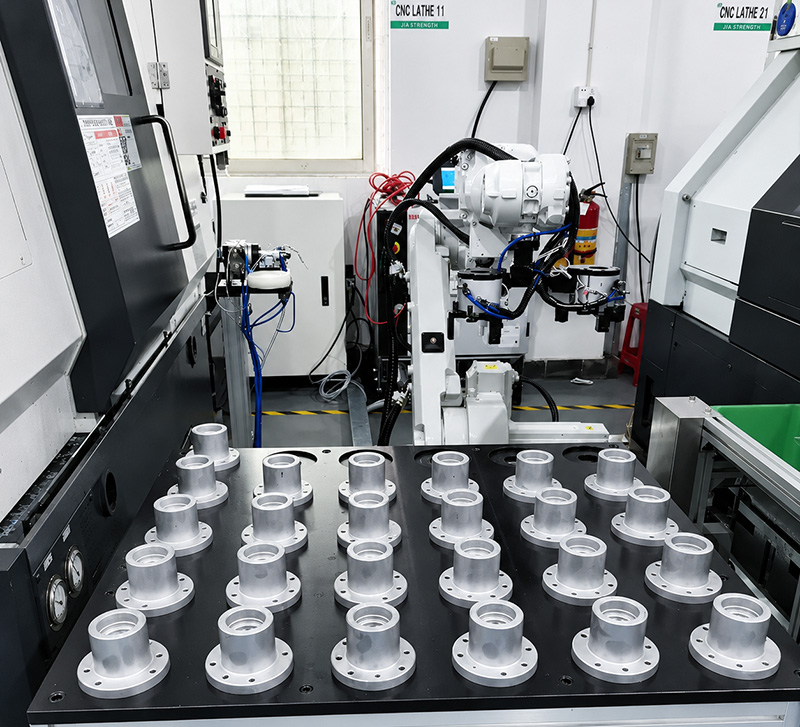

1. Machining-related losses. Use continuous automated lines, fast non-cutting mechanisms, automatic inspection, chip removal, and robots or devices for periodic loading.
2. Tool-related losses. Use tool stores, automatic tool-changing robots, automatic tool adjustment, self-locking devices, and compulsory tool replacement.
3. Equipment-related losses. Use automatic wear compensation and wear-reduction mechanisms, protective devices, durable materials, reliable lubrication, planned maintenance, and automatic diagnostics.
4. Shift-change and material-shortage losses. Use automated storage between operations, lines, sections, and workshops, together with automatic recording and computer management.
5. Scrap-related losses. Use active in-process inspection, adaptive control, automatic tool-wear compensation, and compulsory tool changes to regulate process and workpiece geometry and reduce scrap.
6. Changeover and setup losses. Use modern CNC automatics, reconfigurable flexible lines, computer-controlled variable systems, program control, automatic program switching, and quick-adjust tooling.

2. Consistent Machining Accuracy

Product quality determines whether the product and the automated system have practical value. Preventing batch scrap and maintaining accuracy are fundamental requirements.

1. Tool dimensional wear. Wear can dominate dimensional and geometric accuracy. Automatic workpiece measurement, indirect monitoring of cutting force, torque, temperature, noise, or surface roughness, and direct online wear detection can feed a control system that compensates the tool automatically. Where detection and compensation are unavailable, compulsory replacement based on tool life is widely used in machining centers and FMSs, with life data and cutting time managed by computer.
2. Elastic deformation. A low-rigidity system can create substantial error, especially in finishing, where stiffness also affects surface roughness. Special-purpose and modular machines for medium- or high-volume work can be designed around one product family so that their mechanical characteristics provide adequate rigidity. Improving a rack-milling cutter from one tooth to multiple teeth, for example, can fail to achieve accuracy if the machine’s rigidity is not considered.
3. Cutting parameters. Speed, feed, and depth of cut influence surface roughness. They must satisfy productivity requirements without compromising surface quality.
4. Machine-setting error. Automated production relies on preset machines and automatically achieved dimensions. Machine dimensional settings and the machine-to-workpiece relationship must therefore be adjusted before production. Tools can be set from a master part or by trial cutting and must meet the specified tolerance.

3. High Equipment Reliability

Quality, cost, and actual productivity depend on reliability. As reliability improves, actual output approaches the theoretical design value.

Equipment stops because of machine, fixture, or component faults; tool failures; planned shutdowns; or organizational causes such as missing blanks, tools, or staff, defective material, and interrupted electricity or air. Faults either stop a mechanism or prevent the specified accuracy.

Failure rate over operating time follows three broad stages:

1. Early failures. Failure density is initially high and then falls quickly. Causes include material defects, immature design, poor manufacturing, and initial operating mistakes. Frequent inspection, feedback to design and manufacturing, correction of defects, operator learning, and component run-in stabilize the equipment.
2. Random failures. During normal service, failure density is stable and faults occur unpredictably, often because of overload or unforeseen stress concentration. Cleaning, lubrication, adjustment, and inspection help extend useful life.
3. Wear-out failures. Mechanical wear, fatigue, chemical corrosion, and time-dependent material change cause the failure rate to rise sharply. Improved maintenance reduces the rate and slows deterioration.

Reliability depends on component reliability, component count, and connection architecture. On a rigid series-connected line, one failed component stops the entire line; dividing the line into buffered sections can improve reliability and productivity.

Good design, manufacturing, operating procedures, maintainability, and rapid fault detection all reduce downtime. Frequently failing wear parts should use quick-change connections so complete spare assemblies can be exchanged. Parallel redundant components, standby branches, and backup manual control can further improve availability.

4. Manufacturing Flexibility

Shorter product life cycles and greater variety have made mixed small- and medium-batch production common. Flexible equipment can switch within a defined part family by changing software and limited tooling, often without manual machine adjustment. This greatly reduces changeover and production-preparation time and can support mixed-model production.

Automated systems for small and medium batches may require:

1. Automatic program change. Computers or programmable controllers should switch equipment programs rapidly without stopping the system.
2. Automatic production of several products or a part family. Universal, highly automated transfer, pallet-fixture, and machining systems should process grouped parts automatically.
3. Variable routing and takt. A highly flexible system should route different products through different process sequences and transport paths at different production rates.
4. Efficient automatic machining and tool changing. CNC machines with magazines and automatic tool changers reduce cutting and tool-change time and maintain productivity.
5. Automatic monitoring and fault diagnosis. In-process inspection, monitoring, and diagnostics reduce downtime and inspection time while protecting reliability and quality.

Not every machine needs every capability. Flexibility should match the production requirement and actual operating conditions.

Even rigid high-volume systems can incorporate flexible elements. CNC cells or machines with interchangeable spindle heads can improve product adaptability. Buffers in rigid transfer systems can decouple sections so that one unit failure does not stop the entire line.
