Titanium additive manufacturing uses lasers, electron beams, or electric arcs to build complex near-net-shape components. This guide compares selective laser melting, laser metal deposition, electron-beam powder-bed fusion, and wire arc additive manufacturing by accuracy, deposition rate, feedstock cost, residual stress, build size, surface finish, and post-processing needs. It also describes representative Ti-6Al-4V, Ti-17, and Ti-6Al-2Zr-1Mo-1V microstructures, cryogenic behavior, thermal banding, and future directions involving process monitoring, high-temperature alloys, titanium-matrix composites, and TiB or TiC reinforcement for highly demanding industrial components.
Titanium alloys combine high specific strength, corrosion resistance, and high-temperature capability, but conventional processing is costly and difficult. Additive manufacturing builds near-net-shape components layer by layer, making it attractive for complex aerospace and medical parts. The principal energy sources are lasers, electron beams, and electric arcs.

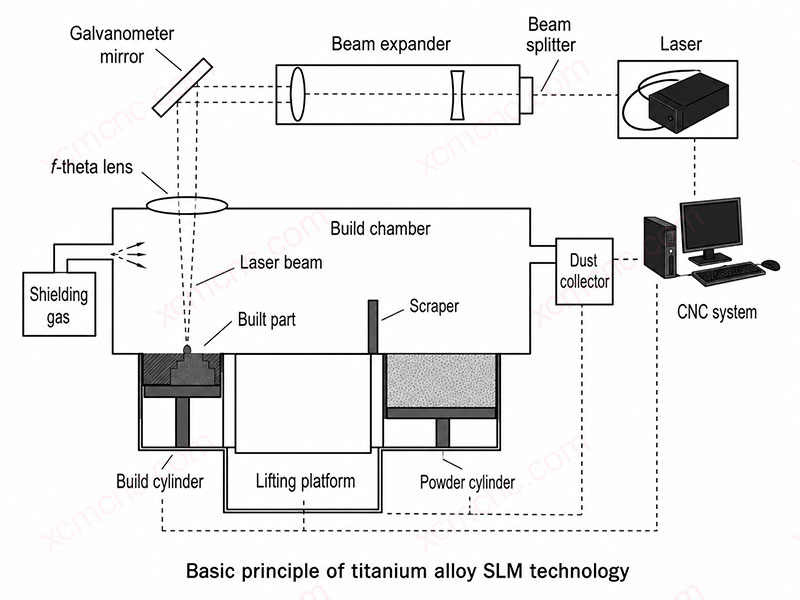

Selective laser melting uses a focused laser to melt successive powder-bed layers according to sliced model data. After one layer solidifies, the build platform lowers, fresh powder is spread, and the cycle repeats.

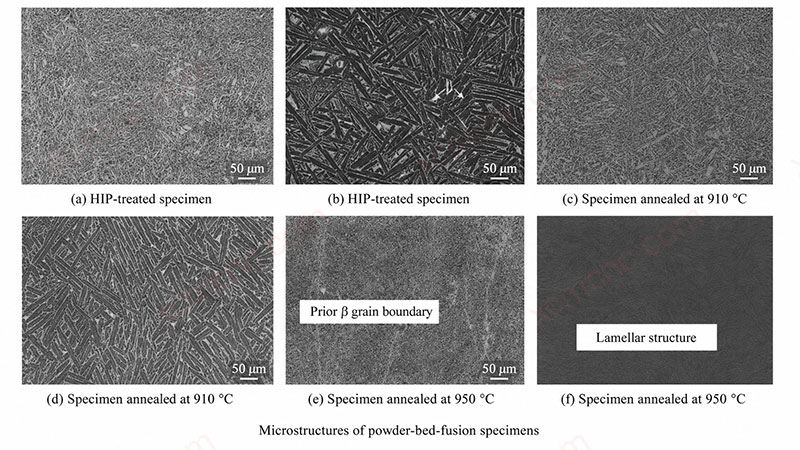

Process parameters such as laser power, scan speed, layer thickness, hatch spacing, and scan strategy control density, defects, residual stress, and texture. A study of Ti-6Al-4V cited in the source reports that full annealing at 840°C for 2 h changes the as-built microstructure and improves its uniformity.

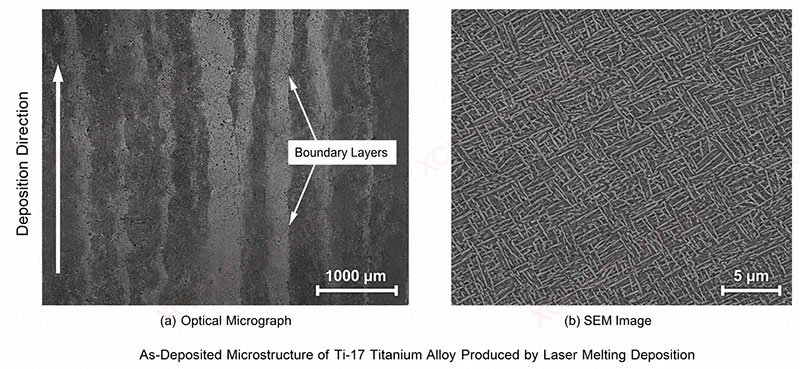

Laser metal deposition feeds powder or wire directly into a laser-created melt pool. It can build larger features and repair expensive components, but deposition accuracy and surface quality are generally lower than powder-bed fusion. Rapid directional solidification can produce coarse columnar prior-beta grains and a basketweave structure, as shown for Ti-17.
Laser processes offer high precision and material utilization, but powder cost, residual stress, limited build size, process stability, and the need for post-processing remain constraints.

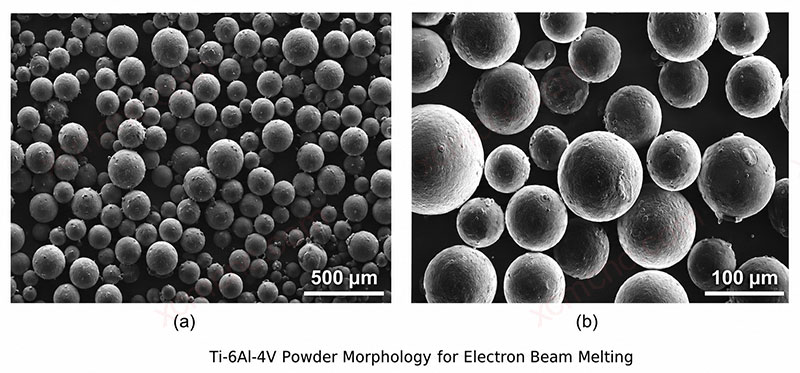

Electron-beam powder-bed fusion operates in vacuum and preheats the powder bed, reducing thermal gradients and residual stress. It is well suited to reactive titanium alloys and can achieve high build rates, although surface finish and dimensional accuracy are generally lower than laser powder-bed fusion.
The source reports that powder-bed-fused Ti-6Al-4V can retain good cryogenic ductility, with elongation of about 20% at 20 K and 29% at 77 K, and relates the behavior to deformation twinning.

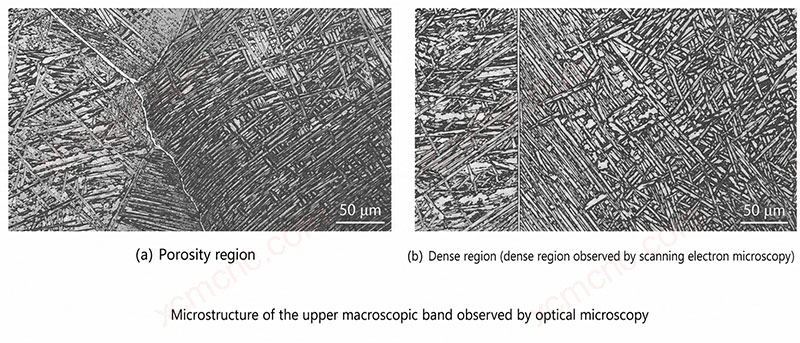

Wire arc additive manufacturing uses an electric arc and wire feedstock. Its high deposition rate and low feedstock cost suit large structural parts, but heat input is high, dimensional accuracy is lower, and substantial machining may be required. The thermal cycle can create macroscopic bands and heterogeneous microstructures in Ti-6Al-2Zr-1Mo-1V deposits.
| Process | Main advantage | Main limitation | Typical fit |
|---|---|---|---|
| Laser powder-bed fusion | High detail and accuracy | Powder cost, residual stress, and limited build volume | Small complex parts |
| Laser metal deposition | Flexible deposition and repair | Lower resolution and surface quality | Repair and medium-to-large features |
| Electron-beam powder-bed fusion | Vacuum processing and lower residual stress | Rougher surface and lower detail | Reactive alloys and production builds |
| Wire arc additive manufacturing | High deposition rate and low wire cost | High heat input and heavy finish machining | Large structural preforms |
Future work is moving toward titanium-matrix composites, alloys for service above 600°C, and nanoscale reinforcements such as TiB and TiC. Reliable monitoring, simulation, defect control, and process-specific design rules will be essential for broader industrial adoption.
