Cost-Effective Tool Steel CNC Prototype Machining

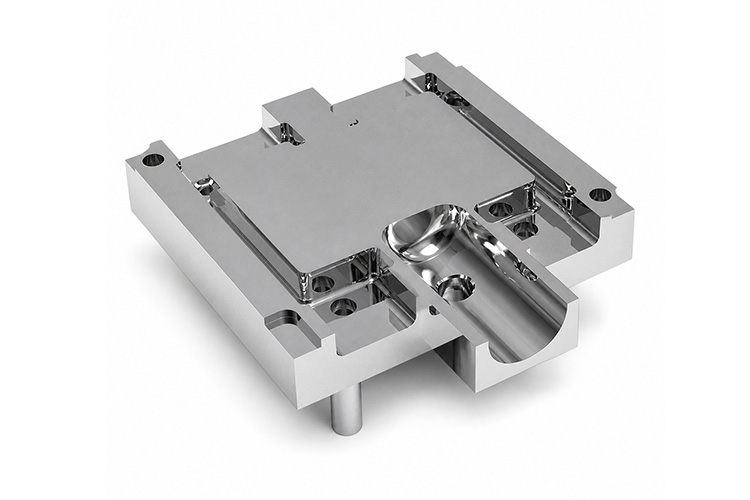

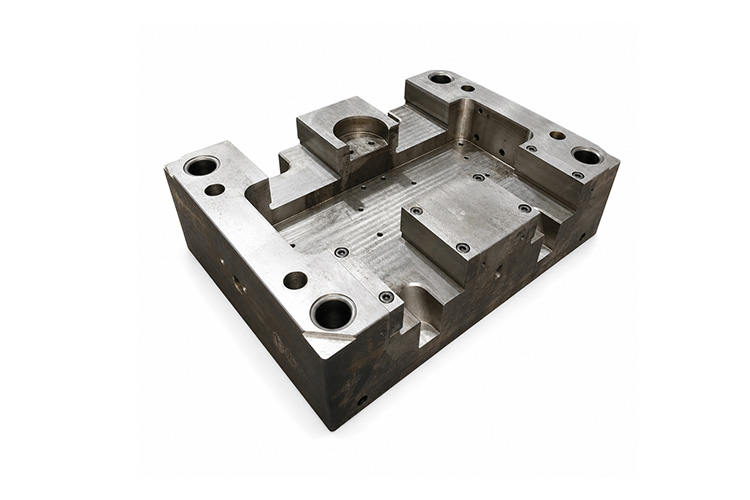

Overview
XCM CNC supports tool steel CNC functional samples and pilot builds with production-level tolerance, sample lead time commonly reviewed in the 3-7 day range, and MOQ from 1 piece.
Using machines such as DMG 80mono and Mazak I-100S under ISO 9001 and IATF 16949 systems, the prototype stage can validate wear behavior, heat-treatment route, and grinding allowance for SKD11, DC53, S136, or P20 parts. This route suits inserts, locating parts, wear blocks, and test-fixture samples that need approval before pilot production begins.
Key Capabilities
Machining Parameters and Tolerances
- Materials: SKD11, DC53, S136, P20; grade validated on sample before production commitment
- Tolerance: +/-0.003 mm (+/-0.00012 inch), IT5 or IT6 accuracy, +/-0.01 mm shaft/bore fits; h6/H7 available
- Surface Finish: Ra 3.2 um milled, Ra 1.6 um fine milled, Ra 0.8 um turned/honed, Ra 0.4 um ground datum faces
- GD&T: Coaxiality 0.012 mm, position 0.015 mm, perpendicularity 0.02 mm/1000 mm, roundness 0.006 mm, runout 0.01 mm
- Max Size: 3-axis milling 3000 x 1600 x 1400 mm; turning diameter 1250 x length 2000 mm
- Heat Treatment: Quenching, tempering, and post-hardening finish sequence by drawing review
- Thread: M1.4 to M220; NPT, BSP, G, PT pipe threads available
- Prototype: MOQ 1 piece; sample lead time 3-7 days; same tolerance as production
Prototype Verification of Fit Bores and Wear Faces
The core sample targets on tool steel prototypes are fit bores, wear contacts, and locating datums. At sample stage, fit bores can follow H7, position can be reviewed around 0.015 mm, and wear-face roughness can be divided around Ra 0.8-0.4 um using the same tolerance standard intended for later production. Hexagon CMM records the key dimensions so the decision to move into pilot production is based on measured data.
Heat-Treatment Route and Grinding Allowance Validation on Samples
Prototype work can validate heat-treatment sequence and finish allowance before the production route is fixed. P20 pre-hard samples may go straight into machining, while SKD11 or DC53 samples usually reserve around 0.05-0.1 mm finish stock so size can be restored after heat treatment. Sample recheck data is then compared against the drawing target before the finish plan is approved for later batches.
Edge and Chip-Slot Structure Review Before Pilot Run
Punches, inserts, and slitting-tool holders often need edge radius, chip-slot width, and chamfer structure confirmed on the prototype first. Narrow slots can be reviewed around 0.3 mm, cavities around 4:1 depth-to-width ratio, and inside radii around R0.5 mm so machining feasibility and tool wear are understood before pilot release. Once approved, the same tool selection and cutting logic can move into pilot work.
Sample-to-Pilot Handoff Keeps Revision and Inspection Records
After sample approval, the revision log, heat-treatment route, finish method, and inspection data move into the pilot file set together. CMM dimensions, roughness values, and go-no-go gauge results become the baseline for the next stage, while structure changes found during sampling are written back into the drawing before the first small batch starts.
Specifications
| Product Name | Cost-Effective Tool Steel Prototype Parts |
|---|---|
| Manufacturer | XCM CNC |
| Factory Location | Shenzhen, Guangdong, China |
| Quality System | ISO 9001, ISO 13485, IATF 16949, GJB9001C |
| Machining Process | CNC milling, CNC turning, drilling, tapping, and sample finishing review |
| Material | Tool Steel |
| Material Grade | SKD11, DC53, S136, P20 selected by wear target and pilot route |
| Tolerance | +/-0.003 mm (+/-0.00012 inch), IT5 or IT6 accuracy, +/-0.01 mm shaft-bore fits; h6-H7 available |
| Surface Roughness | Ra 1.6 um functional faces and Ra 0.4 um ground faces by drawing requirement |
| Surface Treatment | Heat treatment and protective finish for samples by drawing review |
| Inspection | Dimensional inspection, sample review, and post-process report by order requirement |
| Application | Prototype inserts, fixture samples, wear test parts, and pilot tooling components |
| Key Features | Cutting edges, fit bores, wear faces, chip slots, and grinding allowance validation |
| Critical QC Requirements | Sample key-dimension recheck, post-heat-treatment review, revision records, and pilot handoff documentation |
| Batch Range | 1 piece MOQ; sample lead time 3-7 days; same tolerance as production |
| MOQ | 1 Piece |
| Typical Lead Time | 10-15 business days after drawing review |
| Drawing Formats | STEP, IGS, DWG, PDF, X_T |
| Heat Treatment | By drawing review |
| Critical Tolerance Control | Key fit and wear surfaces rechecked after sample revisions |
Applications
Prototype Punches and Inserts for Stamping Tools
Typical Parts: Punch prototype, insert sample, forming block prototype
Tool steel prototypes are useful for checking edge condition, wear path, and pre- and post-heat-treatment allowance before a full tooling route is released. CNC samples can quickly confirm slots, fit surfaces, and cleanup requirements so revision data is available before pilot production starts.
Wear Jaws, Locating Pins, and Guide Blocks for Automation Samples
Typical Parts: Gripper jaw sample, locating pin sample, guide block sample
Automation wear parts often need prototype validation of clamping force, repeat positioning, and contact-face wear, and tool steel gives a more realistic material response than softer substitutes. The sample stage can confirm grade, supply condition, and finish strategy before the route moves into small-batch fixture production.
Wear-Resistant Samples for Gauges and Test Fixtures
Typical Parts: Gauge datum sample, probe sample, test clamp block
Gauge-related samples depend on stable datums and durable contact points, and tool steel helps validate dimensional stability before repeat small-batch work. CNC machining can keep locating bores, contact faces, and chamfers in the sample so approval flows directly into the next order stage.
Prototype Tooling for Batteries and Connector Stamping
Typical Parts: Slitting-tool holder sample, connector stamping insert, pressure pad
Battery and connector tooling prototypes often involve narrow slots, small cutting edges, and high-frequency wear paths, making tool steel a useful validation material. The sample stage should record heat-treatment route and geometry changes before pilot release is approved.
Why Choose Us
System Control Supports Fast Sample Response
XCM CNC manages tool steel sample projects under ISO 9001, ISO 13485, IATF 16949, and GJB9001C systems across equipment from DMG, Mazak, Matsuura, Brother, and other brands. For prototype work, that helps keep the route from drawing review to reinspection within a 3-7 day sample window while holding the same control logic used later in production.
Size Coverage Lets Full-Scale Routes Be Tested at Prototype Stage
Three-axis travel reaches 3000 x 1600 x 1400 mm and turning diameter reaches 1250 mm. For insert, wear-block, and fixture-base samples, that range makes it possible to test the real process route at full size instead of relying on scaled or segmented trials.
Tiered Equipment Strategy for Cost and Precision
XCM CNC uses CNC resources from mainland China, Taiwan, Japan, and Europe or the US. Lower-tolerance operations can run on domestic or Taiwan machines, while tighter features move to imported platforms such as DMG or Mazak only where sample accuracy requires it.
Samples Use the Same Tolerance and Inspection Logic as Production
Tool steel samples are machined with the same equipment, tooling logic, and inspection flow intended for later production. Features such as H7 bores, 0.015 mm position, and Ra 0.4 um wear faces can therefore be validated on the sample before any pilot batch is released.
Sample Revision Records Transfer Directly into Pilot Production
Geometry changes, allowance updates, and surface-grade revisions found during sampling are recorded and written back into the drawing. When pilot production starts, the approved sample route, tool selection, and inspection plan can move forward without being rebuilt from scratch.
FAQ
How fast can you deliver tool steel CNC prototypes?
Tool steel prototype lead time is commonly reviewed in the 3-7 day range, depending on drawing complexity, grade, quantity, and heat-treatment requirements. Urgent work can be evaluated for priority scheduling after feasibility review.
Do tool steel prototypes use the same tolerance as production parts?
Yes. Samples follow the same tolerance and inspection logic intended for production, so features such as H7 bores, 0.015 mm position, and Ra 0.4 um wear faces can be validated before the route moves into a small batch. MOQ can start from 1 piece.
Which tool steel grade is better for a prototype insert or wear part?
SKD11 and DC53 are common for wear resistance and high-hardness sample work, S136 fits surface-stability or corrosion-sensitive structures, and P20 pre-hard stock is useful for quick validation without later quenching. Grade choice should still match both the wear target and the intended production route.
Can you prototype a tool steel part before final heat treatment or finish correction?
Yes. Prototype work can run through heat-treatment sequence and finish allowance planning first so quench distortion and later grinding recovery are understood before pilot production starts. That is especially useful on inserts, cutting edges, and wear-face structures.
How do you move from tool steel prototype to small-batch production?
After the sample is approved, revision records, heat-treatment route, finish method, inspection data, and protection notes move into the pilot file set together. The approved sample route becomes the baseline so the next stage does not need to restart technical confirmation.
Can you verify grinding allowance and locating features on tool steel prototypes first?
Yes. Prototype inserts, locating pins, and wear blocks can be used to validate grinding allowance, fit-bore accuracy, and edge structure before the final route is locked. That review shows whether the finish plan is suitable for repeat batch execution.
