How Is Copper Alloy Hardness Tested?

Brinell, Rockwell, Vickers, and Webster hardness tests are commonly used for copper and copper alloys. The appropriate method depends on alloy type, hardness range, material thickness, product form, and whether laboratory or on-site inspection is required.

Brinell Hardness Testing

Brinell testing is widely used for copper alloys with medium to high hardness because it produces a relatively large indentation that represents a larger material area. The method is commonly performed according to ASTM E10 or ISO 6506.

The selected Brinell test condition depends on material hardness, thickness, and product requirements. The indentation diameter must remain within the recommended range defined by the applicable test standard.

Rockwell Hardness Testing

Rockwell testing is frequently used for copper alloys because it provides fast measurements with minimal surface preparation. Common scales depend on alloy condition and thickness.

Rockwell testing is generally performed according to ASTM E18 or ISO 6508. The selected scale should match the material thickness and expected hardness range.

Vickers Hardness Testing

Vickers hardness testing is suitable for thin copper alloy sections, small components, and localized hardness measurements where larger Brinell or Rockwell indentations are unsuitable.

The method is commonly performed according to ASTM E384 or ISO 6507. Micro-Vickers testing is especially useful for heat-treated layers, coatings, and precision components with limited test areas.

Webster Hardness Testing for Copper Products

Webster hardness testing is a portable method widely used for rapid inspection of copper alloy sheets, strips, tubes, and extruded products. It is particularly useful for production environments where quick on-site hardness verification is required.

For copper and copper alloys, Webster hardness testers are commonly used with portable instruments such as HW series testers. The applicable test range depends on the specific instrument model, alloy condition, and material thickness.

When testing thin copper products, the surface should be clean, flat, and free from coatings, heavy oxidation, or contamination. Proper support may be required for thin sections to avoid inaccurate readings.

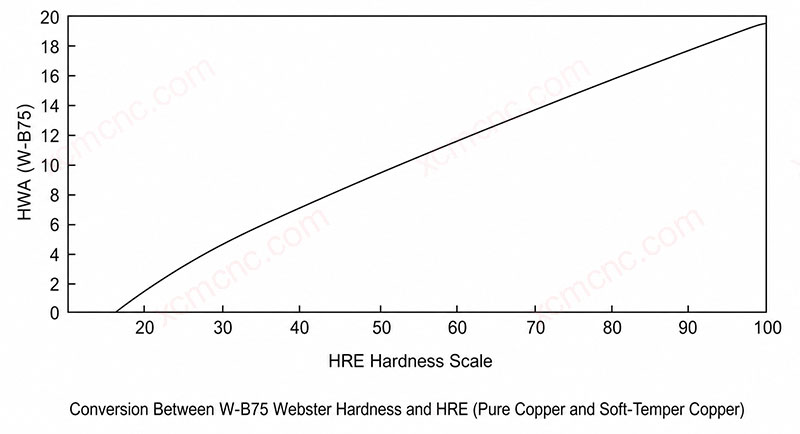

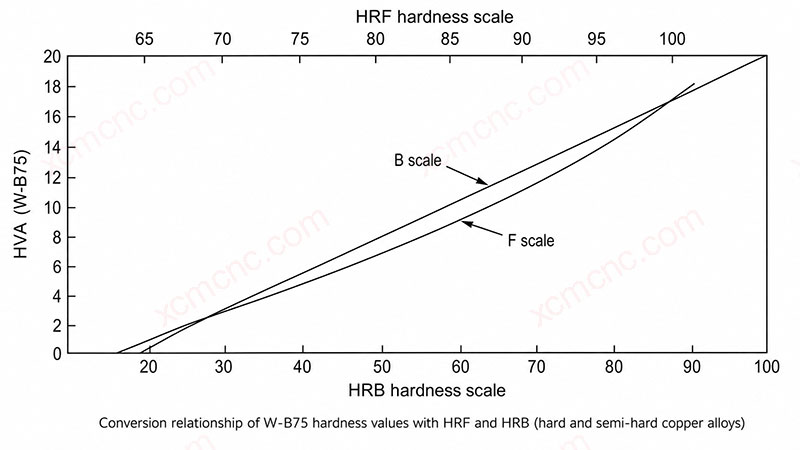

Hardness conversion charts, such as Webster-to-Rockwell conversions, are only approximate because copper alloys have different compositions, microstructures, and work-hardening conditions. For quality acceptance, the hardness scale specified in the applicable material standard or customer drawing should always be used as the primary reference.
